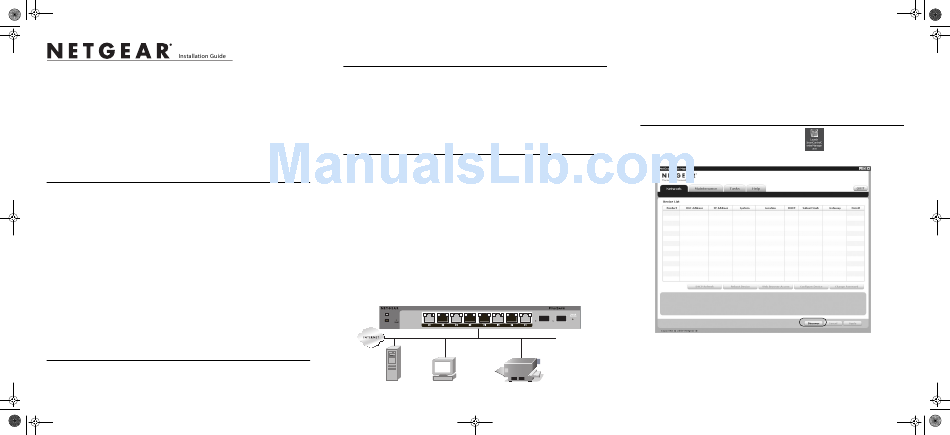

ProSafe 8 Port Gigabit PoE Smart Switch™ with 2 fiber SFP GS110TP

Start Here

Follow these instructions to set up your smart switch. Before proceeding with the
smart switch installation, familiarize yourself with the contents of the Resource
CD, especially the reference manuals on your Resource CD.
First, Verify Package Contents
®
• ProSafe GS110TP Smart Switch
• Rubber footpads for tabletop installation
• Power cord
• 48V/1.25A power adapter
• Wall-mount kit
• Installation Guide
• Smart Switch Resource CD that includes the NETGEAR Device Manager
Utility (Smart Control Center) and GS110TP Hardware Installation Guide. (A
link to the online GS110TP Software Administration User's Manual is on the
Resource CD.)
• Warranty/Support Information Card.
Then, Prepare to Install Your Smart Switch
Prepare a PC with an Ethernet adapter and a CD ROM drive.
Next, Install the NETGEAR Device Manager Utility
(Smart Control Center) on a PC
1. Insert the Resource CD into your CD drive.
2. Run the Setup program to install the Smart Control Center utility. The
Installation Wizard will guide you through the installation.
Next, Connect Your Smart Switch in the Correct
Order
These instructions assume you are using DHCP in your network. If you are using
static IP addressing in your network, configure the switch IP address before
connecting it to your network. In the absence of a DHCP server, the switch will
default to 192.168.0.239 for its IP address.
To configure the switch before connecting it to your network:
1. Set up the PC with a Static IP address in the 192.168.0.x subnet, and connect
the PC to the switch. Then, use the Smart Control Center utility to configure
the switch.
2. Connect each PC to an RJ-45 network port on the switch front panel.
Use category 5 (Cat5) unshielded twisted-pair (UTP) cable terminated with an
RJ-45 connector to make these connections.
Smart Switch
GS110TP
Link/Act PoE
Power
Link/Act Mode
Green = Link at 1000M
Yellow = Link at 100M/10M
PoE Max
Blink = ACT
PoE Mode
Green = PoE Powered
Yellow = PoE Fault
Servers Computers
3. Connect the switch to your network.
4. Power on the switch.
5. Verify that the PC with the Smart Control Center utility is on the same subnet
as the switch.
Now, Configure the Switch with the NETGEAR
Device Manager Utility (Smart Control Center)
1. Double-click the Smart Control Center icon
Windows Start menu Programs to run the utility and view this screen.
GS110TP
Link/Act 9F Link/Act 10F
2. Click Discover to find your switch in the network.
Printers
on your desktop or in
