NETGEAR ProSAFE GS105Ev2 User Manual
Gigabit web managed (plus) switches
Hide thumbs
Also See for ProSAFE GS105Ev2:
- User manual (69 pages) ,
- Installation manual (2 pages) ,
- Installation (2 pages)
Related Manuals for NETGEAR ProSAFE GS105Ev2
Summary of Contents for NETGEAR ProSAFE GS105Ev2

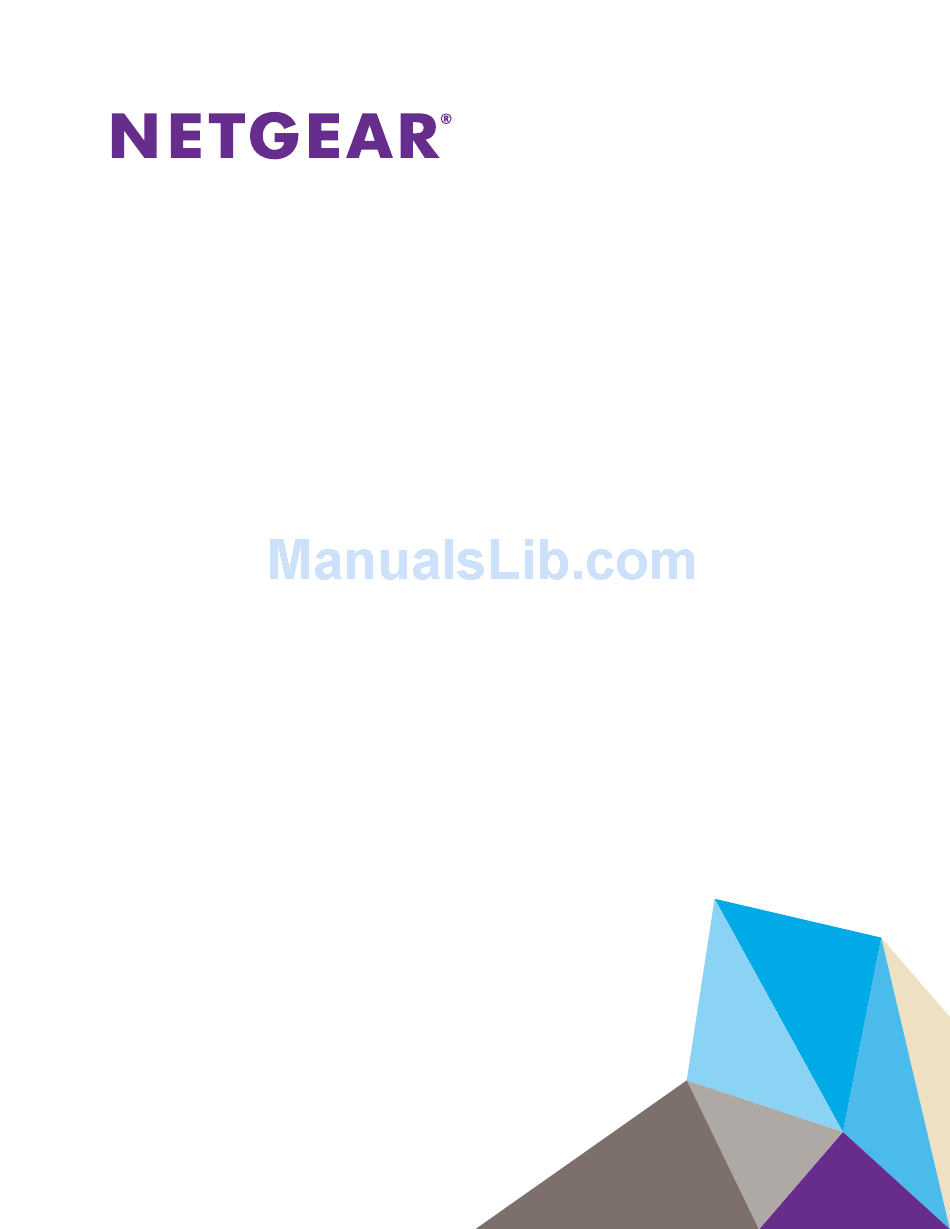

- Page 1 ProSAFE® Gigabit Web Managed (Plus) Switches Us e r Manual GS1 0 5 Ev 2 GS1 0 5 PE GS1 0 8 Ev 3 GS1 0 8 PEv3 GS1 1 6 Ev 2 JGS 5 1 6 PE JGS 5 2 4 Ev2 JGS 5 2 4 PE August 2016 202-11700-01...
- Page 2 Thank you for purchasing this NETGEAR product. You can visit www.netgear.com/support to register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that you use only official NETGEAR support resources. Conformity For the current EU Declaration of Conformity, visit http://kb.netgear.com/app/answers/detail/a_id/11621.
-
Page 3: Table Of Contents
Contents Chapter 1 Get Started Supported Switches ..........7 Configure the Switch . - Page 4 ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Set Up Broadcast Filtering ....33 Use the ProSAFE Plus Utility to Set Up Broadcast Filtering ....34 Chapter 4 Use VLANS for Traffic Segmentation VLAN Overview .
- Page 5 ProSAFE Gigabit Web Managed (Plus) Switches Upgrade the Firmware ..........64 Use Browser-Based Access to Upgrade the Firmware .
-
Page 6: Chapter 1 Get Started
Note: Firmware updates with new features and bug fixes are made available from time to time at downloadcenter.netgear.com. You can check for and download new firmware manually. If the features or behavior of your product does not match what is described in this... -
Page 7: Supported Switches
ProSAFE Gigabit Web Managed (Plus) Switches Supported Switches The ProSAFE Gigabit Web Managed (Plus) Switch Series User Manual supports the following switch models: • GS105Ev2 • GS105PE • GS108Ev3 • GS108PEv3 • GS116Ev2 • JGS516PE • JGS524Ev2 • JGS524PE Configure the Switch ProSAFE Web Managed (Plus) Switches are Plug-and-Play, so they can be used without any configuration. -
Page 8: Access A Switch That Is Off-Network
Note: If you are unsure how to do this, visit the support website at netgear.com/support and search for Static IP address on computer. Plug the switch into a power outlet and then connect your computer to the switch using an Ethernet cable. -
Page 9: Access The Switch With The Prosafe Plus Configuration Utility
The utility is located on the resource CD that came with the switch. You can also visit netgear.com/support/product/PCU to download the utility. Install the ProSAFE Plus Utility Note: The ProSAFE Plus Utility requires WinPcap and Adobe Air. -
Page 10: Change The Password
ProSAFE Gigabit Web Managed (Plus) Switches To access and configure the switch using the ProSAFE Plus Utility: Cable the switch to a network with a router or DHCP server that manages IP address. Power on the switch. The DHCP server assigns the switch an IP address. Connect your computer to the same network as the switch. -
Page 11: Use Browser-Based Access To Change The Password
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Change the Password To change the password: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. - Page 12 ProSAFE Gigabit Web Managed (Plus) Switches Enter the switch’s password in the password field. The switch’s default password is password. The Switch Status page displays. Select System > Maintenance > Change Password. The Change Password page displays. In the Old Password field, type the current password for the switch. Type the new password in the New Password field and in the Re-type New Password field.
-
Page 13: Chapter 2 Manage Network Settings
Manage Network Settings This chapter covers the following topics: • Specify IP Address Settings for the Switch • Manage Multicast Traffic With IGMP Snooping • Set Up Static Link Aggregation Groups... -
Page 14: Specify Ip Address Settings For The Switch
ProSAFE Gigabit Web Managed (Plus) Switches Specify IP Address Settings for the Switch By default, the switch IP address works as follows: • If you cable the switch to a network with a DHCP server before you power on the switch, the DHCP server assigns an IP address to the switch when the switch is powered on. -
Page 15: Use The Prosafe Plus Utility To Specify The Switch Ip Address
ProSAFE Gigabit Web Managed (Plus) Switches The IP Address, Subnet Mask, and Gateway Address fields are enabled. Enter the IP address, subnet mask, and if available, the gateway address. Click the Apply button. Your settings are saved. Use the ProSAFE Plus Utility to Specify the Switch IP Address ... -
Page 16: Manage Multicast Traffic With Igmp Snooping
ProSAFE Gigabit Web Managed (Plus) Switches Manage Multicast Traffic With IGMP Snooping Internet Group Management Protocol (IGMP) snooping allows a switch to forward multicast traffic intelligently on the switch. Multicast IP traffic is traffic that is destined to a host group. Host groups are identified by class D IP addresses, which range from 224.0.0.0 to 239.255.255.255. -
Page 17: Use The Prosafe Plus Utility To Customize Igmp Snooping
ProSAFE Gigabit Web Managed (Plus) Switches Make sure that the IGMP Snooping Status Enable radio button is selected. By default, the Enable radio button is selected. Make sure that a VLAN ID between 1 and 4094 is stated in the VLAN ID Enabled for IGMP Snooping field. - Page 18 ProSAFE Gigabit Web Managed (Plus) Switches Enter the switch’s password in the password field. The switch’s default password is password. The Switch Status page displays. Select System > Multicast. Select the IGMP Snooping Status Enable radio button. (Optional) Select the Validate IGMPv3 IP header Enable radio button. Some network devices might not conform to the IGMPv3 standard.
-
Page 19: Use Browser-Based Access To Specify A Vlan For Igmp Snooping
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Specify a VLAN for IGMP Snooping You can specify a VLAN for IGMP snooping only if you enabled port-based or 802.1Q-based VLANs (see Chapter 4, Use VLANS for Traffic Segmentation). ... -
Page 20: Use The Prosafe Plus Utility To Specify A Vlan For Igmp Snooping
ProSAFE Gigabit Web Managed (Plus) Switches Use the ProSAFE Plus Utility to Specify a VLAN for IGMP Snooping You can specify a VLAN for IGMP snooping only if you enabled port-based or 802.1Q-based VLANs (see Chapter 4, Use VLANS for Traffic Segmentation). -
Page 21: Set Up Static Link Aggregation Groups
ProSAFE Gigabit Web Managed (Plus) Switches By default, if you enable IGMP snooping, snooping occurs on VLAN 1. However, you can enable snooping on any VLAN: • For port-based VLANs, you can enter a VLAN ID from 1 to the maximum number that you switch supports (5, 8, 16, or 24). - Page 22 ProSAFE Gigabit Web Managed (Plus) Switches The switch’s default password is password. The Switch Information page displays. Select System > LAG > LAG Membership. The previous figure is an example. Your switch might provide a larger number of ports. In the LAG ID menu, select the LAG ID. The number of LAGs that the switch supports depends on the model.
-
Page 23: Use The Prosafe Plus Utility Specify Lag Membership And Enable Lags
ProSAFE Gigabit Web Managed (Plus) Switches Use the ProSAFE Plus Utility Specify LAG Membership and Enable LAGs You must set up LAG membership before you can enable LAGs. To specify LAG membership and enable a LAG: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. - Page 24 ProSAFE Gigabit Web Managed (Plus) Switches Select the ID of the LAG for which you just set up the port membership. In the Admin Mode menu, select Enable. Click the APPLY button. Your settings are saved. Manage Network Settings...
-
Page 25: Chapter 3 Optimize Performance With Quality Of Service
Optimize Performance With Quality of Service This chapter covers the following topics: • Enable 802.1p/DSCP-Based Quality of Service • Configure Port-Based Quality of Service • Set Up Rate Limiting • Set Up Broadcast Filtering... -
Page 26: Enable 802.1P/Dscp-Based Quality Of Service
ProSAFE Gigabit Web Managed (Plus) Switches Enable 802.1p/DSCP-Based Quality of Service Note: 802.1p-based QoS is available on all models. DSCP-based QoS is available on models GS105Ev2, GS105PEv2, GS108Ev3, and GS108PEv3 only. 802.1p/DSCP-based priority uses a field in the data packet header that identifies the class of data in the packet (for example, voice or video). -
Page 27: Use The Prosafe Plus Utility To Enable 802.1P/Dscp-Based Qos
ProSAFE Gigabit Web Managed (Plus) Switches The pop-up window closes. Click the Apply button. Your settings are saved. Use the ProSAFE Plus Utility to Enable 802.1p/DSCP-Based To enable 802.1p/DSCP-based QoS: Connect your computer to the same network as the switch. You can use a WiFi or wired connection. -
Page 28: Use Browser-Based Access To Configure Port-Based Qos
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Configure Port-Based QoS To configure port-based QoS: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 29: Use The Prosafe Plus Utility To Configure Port-Based Qos
ProSAFE Gigabit Web Managed (Plus) Switches The previous figure is an example. Your switch might provide more or less ports. The 802.1p/DSCP-based radio button is not supported on all models and therefore might not show on the page. To set the port priority for one or more ports, do the following: a. -
Page 30: Set Up Rate Limiting
ProSAFE Gigabit Web Managed (Plus) Switches The previous figure is an example. Your switch might provide more or less ports. The 802.1p/DSCP-based radio button is not supported on all models and therefore might not show on the page. To set the port priority for one or more ports, do the following: a. -
Page 31: Use Browser-Based Access To Set Up Rate Limiting
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Set Up Rate Limiting To set up rate limiting: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 32: Use The Prosafe Plus Utility To Set Up Rate Limiting
ProSAFE Gigabit Web Managed (Plus) Switches Use the ProSAFE Plus Utility to Set Up Rate Limiting To set up rate limiting: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 33: Set Up Broadcast Filtering
ProSAFE Gigabit Web Managed (Plus) Switches You can set a rate from 512 Kbit/s to 512 Mbit/s. By default, no limit is set. c. In the Egress Rate menu, select the maximum rate. You can set a rate from 512 Kbit/s to 512 Mbit/s. By default, no limit is set. d. -
Page 34: Use The Prosafe Plus Utility To Set Up Broadcast Filtering
ProSAFE Gigabit Web Managed (Plus) Switches Click the Apply button. Your settings are saved and the Storm Control Rate table displays. The previous figure is an example. Your switch might provide more or less ports. Set the storm control rate by doing the following: a. - Page 35 ProSAFE Gigabit Web Managed (Plus) Switches Enter the switch’s password in the password field. The switch’s default password is password. The Switch Status page displays. Select QoS > Broadcast Filtering. The Broadcast Filtering page displays. If this is the first time that you are setting up broadcast filtering, select the Enable radio button and continue with Step Otherwise, see...
-
Page 36: Chapter 4 Use Vlans For Traffic Segmentation
Use VLANS for Traffic Segmentation This chapter covers the following topics: • VLAN Overview • Create Basic Port-Based VLANs • Assign Ports to Multiple Port-Based VLANs • Create 802.1Q-Based VLANs in a Basic Configuration • Create 802.1Q-Based VLANs in an Advanced Configuration •... -
Page 37: Vlan Overview
ProSAFE Gigabit Web Managed (Plus) Switches VLAN Overview Virtual LANs (VLANs) are made up of networked devices that are grouped logically into separate networks. You can group ports on a switch to create a virtual network made up of the devices connected to the ports. Ports can be grouped in VLANs using port-based or 802.1Q criteria: •... -
Page 38: Use The Prosafe Plus Utility To Create Basic Port-Based Vlans
ProSAFE Gigabit Web Managed (Plus) Switches Select VLAN. The Basic Port-based VLAN Status page displays. If this is the first time that you are accessing the Basic Port-based VLAN Status page or if you are changing the VLAN assignment method, select the Enable radio button and continue with Step Otherwise, see... - Page 39 ProSAFE Gigabit Web Managed (Plus) Switches Double-click the ProSAFE Plus Utility icon. The Switch Selection page displays a list of Web Managed (Plus) switches that it discovers on the local network. Select the switch. If you do not see the switch, click the REFRESH button. Click the APPLY button.
-
Page 40: Assign Ports To Multiple Port-Based Vlans
ProSAFE Gigabit Web Managed (Plus) Switches Assign Ports to Multiple Port-Based VLANs A port-based VLAN configuration lets you assign ports on the switch to a VLAN. The number of VLANs is limited to the number of ports on the switch. In an advanced port-based VLAN configuration, you can assign a single port to multiple VLANs. -
Page 41: Use The Prosafe Plus Utility To Assign Ports To Multiple
ProSAFE Gigabit Web Managed (Plus) Switches The previous figure is an example. Your switch might provide more or less ports. In the VLAN identifier menu, select the VLAN. Select the ports that you want to add to the VLAN by doing the following: a. - Page 42 ProSAFE Gigabit Web Managed (Plus) Switches Double-click the ProSAFE Plus Utility icon. The Switch Selection page displays a list of Web Managed (Plus) switches that it discovers on the local network. Select the switch. If you do not see the switch, click the REFRESH button. Click the APPLY button.
-
Page 43: Create 802.1Q-Based Vlans In A Basic Configuration
ProSAFE Gigabit Web Managed (Plus) Switches Select the ports that you want to add to the VLAN by doing the following: a. (Optional) In the Group Operation menu, select either Select All or Remove All. All ports are either added to the VLAN or removed from the VLAN. b. -
Page 44: In A Basic Configuration
ProSAFE Gigabit Web Managed (Plus) Switches If this is the first time that you are accessing the Basic 802.1Q VLAN Status page or if you are changing the VLAN assignment method, select the Enable radio button and continue with Step Otherwise, see Step A pop-up window opens, informing you that the current VLAN settings will be lost. - Page 45 ProSAFE Gigabit Web Managed (Plus) Switches Select the switch. If you do not see the switch, click the REFRESH button. Click the APPLY button. You are asked to enter the password for the switch. Enter the switch’s password in the password field. The switch’s default password is password.
-
Page 46: Create 802.1Q-Based Vlans In An Advanced Configuration
ProSAFE Gigabit Web Managed (Plus) Switches Create 802.1Q-Based VLANs in an Advanced Configuration In an advanced 802.1Q-based VLAN configuration, you can assign ports on the switch to a VLAN with an ID number in the range of 1–4093 and you can add tagged or untagged ports to a VLAN. -
Page 47: Use The Prosafe Plus Utility To Create 802.1Q-Based Vlans In An Advanced Configuration
ProSAFE Gigabit Web Managed (Plus) Switches The previous figure is an example. Your switch might provide more or less ports, all of which are members of VLAN 1 by default. In the VLAN ID field, enter a VLAN ID. You can enter a VLAN ID from 1 to 4093. Click the Add button. - Page 48 ProSAFE Gigabit Web Managed (Plus) Switches Enter the switch’s password in the password field. The switch’s default password is password. The Switch Status page displays. Select VLAN > 802.1Q > Advanced. The Advanced 802.1Q VLAN Status page displays. If this is the first time that you are accessing the Advanced 802.1Q VLAN Status page or if you are changing the VLAN assignment method, select the Enable radio button and continue with Step...
-
Page 49: Add Tagged Or Untagged Ports To An 802.1Q-Based Vlan
ProSAFE Gigabit Web Managed (Plus) Switches Add Tagged or Untagged Ports to an 802.1Q-Based VLAN After you define a VLAN ID using the advanced 802.1Q VLAN option (see Create 802.1Q-Based VLANs in an Advanced Configuration on page 46), you must add ports to the VLAN. -
Page 50: Use The Prosafe Plus Utility To Add Tagged Or Untagged Ports To An 802.1Q-Based Vlan
ProSAFE Gigabit Web Managed (Plus) Switches The previous figure is an example. Your switch might provide more or less ports. In the VLAN ID menu, select the VLAN. Select the ports that you want to add to the VLAN by doing the following: a. -
Page 51: Specify A Port Pvid For An 802.1Q-Based Vlan
ProSAFE Gigabit Web Managed (Plus) Switches Enter the switch’s password in the password field. The switch’s default password is password. The Switch Status page displays. Select VLAN > 802.1Q > Advanced > VLAN Membership. You can select VLAN Membership only if you already enabled the advanced 802.1Q VLAN option (see Create 802.1Q-Based VLANs in an Advanced Configuration page 46). -
Page 52: Use Browser-Based Access To Assign A Pvid To Ports
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Assign a PVID to Ports To assign a PVID to one or more ports: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 53: Use The Prosafe Plus Utility To Assign A Pvid To Ports
ProSAFE Gigabit Web Managed (Plus) Switches WARNING: Do not remove all ports from PVID 1, which is the management PVID. If you remove all ports from PVID 1, you cannot access the switch for management. In such a situation, to recover access to the switch, you must reset the switch to its factory defaults settings. - Page 54 ProSAFE Gigabit Web Managed (Plus) Switches The previous figure is an example. Your switch might provide more or less ports. Select one or more ports. Enter the PVID. You can enter a PVID only for a VLAN that already exists. WARNING: Do not remove all ports from PVID 1, which is the management PVID.
-
Page 55: Chapter 5 Manage And Monitor The Switch
Manage and Monitor the Switch This chapter covers the following topics: • Manage Flow Control • Manage the Port Speed • Enable Loop Detection • Manage Power Saving Options • Upgrade the Firmware • Reboot the Switch • Save the Switch Configuration •... -
Page 56: Manage Flow Control
ProSAFE Gigabit Web Managed (Plus) Switches Manage Flow Control Flow control works by pausing a port if the port becomes oversubscribed and dropping all traffic for small bursts of time during the congestion condition. You can enable or disable IEEE 802.3x flow control. By default, flow control is disabled. Use Browser-Based Access to Manage Flow Control ... -
Page 57: Use The Prosafe Plus Utility To Manage Flow Control
ProSAFE Gigabit Web Managed (Plus) Switches Use the ProSAFE Plus Utility to Manage Flow Control To manage flow control: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 58: Manage The Port Speed
ProSAFE Gigabit Web Managed (Plus) Switches Manage the Port Speed By default, the port speed on all ports is set automatically after the switch determines the speed using auto-negotiation with the link partner. You can select a specific port speed setting for each port, or disable a port by shutting it down manually. -
Page 59: Down A Port
ProSAFE Gigabit Web Managed (Plus) Switches • 10M Half. The port is forced to function at 10 Mbps with half duplex. • 10M Full. The port is forced to function at 10 Mbps with full duplex. • 100M Half. The port is forced to function at 100 Mbps with half duplex. •... -
Page 60: Enable Loop Detection
ProSAFE Gigabit Web Managed (Plus) Switches The previous figure is an example. Your switch might provide more or less ports. Note: To navigate to this page, select System > Status > Switch Status. For each port that you want to configure, in the Speed menu, select one of the following options: •... -
Page 61: Use The Prosafe Plus Utility To Enable Loop Detection
ProSAFE Gigabit Web Managed (Plus) Switches Select the Enable radio button. Click the Apply button. Your settings are saved. Use the ProSAFE Plus Utility to Enable Loop Detection To enable loop detection: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 62: Manage Power Saving Options
ProSAFE Gigabit Web Managed (Plus) Switches Manage Power Saving Options Note: Power saving options are available on models GS105Ev2, GS105PE, GS116Ev2, JGS516PE, JGS524Ev2, and JGS524PE. Depending on the power saving options that your switch model provides, you can manage the IEEE 802.3az Energy Efficient Ethernet (EEE) function, cable length power saving, or link-up and link-down power saving, or a combination of these features: •... -
Page 63: Use The Prosafe Plus Utility To Enable Power Saving Mode
ProSAFE Gigabit Web Managed (Plus) Switches Select the Enable button to enable the power saving mode. By default, the Disable radio button is selected. Click the Apply button. Your settings are saved. Use the ProSAFE Plus Utility to Enable Power Saving Mode ... -
Page 64: Upgrade The Firmware
Upgrade the Firmware You can check for the latest firmware version for your switch by visiting downloadcenter.netgear.com, entering your product model number in the Enter a Product Name/Model Number field, and clicking the magnifying glass to search. Read the new firmware release notes to find out if you must reconfigure the switch after upgrading. -
Page 65: Use The Prosafe Plus Utility To Upgrade The Firmware
Download the new firmware from the NETGEAR website. You can check for the latest firmware version for your switch by visiting downloadcenter.netgear.com, entering your product model number in the Enter a Product Name/Model Number field, and clicking the magnifying glass to search. -
Page 66: Reboot The Switch
ProSAFE Gigabit Web Managed (Plus) Switches If the firmware release notice specifies that you must reconfigure the switch, save the switch configuration settings. For more information about how to save the switch configuration, see Save the Switch Configuration on page 67. Select System >... -
Page 67: Use The Prosafe Plus Utility To Reboot The Switch
ProSAFE Gigabit Web Managed (Plus) Switches Select the check box. Click the Apply button. The switch reboots. Use the ProSAFE Plus Utility to Reboot the Switch To reboot the switch: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 68: Use Browser-Based Access To Save The Switch Configuration
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Save the Switch Configuration To save the switch configuration: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 69: Restore A Saved Switch Configuration
ProSAFE Gigabit Web Managed (Plus) Switches The Switch Status page displays. Select System > Maintenance > Save Configuration. The Save Configuration page displays. Click the BROWSE button. Select the location to save the configuration file (a .cfg file). Click the APPLY button. The switch configuration is saved. -
Page 70: Use The Prosafe Plus Utility To Restore A Saved Switch Configuration
ProSAFE Gigabit Web Managed (Plus) Switches Use the ProSAFE Plus Utility to Restore a Saved Switch Configuration To restore the switch configuration that you saved: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 71: Use The Prosafe Plus Utility To Restore Factory Settings
ProSAFE Gigabit Web Managed (Plus) Switches If you do not know the IP address of the switch, see Access the Switch Using a Web Browser on page 7. The login window opens. Enter the switch’s password in the password field. The switch’s default password is password. -
Page 72: Enable Port Mirroring
ProSAFE Gigabit Web Managed (Plus) Switches Enable Port Mirroring Port mirroring lets you mirror the incoming (ingress) and outgoing (egress) traffic of one or more ports (the source ports) to a predefined destination port. Use Browser-Based Access to Enable Port Mirroring ... -
Page 73: Use The Prosafe Plus Utility To Enable Port Mirroring
ProSAFE Gigabit Web Managed (Plus) Switches Click the Apply button. Your settings are saved. Use the ProSAFE Plus Utility to Enable Port Mirroring To enable port mirroring: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 74: View Switch Information
ProSAFE Gigabit Web Managed (Plus) Switches By default, mirroring is disabled. Click the APPLY button. Your settings are saved. View Switch Information You can view the switch product name (model), MAC address, firmware level, DHCP mode, and other network information. Use Browser-Based Access to View Switch Information ... -
Page 75: Use The Prosafe Plus Utility To View Switch Information
ProSAFE Gigabit Web Managed (Plus) Switches Use the ProSAFE Plus Utility to View Switch Information To view information about the switch: Connect your computer to the same network as the switch. You can use a WiFi or wired connection. Double-click the ProSAFE Plus Utility icon. -
Page 76: View The Port Statistics
ProSAFE Gigabit Web Managed (Plus) Switches View the Port Statistics For each switch port, you can view the bytes received, bytes sent, and cyclic redundancy check (CRC) error packets. Use Browser-Based Access to View and Clear the Port Statistics To view and clear the port statistics: Connect your computer to the same network as the switch. -
Page 77: Use The Prosafe Plus Utility To View And Clear The Port Statistics
ProSAFE Gigabit Web Managed (Plus) Switches Use the ProSAFE Plus Utility to View and Clear the Port Statistics To view and clear the port statistics: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 78: Chapter 6 Diagnostics And Troubleshooting
Diagnostics and Troubleshooting This chapter covers the following topics: • Use Browser-Based Access to Register Your Product • Test Cable Connections • Resolve a Subnet Conflict to Access the Switch... -
Page 79: Use Browser-Based Access To Register Your Product
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Register Your Product Registering your product allows you to receive email alerts and streamlines the technical support process. To register your product: Connect your computer to the same network as the switch. You can use a WiFi or wired connection. -
Page 80: Use Browser-Based Access To Test A Cable Connection
ProSAFE Gigabit Web Managed (Plus) Switches Use Browser-Based Access to Test a Cable Connection To test a cable connection: Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. -
Page 81: Resolve A Subnet Conflict To Access The Switch
ProSAFE Gigabit Web Managed (Plus) Switches The Switch Selection page displays a list of Web Managed (Plus) switches that it discovers on the local network. Select the switch. If you do not see the switch, click the REFRESH button. Click the APPLY button. You are asked to enter the password for the switch. - Page 82 ProSAFE Gigabit Web Managed (Plus) Switches Plug the switch’s power cord into an electrical outlet. The switch powers on. The network DCHP server discovers the switch and assigns it an IP address that is in the correct subnet for the network. Diagnostics and Troubleshooting...
-
Page 83: Appendix A Factory Default Settings
Factory Default Settings You can return the switch to its factory settings. Use the end of a paper clip or some other similar object to press and hold the Factory Defaults button on the front panel of the switch for at least two seconds.
