DRIVE
ENCLOSURE
USER
MANUAL

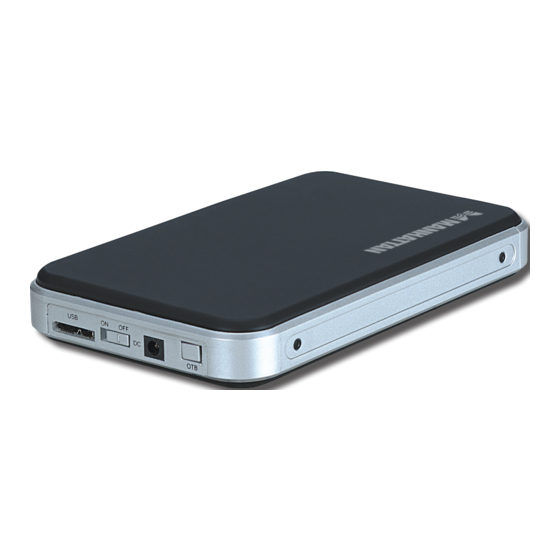

MODEL 130257
MAN-130257-UM-0911-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 130257 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manhattan 130257

Summary of Contents for Manhattan 130257

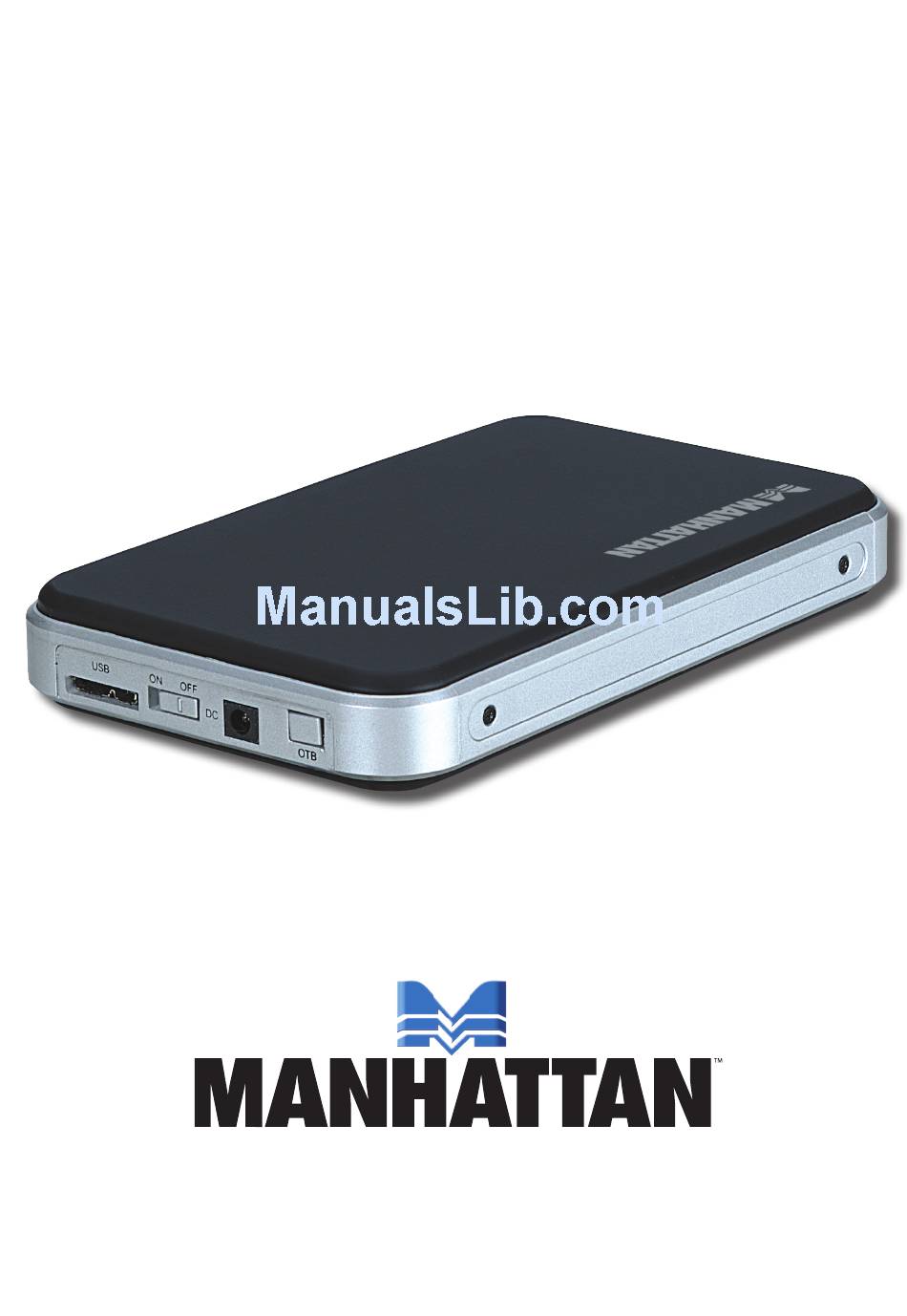

  • Page 1 DRIVE ENCLOSURE USER MANUAL MODEL 130257 MAN-130257-UM-0911-01...

  • Page 2: Hardware Installation

    With support for large-capacity 2.5-inch SATA drives and SuperSpeed USB (USB 3.0) data transfer rates of up to 5 Gbps (up to 1 TB for large-capacity drives), this MANHATTAN Drive Enclosure helps optimize high-performance personal computer storage applications. A convenient built-in, one-touch copy feature helps to quickly transfer, share and archive important data.

  • Page 3: Driver Installation

    DRIVER INSTALLATION Once the enclosure is connected to your PC, your system will automatically detect the new hardware and complete the setup, confirmed when “USB Mass Storage Device” displays in the Device Manager folder. SOFTWARE INSTALLATION These steps are for the installation of the convenient one-touch backup software. NOTE: This software doesn’t support Mac operating systems.
  • Page 4 3. On the subsequent Setup screen, click “Install” to proceed. 4. The final Setup screen will display a status bar to indicate the progress of the installation. When finished, the wizard will display an “Installation is completed!” message. Click “OK” to exit the wizard. 5.

  • Page 5: Creating Partitions

    CREATING PARTITIONS NOTE: If the hard drive you have placed in the enclosure (the drive that you are copying data to) has already been partitioned, you can proceed to the next section. 1. With the Drive Enclosure plugged into a USB port on your computer and powered on (see Hardware Installation above), right-click My Computer on your desktop and go to Manage.
  • Page 6 3. With the Format Partition screen displayed, select your preferred settings, then click “Next” to continue. OPTION: An alternative pathway for accessing the formatting options is through Start on your desktop, then All Programs / PCCloneEX / FNet FAT32 Format. The formatting details and instructions will appear on the screens that display.
  • Page 7 ONE-TOUCH BACKUP FUNCTION To use any of the features available with this function, be sure the drive enclosure is plugged into a USB port on your computer and powered on, and that a backup drive has been properly loaded in the enclosure. NOTE: Before backing up files for the first time using this device, it’s recommended that the function parameters be set on the File Backup Settings screen in the PC Clone EX program.

  • Page 8: Quick Launch

    Quick Launch The Quick Launch screen displays automatically when the PC Clone EX program is opened. From here, you can either continue through the quick file backup steps below or select one of the other menu options: File Backup (which offers more options than this simpler Quick Launch procedure), File Manager and File Backup Settings —...

  • Page 9: File Backup

    File Backup For options beyond just copying files, click on the File Backup icon. This presents restore (should the original files be lost or damaged) and delete options, as well. Backing Up Files 1. In the left-hand (Files Backup) window, select the folders/drives to be copied from the source device.
  • Page 10 2. When the “Are you going to back up?” prompt displays, click “Start.” 3. When the “Backup Finished!” message displays, click “OK.” The selected items will appear in the right-hand (USB Device) window.
  • Page 11 IMPORTANT: A root directory (FNet) folder will display in the USB Device window. This is where all the backed-up files are stored, so be careful not to delete it unintentionally. Restoring Files 1. In the event you need to copy files from the backup drive to the original source device (to replace lost or damaged originals, for example), select the items in the right-hand (USB Device) window.
  • Page 12 3. When the “Restore Finished!” message displays, click “OK.” The selected items will appear in the left-hand (File Backup) window. Deleting Files 1. Select a file (or files) you wish to delete in the USB Device window. 2. Right-click your mouse to display the “Delete select files” option. Select this option, and all highlighted files will be removed.

  • Page 13: File Manager

    File Manager File Manager allows files to be directly moved between two windows — the source device (File Backup on the left) and the backup drive (USB Device on the right). File Backup Settings Select your preferences on this screen before you begin backing up files. Options include creating a hotkey: a single command used to initiate the backup function.

  • Page 14: Specifications

    SPECIFICATIONS Standards and Certifications • USB 3.0 to SATA interface • CE • FCC • WEEE • RoHS General • ASM1051 chipset • SATA 7P + 15P internal data and power connections • USB 3.0 Standard-A to Micro-B cable, 100 cm (3.3 ft.) •...

  • Page 15: Waste Electrical And Electronic Equipment

    WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste.
  • Page 16 ITALIANO Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.

  • Page 17: Warranty Information

    ITALIANO: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. EN MÉXICO: Póliza de Garantía MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. •...

  • Page 18: Regulatory Statements

    REGULATORY STATEMENTS FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 19 Wszystkie nazwy handlowe i towarów są nazwami i znakami towarowymi zastrzeżonymi odpowiednich firm odnośnych właścicieli. MANHATTAN® offre una linea completa di componenti per PC, periferiche, cavi e accessori. Chiedi maggiori informazioni al tuo rivenditore di computer o visita il sito www.manhattan-products.com.
