Summary of Contents for Manhattan 130172

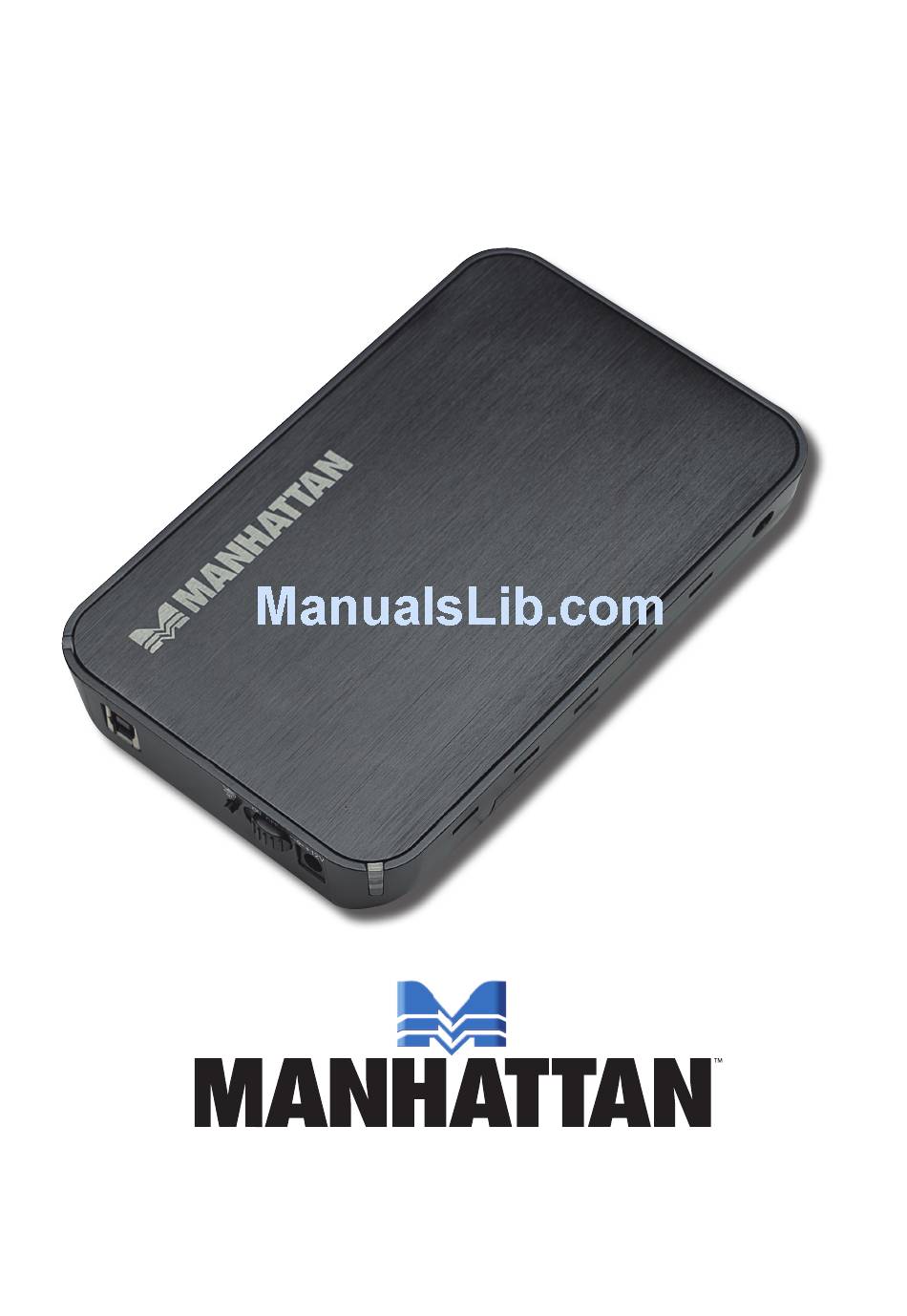

- Page 1 Drive enclosure user manual Model 130172 MAN-130172-UM-0110-03...

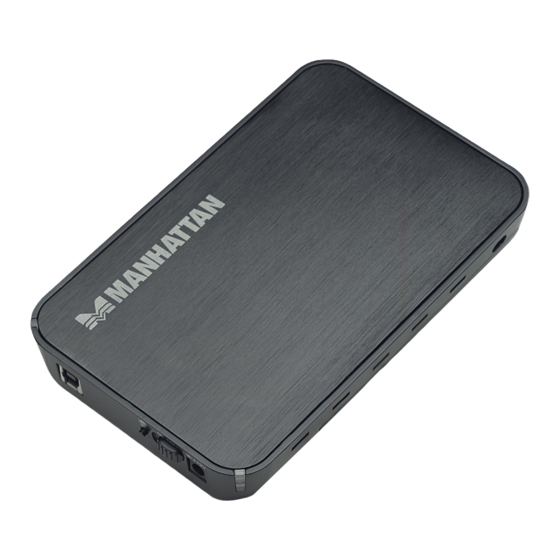

- Page 2 ® With support for large-capacity 3.5” SATA drives up to 2 TB and SuperSpeed USB (USB 3.0) data transfer rates of up to 5 Gbps, this MANHATTAN drive enclosure helps optimize high-performance personal computer storage applications. A convenient built-in, one-touch backup feature helps quickly transfer, share and archive important data.
-
Page 3: Installation
installation 1. Set the lock/Unlock switch on the end panel to the Unlock position. 2. Slide the cover of the drive enclosure off the base. Hole for screw on each side of base 3. Carefully place your hard drive in the base of the enclosure so a solid connection is made with the 22-pin SATA connector. -
Page 4: Driver Installation
OPTIONAL: Formatting a New Hard Drive If you’re using a new hard drive with this device, you may need to format it before initial use. If so, follow the procedure above, then continue with the steps below. For more info on formatting drives, go to www.microsoft.com. 1. - Page 5 1. Insert the included software CD into your PC and open the folder “PCCLONEEX_LITE_1_82_01JMICRON.” Double-click “Setup.” 2. When the Welcome screen displays, click “Install” to continue. 3. When the license and warranty agreement displays, read it and click “Agree” to continue.
- Page 6 4. When the Setup will install to: screen displays, click “Install”; or click “Browse” to re-direct the file to a location other than the one listed. 5. Click “OK” to finish the software installation.
- Page 7 one-touch backup function These steps show how to use the convenient one-Touch Backup feature. 1. Once the software installation is complete, a PCCloneEX icon will display on the desktop. Double-click the icon to display the Quick Launch screen.
- Page 8 2. Press the one-Touch Backup button (refer to Hardware Installation) to display the Please select file(s) screen, then click “OK.” 3. Select the file(s) you want to back up from the list in the left-side window, then press the backup button again.
- Page 9 4. When the Files Backup screen displays, click “Start” and the system will begin to back up the selected files. 5. When the “Backup Finished” message displays, click “OK.”...
- Page 10 6. The backed-up files(s) should now appear in the right-side window.
-
Page 11: Specifications
specifications Standards and Certifications • USB 3.0 to SATA interface • CE • FCC • WEEE • RoHS General • JMICRON 539 chipset • SATA L-type internal data and power connections • DC single-post power input (power adapter included) • Power adapter: input, 100 – 240 V, 50 – 60 Hz, 0.8 A; output, 12 V / 2 A; cable, 1.5 m (5 ft.) •... -
Page 12: Waste Electrical And Electronic Equipment
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) eNGlISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste. - Page 13 ITAlIANo Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEEI), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.
-
Page 14: Warranty Information
ITAlIANo: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. eN MéXICO: Poliza de Garantia MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. •... - Page 15 FEDERAL COMMUNICATIONS COMMISSION REGULATORY STATEMENT FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 16 Wszystkie nazwy handlowe i towarów są nazwami i znakami towarowymi zastrzeżonymi odpowiednich firm odnośnych właścicieli. MANHATTAN® offre una linea completa di componenti per PC, periferiche, cavi e accessori. Chiedi maggiori informazioni al tuo rivenditore di computer o visita il sito www.manhattan-products.com.
