Bass Management - Genelec 7380A Operating Manual

BYPASS
SWITCH
CONNECTOR
MAINS
INPUT
CONTROL
SWITCHES
ROTARY
LEVEL
ADJUSTMENT

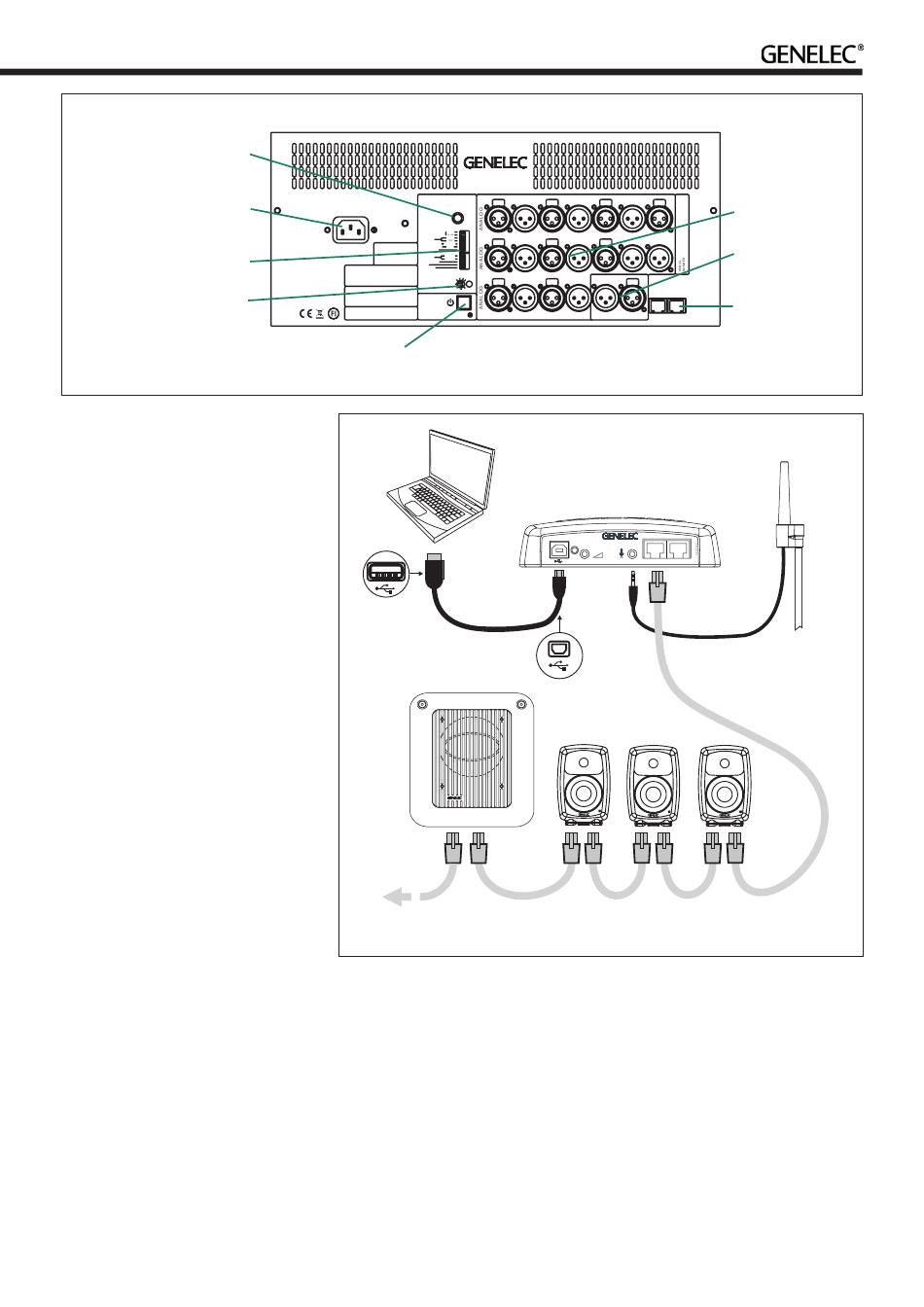

Figure 1. Connector panel of the 7380A.
AES/EBU Out
The AES/EBU Out is a bit-to-bit copy of
the digital audio signal on the AES/EBU IN.
This output can be used for digital sharing
of the audio between subwoofers in the
case where multiple subwoofers are used.
This output can also be used for distributing
a stereo digital audio signal to monitors.
This can create a 2.1 digital audio stereo
monitoring system.
Bypass
The Bypass input accepts a 6.3 mm tip-ring-
sleeve (TRS) or tip-sleeve (TS) plug. This
plug supports a contact open/close switch
device. Connecting the TIP to the SLEEVE
activates the bass management bypass.
When the bass management bypass is
active, the subwoofer only reproduces the
LFE signal and the outputs bypassed to the
monitors are exact copies of the inputs.
The Bypass switch is intended to be used
when the subwoofer is set up using the
controls built in the subwoofer.
The GLM software control enables also
bypassing the bass management and offers
a wider set of controls and adjustments.
When the GLM is used, the TRS bypass
control is not needed.
GLM Management Network
All controls and calibration features included
in the 7380A SAM subwoofer can be set using
the Genelec Loudspeaker Manager (GLM)
software. Two GLM Network connectors are
provided on the subwoofer for computer
control. These connectors accept CAT5 or
higher cable (RJ45 connector). Standard CAT
cables can be used.
The GLM management network runs a
proprietary protocol. This is not an Ethernet
connection, do not connect to an Ethernet
network.
7380A SMART ACTIVE SUBWOOFER
MADE IN FINLAND www.genelec.com
IN 6
BYPASS
-4 dB
BASS ROLL-OFF
IN 3
-90°
PHASE
DIGITAL LFE ON/OFF
THIS DEVICE COMPLIES LFE CHANNEL A/B
MAINS INPUT
WITH FCC PART 15 AND
LFE +10 dB
CANADIAN ICES-003 RADIO
50 / 60 Hz 600 W
FREQUENCY CLASS B EMISSION
100 - 240 V~
-10 dB
REQUIREMENTS. REFER TO LEVEL
-20 dB
OPERATING MANUAL FOR FULL
TEST TONE
INFORMATION.
ISS
WARNING STORED
ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT
ON OFF
SUBJECT TO WATER OR MOISTURE. NO USER
-2 -4
SERVICEABLE PARTS INSIDE. REFER SERVICING TO INPUT dBu IN 1
0 -6
QUALIFIED PERSONNEL. USE EARTHED MAINS
PRODUCING
CONNECTION ONLY.
100 dB SPL (1 m) +2
AVERTISSEMENT
+4 +12
+8
RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR. NE PAS
EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN COMPOSANT À
RESET TO
L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR. ADRESSER
FACTORY
TOUTE RÉPARATION À UN PERSONNEL QUALIFIÉ.
CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE. SETTINGS:
PUSH BUTTON
LAITE ON LIITETTÄVÄ SUOJAKOSKETTIMILLA
FOR 10 SEC
VARUSTETTUUN PISTORASIAAN.
APPARATET MÅ TILKOPLES JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
POWER
SWITCH
COMPUTER
RUNNING
GLM SOFTWARE
USB CABLE
SUBWOOFER
Figure 2. GLM Network cabling. Audio cabling not shown.
Mains Power Input
The main power connection supports a
wide mains voltage range (100-240 VAC,
50-60 Hz). This enables the 7380A SAM
subwoofer to be plugged in anywhere
globally. When the mains power is provided
with a generator, inverter, or certain lower-
quality UPS devices, we recommend filtering
power to remove harmonics and ensuring
the voltage supply is stable.
OUT 6 IN 7 OUT 7 LFE IN LFE OUT LINK IN
OUT 3 IN 4 OUT 4 IN 5 OUT 5 LINK OUT
OUT 1 IN 2 OUT 2 OUT IN
TEST 1 TEST 2
GLM NETWORK
DIGITAL
THE LISTENING
GLM ADAPTER
GLM
TERMINATOR
MONITORS

Bass Management

Bass management divides the input audio
signal into low frequency and high frequency
content at the subwoofer crossover frequency.
The signal content below the crossover
frequency is reproduced by the subwoofer.
The signal content above the crossover
frequency is reproduced by the monitors.
T h e 7 3 8 0 A
management methods: the centralized bass
management method and the distributed
bass management method.
ANALOG IN/OUT
CONNECTORS
AES/EBU IN/OUT
CONNECTORS
GLM NETWORK
CONNECTORS
MICROPHONE
PLACED IN
POSITION
GLM NETWORK
CABLE
s u p p o r t s t w o b a s s
