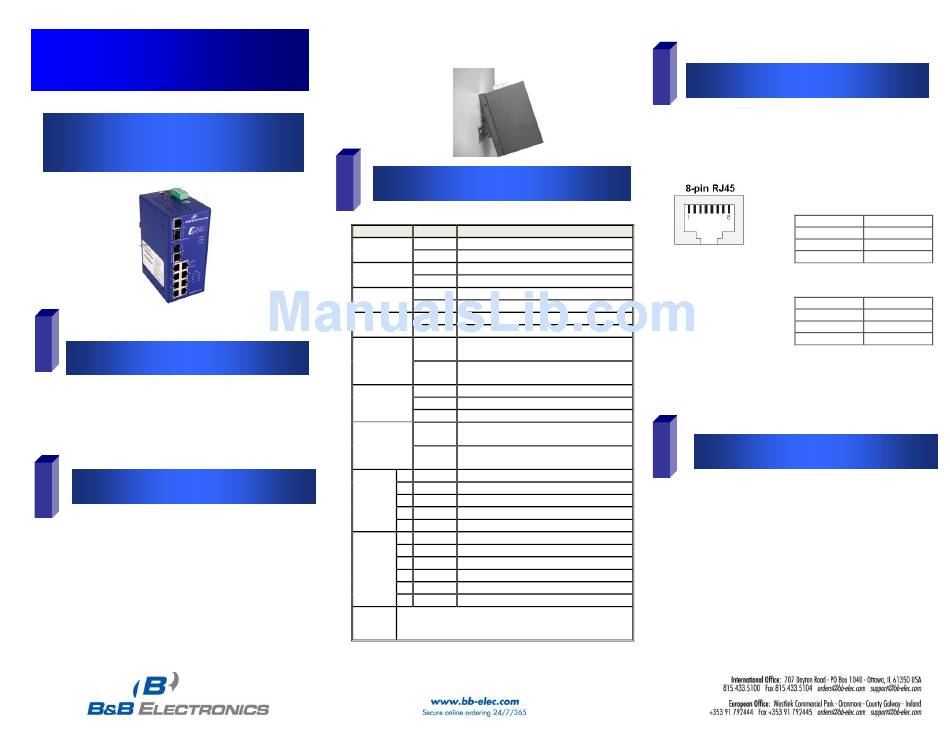

Quick Start Guide
Elinx PoE Ethernet Switch
EIRP410-2SFP-T
1
Items Included
Ethernet Switch
o
CD with Support Manual
o
This Quick Start Guide
o
Panel Mount Bracket
o
2
Hardware Installation
1.
Select a mounting location and install the
switch onto a piece of DIN rail or use the
included panel mount brackets for wall or
panel mounting
2.
Connect power to the switch
48 VDC
 For redundancy connect two separate power supplies
using the two DC inputs on the terminal blocks
 If only one power input is used the Fault LED will light.
3
LED Chart
LED
Status
Description
Green
The Switch is powered on
PWR
Off
The Switch is powered off
Green
Power Source 1 is available
PWR1
Off
Power Source 1 is unavailable
Green
Power Source 2 is available
PWR2
Off
Power source 2 is unavailable
Red
Power or Port failure
Fault
Off
Normal Operation
The Switch is the master of a redundant ring
Green
(X-Ring)
R.M
The Switch is not the master of a redundant
Off
ring.
Green
SFP Port is linked
Ports 9, 10
LNK/ACT
Blinking
Data is being transmitted or received
(SFP)
Off
Not connected to the network
The port is supplying power to the connected
Green
device
FWD
P1 to P8
No device attached or no power is being
Off
supplied
T
Green
Port is linked
T
Blinking
Data is being transmitted or received
Ports
9, 10
T
Off
Not connected to the network
(RJ-45)
B
Green
Operating at 1000M
B
Off
Disconnected or 10/100M
T
Green
Connected to the network
T
Blinking
Data is being transmitted or received
Ports
T
Off
Not connected to the network
1 to 8
B
Yellow
Operating in full-duplex
(PoE)
B
Blinking
Data collision
B
Off
Half-duplex or not connected
Ports 1 to 8 are 10/100 PoE RJ-45, Ports 9 and 10 are
Note
10/100/1000 RJ-45 or 100/1000 SFP.
EIRP410-2SFP-T-0912qsg
4
Ports
RJ-45 ports: The RJ-45 ports auto-sense for 10 or 100 Mbps
device connections. The auto MDI/MDIX feature allows
connections to switches, workstation and other equipment
without changing straight through or crossover cabling. The
charts below show the cable pin assignments for straight
through and crossover cables.
MDI Cable Pinout
Pin
1
2
3
6
MDI-X Cable Pinout
Pin
1
2
3
6
PoE ports: The PoE ports on this switch follow Alternative A
standards and are limited to 15.4 Watts of power output per
port. Ports 1 thru 4 support the IEEE802.3af standard and
are classified as (PSE) power sourcing equipment, which
means they can be used to power (PD) powered devices.
5
Log into the Switch
1.
Once power is applied and devices connected, the
switch will automatically discover standard and PoE
network devices.
Signal
Tx+
Tx-
Rx+
Rx-
Signal
Rx+
Rx-
Tx+
Tx-
