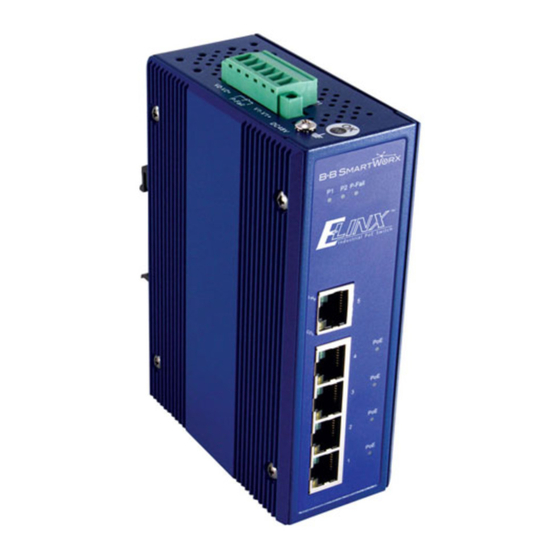

- Page 1 Manual Elinx EIRHP305-T 5 Ports10/100 with 4 PoE Ports Unmanaged Din Rail Ethernet Switch...
- Page 2 EIRHP305-T Documentation Number: EIRHP305-T-1712m International Headquarters: 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 Website: www.bb-elec.com Sales e-mail: orders@bb-elec.com Technical Support: support@bb.elec.com – European Headquarters B&B Electronics Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Website: www.bb-europe.com Sales e-mail: sales@bb-europe.com Technical Support: support@bb-europe.com Original –...
-
Page 3: Table Of Contents
Table of Contents OVERVIEW ..............1 Features ....................... 1 HARDWARE DESCRIPTION ........3 Dimensions ....................3 Front Panel ....................4 Top View ..................... 4 LED Indicators ................... 5 RJ45 ......................6 Cabling ......................8 Wiring the Power Inputs ................8 MOUNTING INSTALLATION ........ -
Page 5: Overview
Overview B&B Electronics PoE Ethernet switch, 5 port 10/100TX with 4 offering High-Power (25W) PoE ports. The Industrial Switch is a cost-effective solution which meets the high reliability requirements demanded by industrial applications. The Ethernet switch supports wide temperature - 40°C - 75°C environments. - Page 6 Package Contents • 5 port 10/100TX with 4 Port High-Power (25W) PoE Industrial Switch (with DIN-Rail Bracket) • User manual • Removable Terminal Block • Wall-mount Kit (2 wall-mount bracket with screws) EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
-
Page 7: Hardware Description
Hardware Description The following information is an introduction to the PoE Industrial Ethernet Switch dimensions, port, cabling information, and wiring installation. Dimensions 5 port 10/100T(X) with 4 High-Power (25W) PoE ports Industrial Switch dimensions (W x D x H) is 48.60mm x 95mm x 140mm, the detail dimensions as Figure-1 Figure-1: Mechanical Dimensions EIRHP305-T-1712m... -
Page 8: Front Panel
Front Panel The Front Panel of the 5 port 10/100TX with 4 Port High-Power (25W) PoE Industrial Switch is shown below Figure-2 Figure-2: Front Panel of the Switch Top View The top view displays one terminal block connector, which allows wiring of two DC power inputs and a Relay circuit contact. -
Page 9: Led Indicators
LED Indicators The diagnostic LEDs located on the front panel of the industrial switch provide real-time information of system and operation status. Table-1 provides the description of the LEDs status and their definitions. Wiring the Power Inputs Table-1: LED Indication Definition EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc –... -
Page 10: Rj45
RJ45 The RJ45 copper ports support auto MDI/MDIX operation. This feature allows network connections to computers, servers, or other switches using straight-through or crossover cables (See Figure below). Straight-through cable connections: pins 1, 2, 3 and 6, at one end of the cable, are connected straight-through to pins 1, 2, 3 and 6 at the other end of the cable. - Page 11 EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
-
Page 12: Cabling
Cabling Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps connections, 100Ω Category 5 cable for 100Mbps, or 100Ω Category 5e/above cable for 1000Mbps connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. -
Page 13: Mounting Installation
Mounting Installation DIN-Rail Mounting Assembling the DIN-Rail Clip Rear Panel of the switch DIN-rail clip EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –... -
Page 14: Hanging The Industrial Switch
Hanging the Industrial Switch First, position the din-rail clip of the switch directly in front of the DIN rail. Make sure the top of the clip hooks over the top of the DIN rail. Push the unit downward. Check the DIN-Rail clip is tightly fixed on the DIN rail. To remove the industrial switch from the track, reverse the steps above. -
Page 15: Wall-Mount Plate Mounting
Wall-Mount Plate Mounting When using the wall mount plates the din-rail clip can be removed. Place the wall-mount plates on the rear panel of the industrial switch and fasten the screws. Wall-Mount Bracket Dimensions EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –... -
Page 16: Hardware Installation Diagram
Hardware Installation Diagram EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com... -
Page 17: Troubleshooting
Troubleshooting • Do not use the power adapter with DC output higher than the power rating of the device. • Select the proper UTP/STP cable to construct your network. Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps connections, 100Ω... -
Page 18: Technical Specification
Technical Specification The 5 port 10/100TX with 4 port High-Power (25W) PoE Industrial Switch technical specifications is shown as below. EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –... - Page 19 EIRHP305-T-1712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
