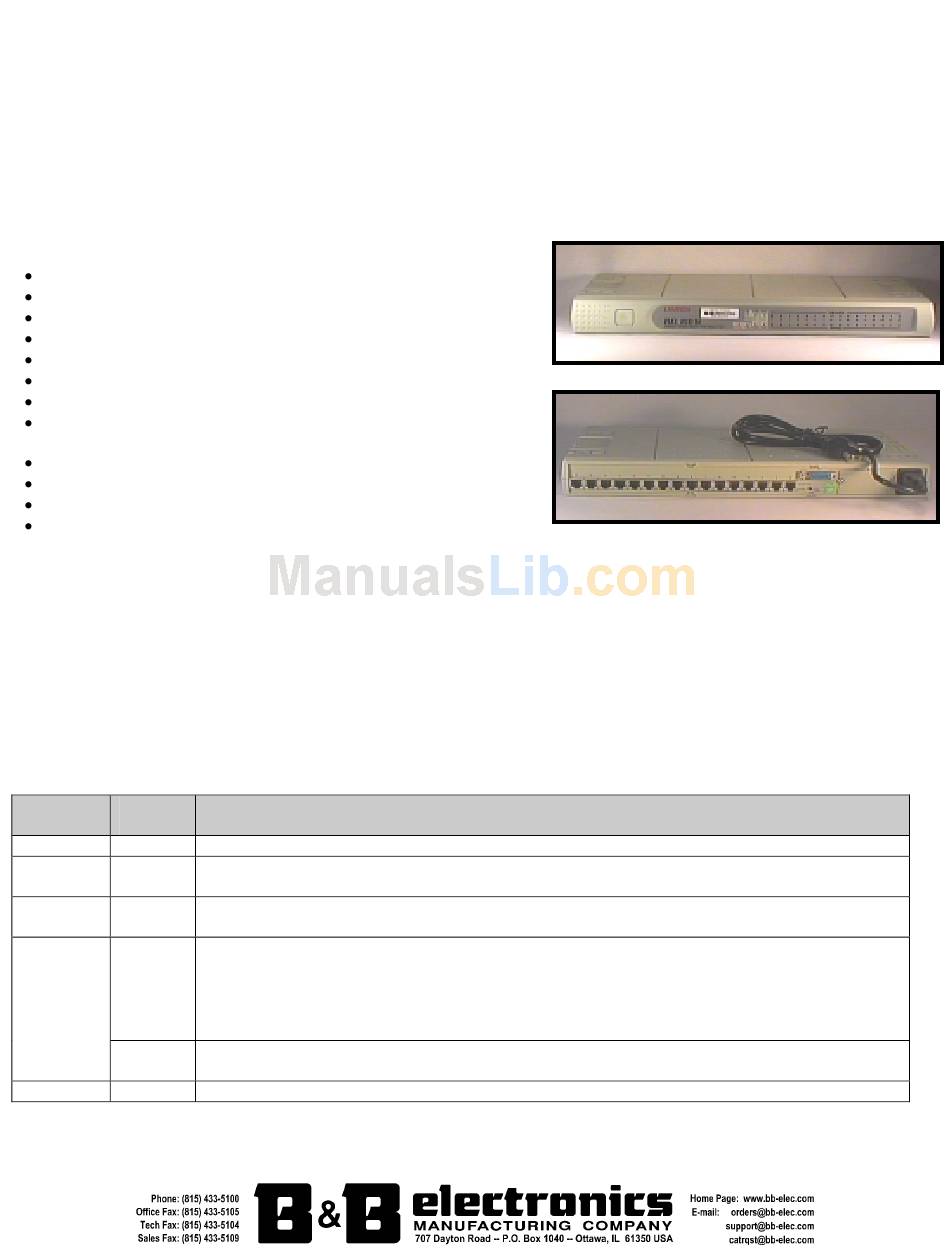

B&B Electronics ETHUB16 Datasheet

Documentation Number ETHUB160698 – pg. 1/1
The ETHUB16 provides a complete 10Base- T rack mount Hub solution for your 10Base- T 10Mbps Ethernet local area
network. As a wiring hub the ETHUB16 offers 16 UTP (Unshielded Twisted Pair) ports. The ETHUB16 includes a daisy-
chain port for Hub-to-Hub connection, true repeater functionality, internal universal power supply and a modular slot that
allows connection to a 10Base-2 (BNC), 10Base-5(AUI) and 10BASE-FL (Fiber-optic) cabled networks.

Features:

Complies with IEEE 802.3
16 UTP (unshielded twisted pair) ports
1 daisy-chain port (activated by a switch)
Automatic partition capability for STP ports
1 AUI port
1 Module slot (for AUI, BNC and 10Base-FL modules)
"Hot swapping" of optional module
LED indicators: Power, Collision, LK/RX for each port;
Partition for each port
Universal Internal Power Supply: AC 90 V – 260V/ 47-63Hz
High quality 19" rack mount case
Dimensions: 220 x 429 x 43 mm (8 2/3" x 17" x 1 ¾")
FCC Class A, CE mark

Daisy-chain switch:

The first UTP port can be used as a daisy-chain link to another hub. Set the switch to the daisy-chain position to
enable this function. Connect a UTP cable from the daisy-chain port to another hub's regular port (not its daisy-chain
port).

Hub Ports:

The hub supports 16 RJ-45 connectors for 10Base- T specification connections. The maximum distance is 100 m
(328 ft.). The first UTP port can be used to connect to another hub. The ETHUB16 also comes with a standard AUI
10Base- 5 port and a module slot for adding an optional 10Base- 5, 10Base- 2, or a 10Base FL module.

LED Indicators:

LED LED
Indicator Activity
Power LED on
TX/RX LED
Flashes
Link/ LED on
Activity
LED off
LED
Flashes
Partition LED on

16 Port Ethernet Hub

Explanation
Red colored LED is on to indicate that the power is on
Green colored LED flashes to indicate network traffic on the dedicated AUI port or the
optional module port
One for each port –Green LED when on indicates the port is connected to a node
Indicates no connection or a poor connection – possible reasons include:
a) No connection between port and node
b) The twisted pair cable is faulty
c) The cable exceeds the permitted length of 100 meters (328 feet)
d) A non-10Base- T device is connected at the node
Green LED flashes when the port is transmitting data
Red colored LED is on when the hub detects faulty signals on a port and isolates that port
Model ETHUB16
B&B Electronics -- June 1998
Not Recommended for New Installations.
Please contact Technical Support for more information.
