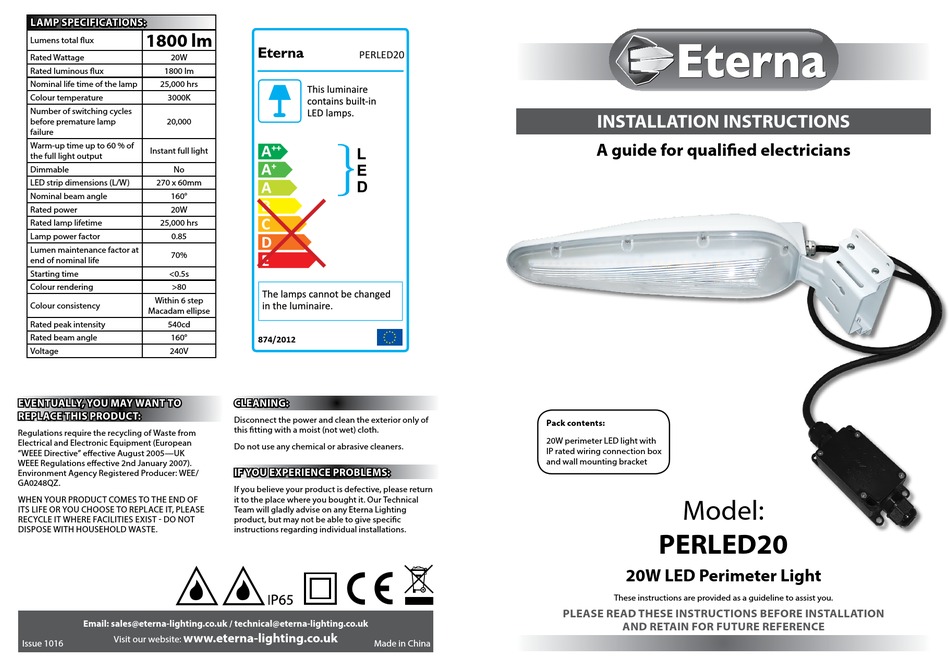

Eterna PERLED20 Installation Instructions

LAMP SPECIFICATIONS:
1800 lm
Lumens total flux
Rated Wattage 20W
Rated luminous flux 1800 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 3000K
Number of switching cycles
before premature lamp 20,000
failure
Warm-up time up to 60 % of
Instant full light
the full light output
Dimmable No
LED strip dimensions (L/W) 270 x 60mm
Nominal beam angle 160°
Rated power 20W
Rated lamp lifetime 25,000 hrs
Lamp power factor 0.85
Lumen maintenance factor at
70%
end of nominal life
Starting time <0.5s
Colour rendering >80
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity 540cd
Rated beam angle 160°
Voltage 240V
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 1016
MODELNO.
PERLED20
874/2012
CLEANING:
Disconnect the power and clean the exterior only of
this fitting with a moist (not wet) cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
Made in China
INSTALLATION INSTRUCTIONS
A guide for qualified electricians

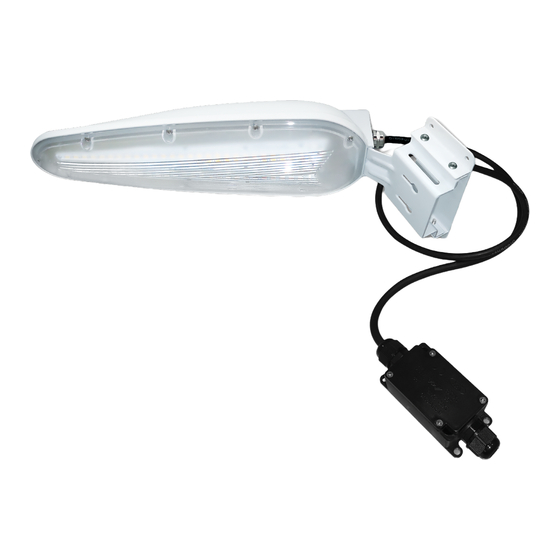

Pack contents:
20W perimeter LED light with
IP rated wiring connection box
and wall mounting bracket
Model:
PERLED20
20W LED Perimeter Light
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
