Dynojet POWER COMMANDER V Installation Manual page 4

FIG.D
FIG.E
FIG.F
22-079 www.powercommander.com
7
Ground
8
9
Unplug

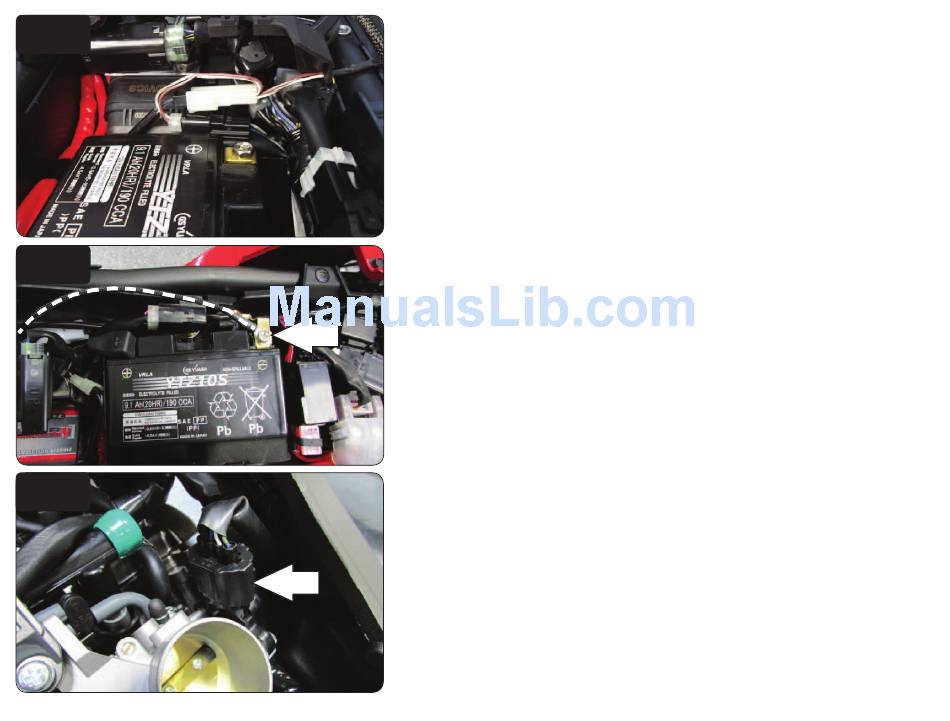

Plug the pair of PCV connectors with BROWN colored wires in-line of the
stock Crank Position Sensor connectors (Fig. D).
Secure the PCV ground wire with the ring lug to the negative (-) terminal of the
bike's battery (Fig. E).
Unplug the stock Throttle Position Sensor connector (Fig. F).
This is a BLACK 4-pin connector on the right side of the throttle bodies.
2016 Yamaha XSR900 - PCV - 4
