Chapter 1: Connections and Setup
Things to consider before you connect
Protect components from overheating
•
Don't block ventilation holes on any of the components. Arrange the components so
that air can circulate freely.
•
Don't stack components.
•
When you place components in a stand, make sure you allow adequate ventilation.
•
If you connect an audio receiver or amplifier, place it on the top shelf.
Position cables properly to avoid audio interference
•
Insert each cable firmly into the designated jack.
•
If you place components above the TV, route all cables down the side of the back of
the TV instead of straight down the middle of the back of the TV.
•
If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the
twin lead cables away from audio/video cables.
Connection Pictures
Audio/video cables are usually bundled together. For better visibility, the connection
pictures in this book show each cable separately (audio left, audio right, and video).
Graphics contained within this publication are for representation only.
VIDEO CD
Some discs may not be
compatible due to laser pickup
and disc design.

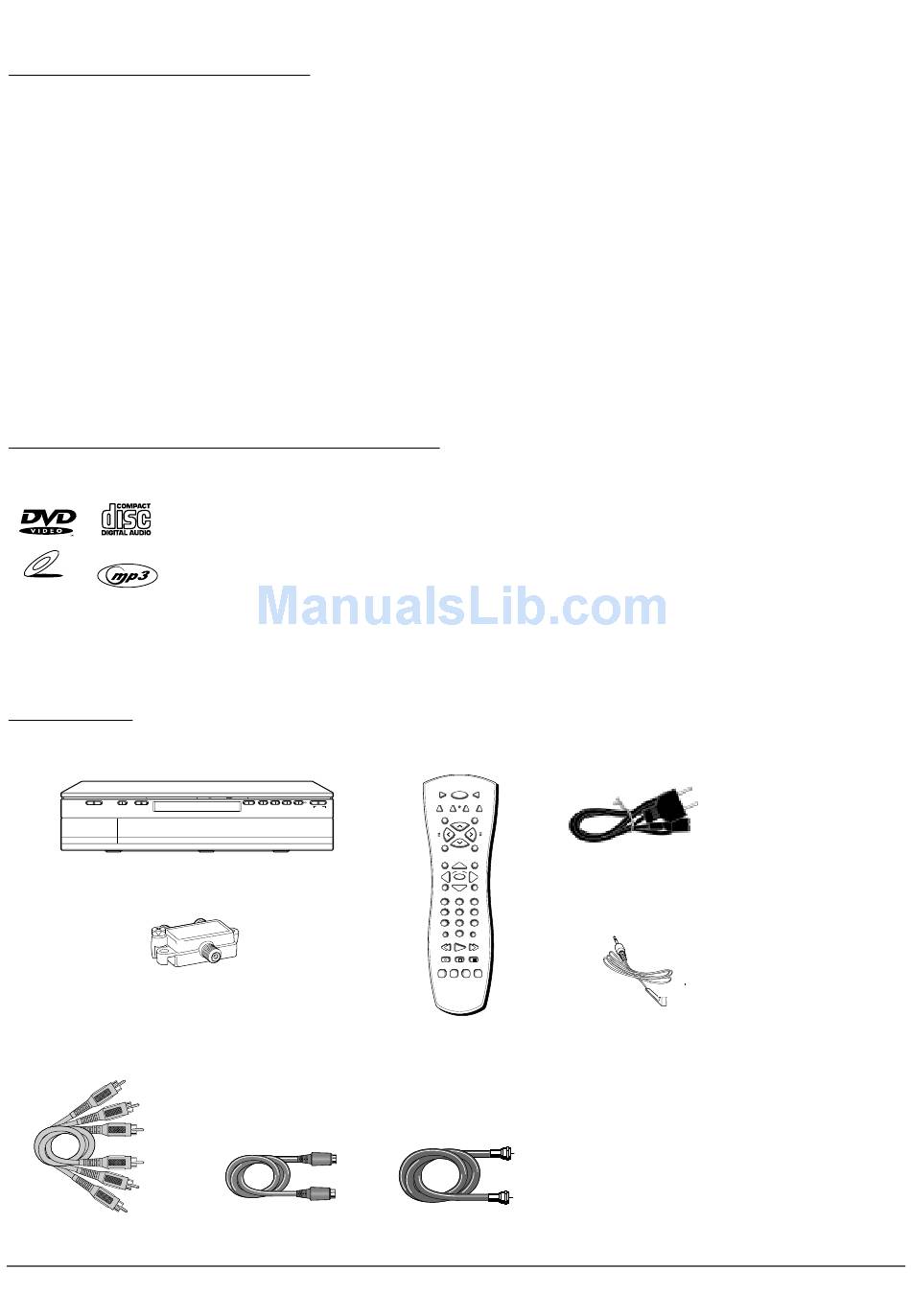

Unpack the Box
Your Digital Media Recorder came with the following items:
STANDBY/ON
-
+
INPUT
VOLUME
DVD / VIDEO / CD / MP3 PLAYER
Digital Media Recorder
RF Signal Splitter (part number VH47)
You must connect the RF Signal Splitter in order to watch one
program while you record another one to the Digital Media
Recorder's hard disk drive.
1 set of audio video cables
(part number 233086)
2
Types of discs your DVD player can play
•
DVD discs – contain picture and sound (DVD-R, DVD+RW are compatible with this player) .
•
CDs (CD-R, CD-RW) – Audio CDs contain musical or sound content only. MP3 discs are CDs that contain MP3
files. This player is also capable of playing CDs that contain JPEG files.
•
Video CD discs – Like DVD video discs, Video CDs contain picture and sound content. The difference is the
amount of information that can be stored on the disc. VCDs typically have lower picture and sound quality
than DVD discs.
OPEN/CLOSE
PLAY
PAUSE
STOP
RECORD
PR- PR+
HARD DISC DRIVE RECORDER
DRS 7000
S-Video cable (part
number 257982)
DVD
ON • OFF
TV
VCR
AUDIO
AUX
SAT • CABLE
MUTE
ANGLE
CH +
CH -
ZOOM
GO BACK
GUIDE
INFO
OK
MENU
CLEAR
1
2
3
4
5
6
7
8
9
AGAIN
ADVANCE
0
REVERSE
PLAY
FORWARD
RECORD
STOP
PAUSE
OPEN
INPUT
ANTENNA
LIVE
Remote control and
batteries (part number
257873)
RF Coaxial cable (part
number 221396)
CAUTION: You must turn off the
Digital Media Recorder before you
move it. Moving the unit while it
is powered on could damage the
hard disk drive.
Power cord (part number
218104)
G-LINK cable (part number
246990)
