Chapter 1: Connections and Setup
Details about the different
kinds of cables used to connect
your Digital Media Recorder are
on page 56.

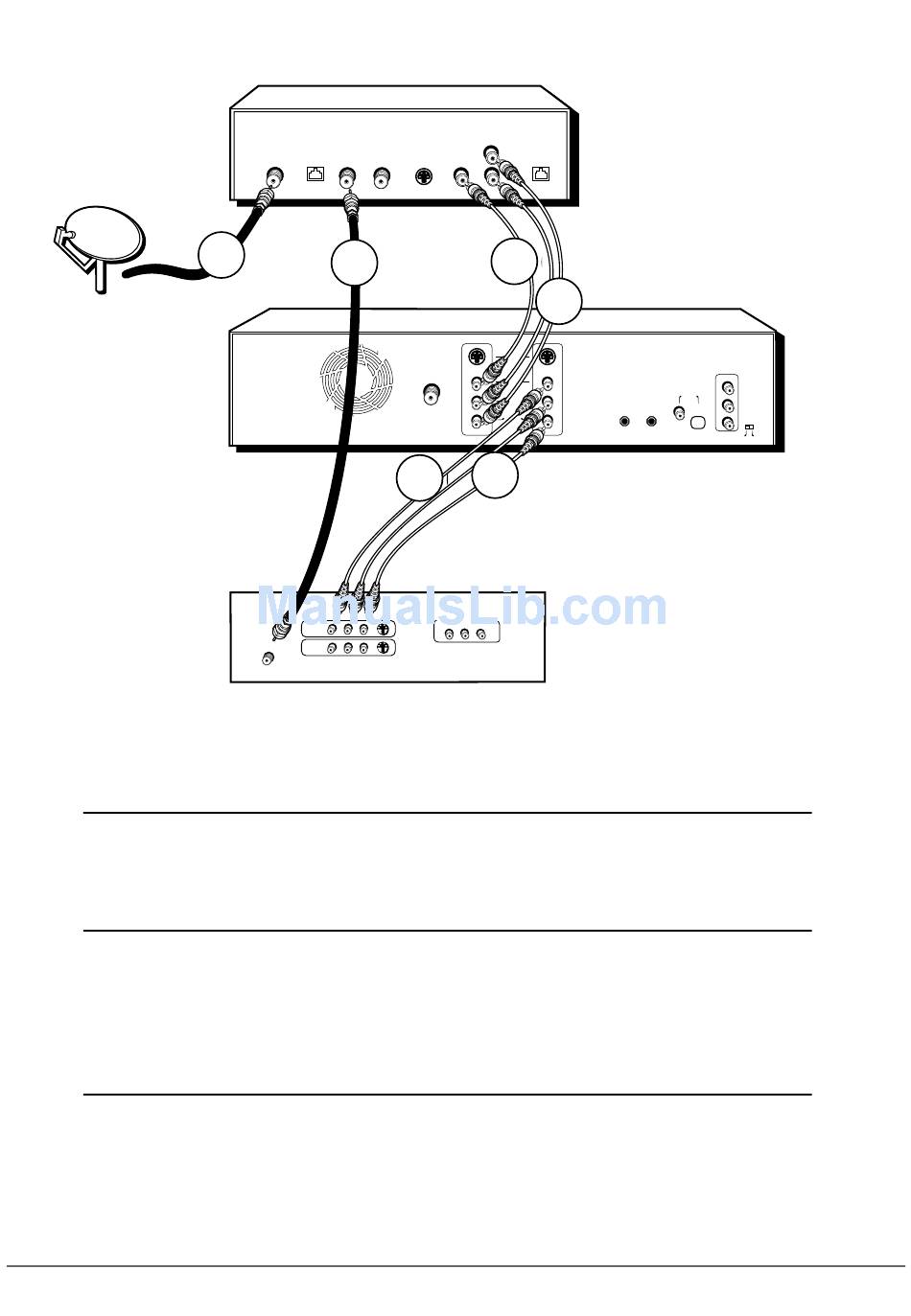

SATELLITE
DISH
ANTENNA
To watch TV (satellite programming)
To watch TV (satellite programming)
with the Digital Media Recorder turned
off.
Note: You won't be able to pause
programming or record to the Digital
Media Recorder.
To play a disc or a show you've
recorded to the Digital Media Recorder:
8
SATELLITE RECEIVER
LOW SPEED
SATELLITE IN DATA OUT TO TV IN FROM ANT
1
1
4
4
DVD RECORDER
TV
VIDEO L R S-VIDEO
INPUT1
CABLE/ANTENNA
INPUT2
The back of your TV might look
different than the one pictured here.
AUDIO OUT
R
VIDEO
S-VIDEO PHONE JACK
L
2b
2b
2a
2a
INPUT OUTPUT
S-VIDEO
COMPOSITE
VIDEO
RF ANTENNA/CABLE
AUDIO
L L
INPUT
R R
3a 3a
3b 3b
COMPONENT VIDEO INPUT
Y P P
B R
Tune the TV to its Input 1 channel or Vid 1 channel
Tune the Digital Media Recorder to the INPUT 1 channel (press
INPUT on the remote).
Tune the satellite receiver to the channel you want to watch.
Tune the TV its CABLE/ANTENNA INPUT channel (usually channel
2, 3, or 4).
Tune the satellite receiver to the channel you want to watch.
Tune the TV to Input 1 channel or Vid 1 channel.
The back of your satellite
receiver might look different
than the one pictured here.
COMPONENT
VIDEO OUTPUT
Y
DIGITAL AUDIO
Pb
Pr
PROG.
SCAN
COAXIAL
G-LINK IR SAT OPTICAL
ON OFF
