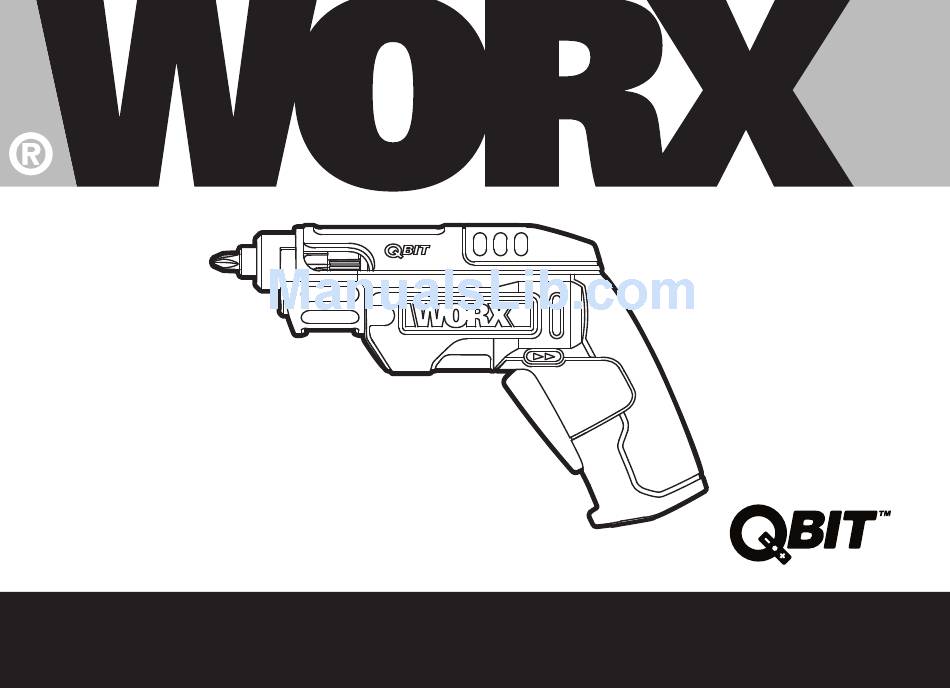

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS WX253 WX253.1...
-
Page 2: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 3: Personal Safety
3) PERSONAL SAFETY Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. - Page 4 and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
- Page 5 2. Battery leakage may occur under extreme usage or temperature conditions. If battery fluid comes into contact with skin, wash with soap and water and rinse with lemon juice and vinegar. If the fluid comes into contact with the eyes, flush with water for several minutes and contact a doctor immediately. 3.
- Page 6 SAFETY INSTRUCTIONS FOR BATTERY PACK Do not dismantle, open or shred secondary cells or battery pack. Do not expose cells or battery pack to heat or fire. Avoid storage in direct sunlight. Do not short-circuit a cell or a battery pack. Do not store cells or battery pack haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
- Page 7 SYMBOLS To reduce the risk of injury, user must read instruction manual Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point Warning Wear eye protection WARNING: Do not look directly into the bit barrel Wear ear protection when changing bits as bits may be projected outward.
-
Page 9: Technical Data
ON/OFF SWITCH LED LIGHT BIT HOLDER OR CHUCK * Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type WX253 WX253.1(250~269-designation of machinery, representative of Battery-powered Screwdriver) Charger voltage 230V/240V~ 50Hz Rated voltage Battery capacity 1.5Ah Li-Ion... -
Page 10: Noise Information
NOISE INFORMATION A weighted sound pressure : 65dB(A) A weighted sound power : 76dB(A) &K 3dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value a = 0.7m/s²... - Page 11 Avoid using tools in temperatures of 10 C or less. Plan your work schedule to spread any high vibration tool use across a number of days. ACCESSORIES WX253 WX253.1 25mm Screwdriver Bit 25mm Pilot Hole Drill Bit * 3-5hr Charger...
-
Page 12: Intended Use
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The power tool is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic. BEFORE OPERATING THIS TOOL A) CHARGE THE BATTERY The battery charger supplied is only for the Li-Ion battery installed in the machine. - Page 13 2. OPERATING INSTRUCTIONS Inspect the Screwdriver before using to ensure all the parts are running smoothly and there are no abnormal sounds or sparks. Before driving fasteners, check behind walls for wire and other electrical hazards or plumbing. OPERATION 1. INSERTING THE BIT CARTRIDGE (See Fig. B) Pull the Cover back completely to insert the Bit Cartridge.
-
Page 14: Switch Lock
properly aligned inside. Make sure the bit cartridge has clicked into place when selecting the desired bit to use. If the cover cannot properly close, just turn the Chuck clockwise or counter-clockwise a little bit and try again. 3. SWITCH LOCK The On/off Switch can be locked in the OFF position. -
Page 15: Maintenance
release the On/Off Switch, the light will be off. LED light increases visibility and is great for dark or enclosed area. 7. PROTECTION AGAINST DEEP DISCHARGING The Li-Ion battery is protected against deep discharging by the “Discharging Protection System” . When the battery is empty, the machine is switched off by means of a protective circuit: The chuck no longer rotates. -
Page 16: Declaration Of Conformity
Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description 4V Multi-bit Lithium screwdriver Type WX253 WX253.1 (250~269-designation of machinery, representative of Battery-powered Screwdriver) Function Tightening and loosening screws, nuts Complies with the following Directives,... - Page 20 Copyright © 2013, Positec. All Rights Reserved. 2CSD13APK11000A3...
