Summary of Contents for Worx WU063

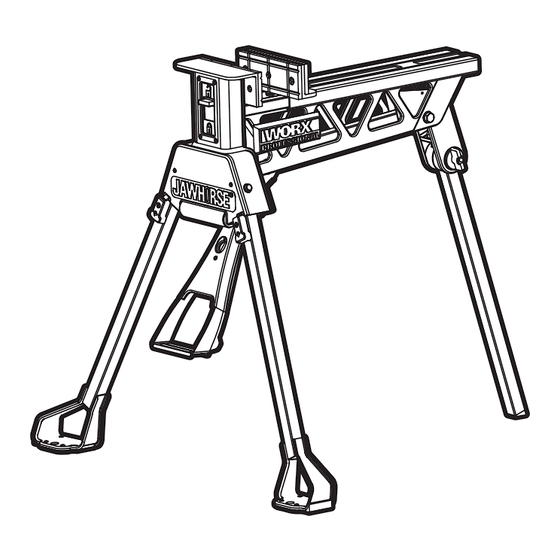

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUcTIONS Portable versatile workstation wU063...
-
Page 2: Safety Instructions
Safety instructions Do not wear loose clothing or jewelry, they can be caught in moving parts. Non-skid footwear is recommended when working outdoors. Warning! When using this product basic safety precautions Wear protective hair covering to contain long hair. should always be followed. Failure to follow all instructions listed Use personal protective equipment. - Page 3 Symbols Warning–To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear ear protection Wear dust mask Pinch points Keep stander-by away Wear gloves...
- Page 4 component list Moving Jaw Moving Jaw Facing (2 pieces) Fixed Jaw Facing Main Body Rear Leg Locking Knob Rear Leg Rubber Foot Pad Foot Plate Foot Pedal Front Leg Foot Pedal Locking Latch Roller Lock/Release Switch Fixed Jaw Front Leg Locking Latch...
-
Page 5: Technical Data
Technical data • Clamping range 0-940mm • Max. clamping force 1 metric ton (1000kg) • Clamp method Foot step • Max. Load 272kg • Footprint (standing) 1000x985x885mm • Footprint (folded) 773x350x336mm • Clamp travel – foot pedal 24mm per step •... -
Page 6: Folding Instructions
Operating instructions Note: Before using the tool, read the instruction book carefully. INTENDED USE The JAWHORSE ® is a versatile workstation for holding, clamping, supporting. SET-UP INSTRUCTIONS 1. Put the JAWHORSE upside down on the ground, loosen the ® Rear Leg Locking Knob (5) and slide the rear leg from its storage position. - Page 7 4. Loosen the Rear Locking Knob(5). Slide the Rear Leg (6) from housing and back into storage position. Make sure the Rear Leg is engaged fully into storage position and the Rear Leg Locking Knob is tightened firmly. 5. You can carry the Rear Leg as a carry handle when the JAWHORSE is fully folded in its position.
- Page 8 If you have clamped the object very tightly, you must exert similar pressure on the foot pedal before it will release. Warning: Ensure you are supporting the workpiece to avoid its falling when the jaw is released. 3. Slide the moving jaw back and remove your workpiece. (See Fig. N) CLAMPING ON ONE SIDE OF THE JAW Sometimes, large or awkward workpieces can only be clamped on one side of the jaws.
- Page 9 Note: Some operations such as hand sawing or planing exert enough pressure to cause the JAWHORSE to slide. In these ® situations, it is acceptable to hold the JAWHORSE in place by ® standing on the foot plate. (See Fig. R) When clamping large or heavy materials, provide outboard support.
-
Page 10: Environmental Protection
Environmental protection 2) CHAIN SAW JAW (See Fig.V-X) Suitable for gripping logs or poles, and holding the chainsaw for sharpening. These steel jaws also bolt onto the standard steel jaws Waste products must not be disposed of with household waste. and are zinc plated for corrosion resistance. -
Page 11: Ec Declaration Of Conformity
Ec DEcLARATION OF cONFORMITY Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description WORX Portable versatile workstation Type WU063 Function Being used as worktable and bench vise Complies with the following Directives, •...
