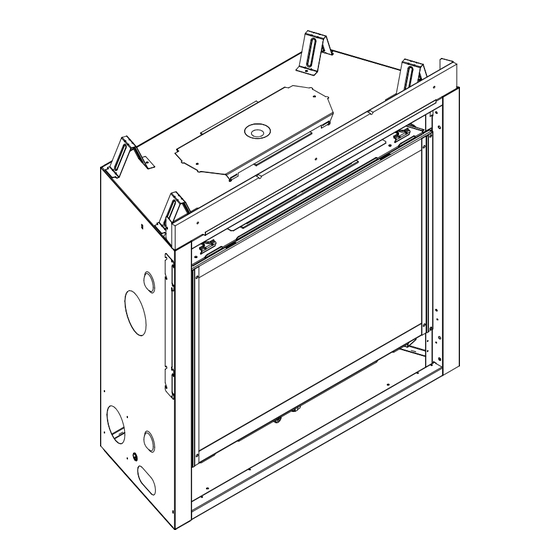

Models:
QUARTZ
SERIES
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See appliance installation manual for additional
Commonwealth of Massachusetts requirements.
Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner's Manual • 2412-981 Rev. G • 5/18
Owner's Manual
Care and Operation
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Majestic QUARTZ32IN
Summary of Contents for Majestic QUARTZ32IN
-
Page 1: Care And Operation
In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fitter. See appliance installation manual for additional Commonwealth of Massachusetts requirements. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 2: Welcome
00,000 00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 3: Table Of Contents
C. Contact Information ......27 = Contains updated information. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 4: Limited Lifetime Warranty
Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645H 10/15 Page 1 of 2 Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... - Page 5 THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645H 10/15 Page 2 of 2 Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
-
Page 6: Product Specific Information
QUARTZ36IN 24,000 17,000 (0-2000 FT) NFI certified professionals. (NG) QUARTZ36IL 20,500 16,000 (0-2000 FT) (PROPANE) QUARTZ42IN 28,500 20,000 (0-2000 FT) (NG) QUARTZ42IL 26,000 19,500 (0-2000 FT) (PROPANE) Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 7: Important Safety And Operating Information
• Install a switch lock or a wall/remote control with child protection lockout feature. • Keep remote controls out of reach of children. Figure 3.1 Clear Space Requirement - All Models Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 8: General Operating Parts
Use appropriate finishing materials that are able to withstand these conditions. For additional finishing guidelines, see Section 10 in the appliance installation manual. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... - Page 9 Sugges ons on how to further reduce TV temperatures: Increase “A” dimension. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.4. Good Faith TV Guidelines Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
-
Page 10: Before Lighting Appliance
• Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 11: Lighting Instructions (Ipi)
Propane Installation code, CSA B149.1. P65Warnings.ca.gov. For additional information on operating your Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. refer to www.hearthnhome.com. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 12: Appliance Break-In
Optional Heat-Duct Kit The Heat-Duct heat management option is available for use with the QUARTZ appliances. The Heat-Duct redistributes heat from the fireplace via the furnace ductwork. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 13: Operation During A Power Outage (Ipi)
• Slide the ON/REMOTE/OFF switch to the ON position. NOTICE: Some functionality will be lost when using battery backup including remote control, fan, lights, or any other auxiliary functions that require household 110-120 VAC power. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 14: Detailed Component Operating Instructions - Intellifire Ignition
If desired, a fan kit may be added. Contact your dealer to order the correct fan kit. Heat management for the fan is discussed in Section 3.H. Detailed instructions are in- cluded with the fan kit. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 15: Maintenance And Service
• Reinstall decorative front. CAUTION! Risk of Burns! The fireplace shall be turned off and cooled before servicing. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 16: Remote Control
(summer months, vacations/trips, etc), to prevent unin- tended operation: • Remove batteries from remote controls. • Unplug 3 volt adapter plug on IPI models. • Remove battery backup from control module. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 17: Maintenance Tasks - Qualified Service Technician
• Remove all foreign objects. • Verify unobstructed air circulation. Figure 4.2 IPI Pilot Flame Pattern - Generic Pilot Bracket Shown Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 18: Frequently Asked Questions And Troubleshooting
Installer’s Manual for this the touch. appliance. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.majesticproducts.com to locate a dealer. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 19: Troubleshooting
Verify module is securely grounded to metal chassis of appliance. D. Module voltage output /Valve/Pilot Verify battery voltage is at least 2.7 volts. Replace batteries if volt- solenoid ohms readings. age is below 2.7. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... - Page 20 ON position. If there is no spark at “I” terminal module must be replaced. If there is a spark at “I” terminal, module is fine. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
-
Page 21: Reference Materials
• Install a switch lock or a wall/remote control with child protection lockout feature. • Keep remote controls out of reach of children. See your dealer if you have questions. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... -
Page 22: Service Parts
Base Pan 2412-111 Glass Door Assembly GLA-550TR 2115-230 Hood Door SRV2401-021 Junction Box SRV4021-013 Elbow Heat Shield 385-290 Additional service part numbers appear on following page. 5/18 Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18... - Page 23 Base Pan 2413-111 GLA-750TR Glass Door Assembly Hood 2118-230 Door DBM36BK SRV4021-013 Junction Box Elbow Heat Shield 385-290 Additional service part numbers appear on following page. 5/18 Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
- Page 24 Base Pan 2414-111 GLA-950TR Glass Door Assembly Hood 2121-230 Door DBM42BK SRV4021-013 Junction Box Elbow Heat Shield 385-290 Additional service part numbers appear on following page. 5/18 Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
- Page 25 Ori ce NG (#42C) 582-842 QUARTZ36I Ori ce LP (#54C) SRV582-854 Ori ce NG (#39C) 582-839 QUARTZ42I Ori ce LP (#53C) 582-853 Additional service part numbers appear on following page. Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
- Page 26 Conversion Kit LP LPKQUARTZ42 Pilot Ori ce NG SRV593-528 Pilot Ori ce LP SRV593-527 Compatible only Regulator LP with eld converted SRVLPK-DXV (to LP) 750-500 Regulator NG SRVNGK-DXV Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
-
Page 27: Contact Information
6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7074035, 7098269, 7258116, 7322819, 7470729, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945D Printed in U.S.A. - Copyright 2018 Majestic • QUARTZ32, QUARTZ36, QUARTZ42 Owner’s Manual • 2412-981 Rev. G • 5/18...
