Dynojet Power Commander V Installation Manual page 3

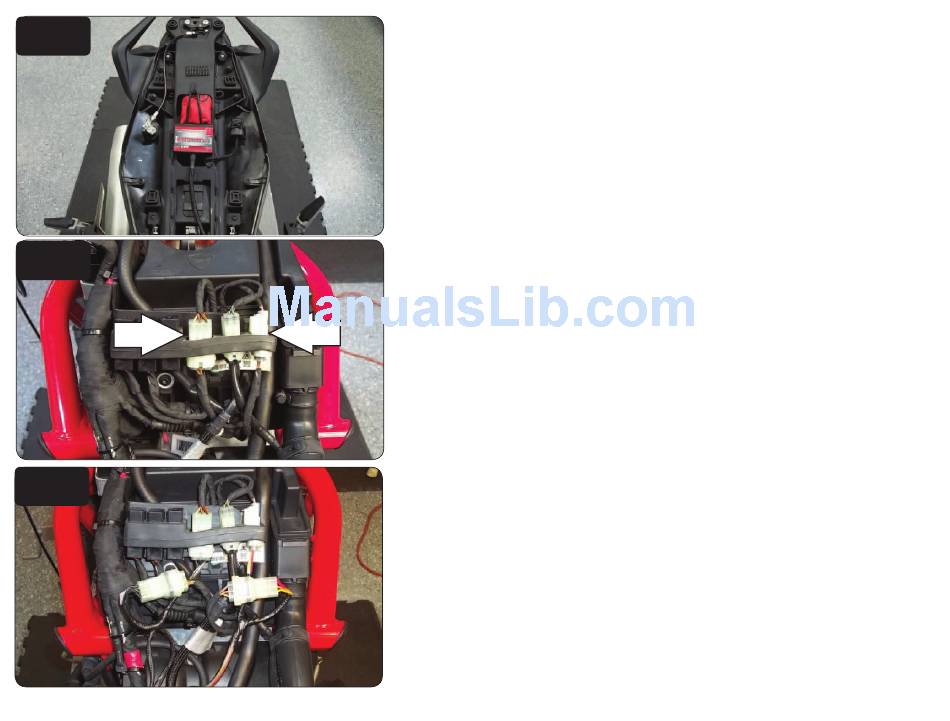

FIG.A
FIG.B
FIG.C
14-026 www.powercommander.com
1 Remove the seat and lift the fuel tank up.
2 Lay the PCV in the tail section and route down the left side of the frame and go
towards the air box.
3 Unplug the 6 pin connector on the left shown in Figure A.
4 Unplug the 3 pin connector on the right shown in Figure A.
5 Plug the PCV in-line of the stock wiring (Fig. C).
6 Route the remaining connectors from the PCV down the right side of the
engine.
14-15 Ducati M1200 - PCV F/I - 3
