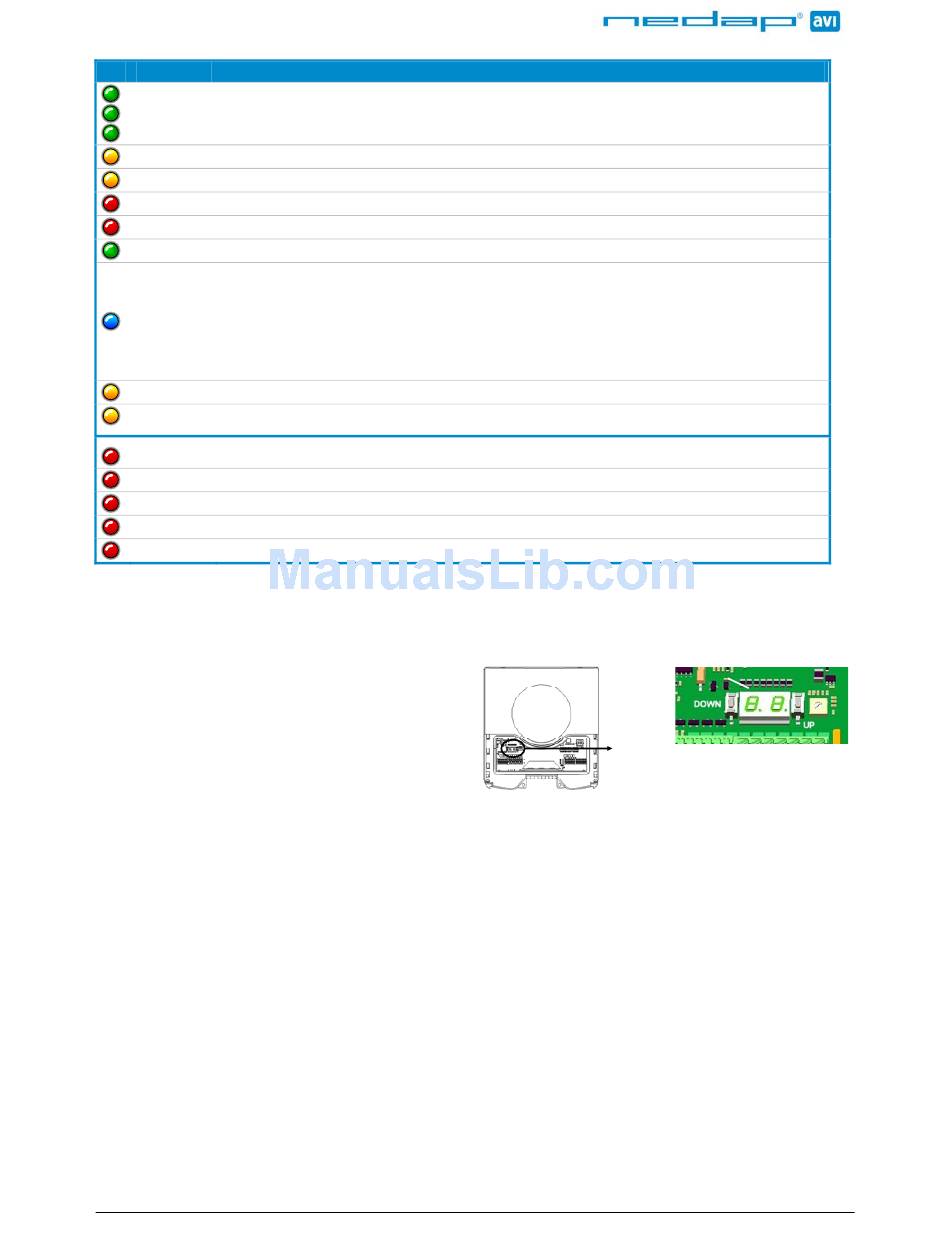

TRANSIT Entry Quick Reference
LED
Description
LED bar indicating the received tag signal strength. This LED bar may also indicate the
RX LEVEL
presence of radio interference. In case of interference, try switching to a different frequency.
RDIS
Read Disable LED. On while reading disabled.
IN1
Input 1 status. On when input 1 contact is closed.
TXD
Transmit serial data (RS232, RS422, USB, I/F-board).
RXD
Receive serial data (RS232, RS422, USB, I/F-board).
ID
Identification. Blinks fast when a valid transponder is identified.
Status LED.
System's heartbeat (0.8 sec on / 0.8 sec off). Indicates that the power is on and the
processor is running.
STS
Bootloader says hello. Indicated after a restart.
Configuration menu active.
Abnormal situation.
SQ-ENA
Squelch enabled.
SQ-ACT
Squelch active.
DC-HI
Power supply voltage too high.
DC-LO
Power supply voltage too low.
DC-FAIL
Internal supply voltage failure.
T-CRIT
Temperature critically high.
PLL UL
PLL unlocked. Try switching to a different frequency.
Table 1: LED indicators

Step 8 Frequency selection

The TRANSIT Entry reader operates in the
2.45GHz frequency band. When two or more
readers are within a range of 15 meters (50 feet),
these readers should be set on a different
operating frequency. The selected frequency has
to comply with local radio regulations.
1) Press the UP or DOWN switch once.
2) The display will show a value indicating
the currently selected frequency.
3) Lookup the display value for the actual
operating frequency is.
4) When the display is on, press the UP
switch to select a higher frequency and
press the DOWN switch for a lower
frequency.
5) The display will automatically switch off
after 5 seconds.
TRANSIT Entry Quick Installation Guide
DISPLAY
Page 6 of 7
