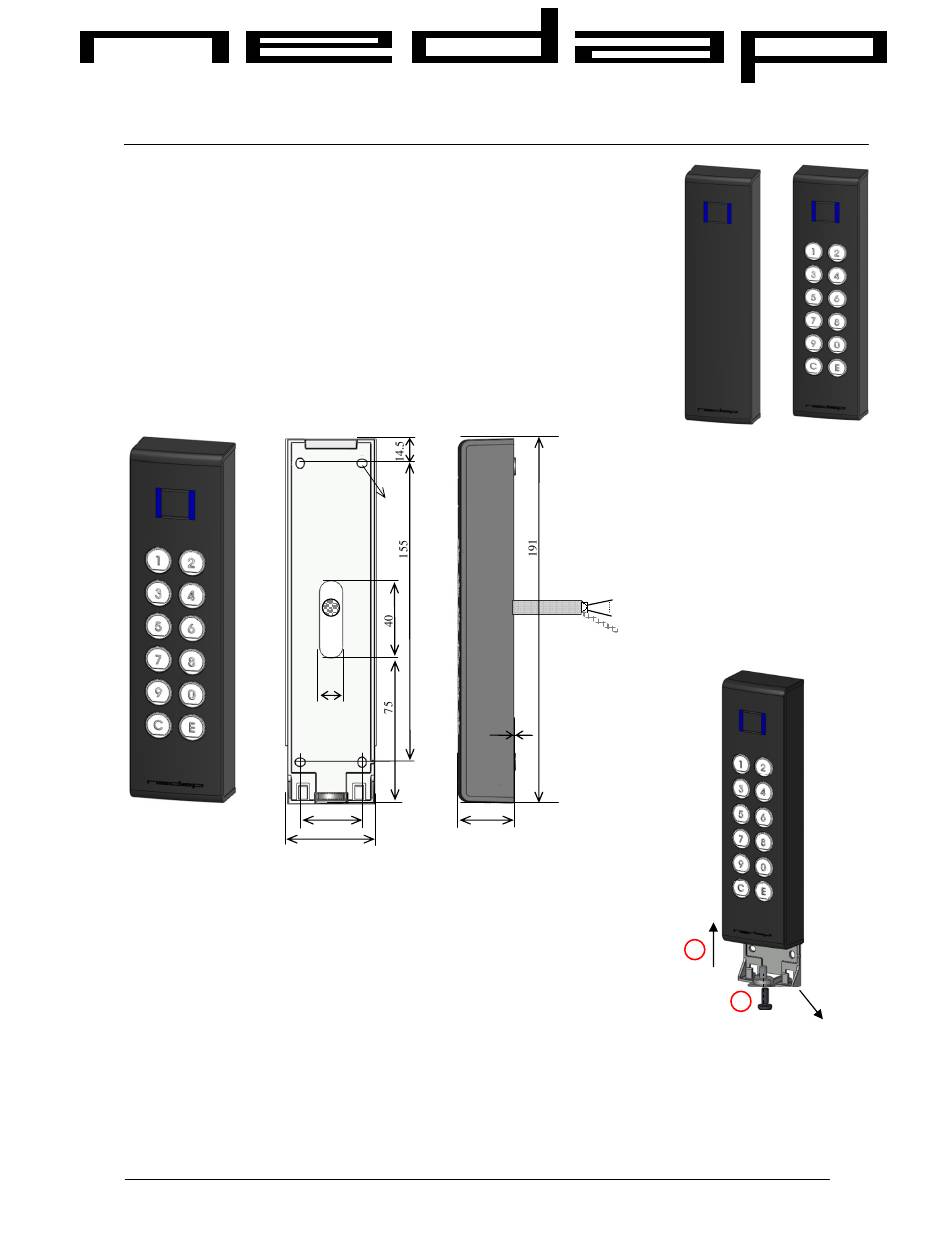

Nedap Cube Card Reader 190 Install Manual

GENERAL

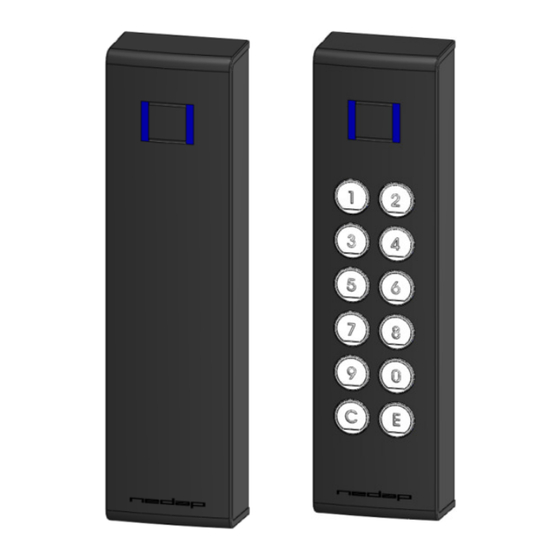

The Cube card reader 190 series is capable of reading Mifare and DESFire
credentials due to its dual reader technology. The Cube card reader 190 is
designed to be used on door pillars (mullion) and suitable for outside and
inside use. A model with keypad is also available.
Functionality and output is determined by the configuration of the Cube card
reader. The configuration is defined using the programm AEmon, and
deployed via AEmon.
Three LEDs (red, green, blue) and beeper are included. LEDs around the
keypad ciphers light up only in case a PIN code is requested.
The pigtail cable can be lead directly backwards.
DIMENSIONS
Note: drawing dimensions are in mm
MOUNTING PROCEDURE 190
For mounting the Cube card reader 190, the mounting plate must be placed
on the wall first.
For removing the mounting plate from the Cube card reader 190, unscrew
the screw (1) (Torx, M5) at the bottom of the Cube card reader 190 and push
the Cube card reader 190 slightly up (2). The plate can be mounted using the
4 holes
.
Place the cable to the correct position and replace the Cube card reader 190.
Date: 08 April 2013 Version: B
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other
right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without
Cube Card Reader 190
Nedap Mifare readers
4 x 5
12
32 30
50
Dimensions: 7.52 x 2 x 1.2 in.
4 mounting holes available at 1.26 x 6.1in
Cable pigtail: 10 x 26AWG shielded, 10 ft
Optional spacer (max thickness 0.4 in) is
available for other cable outlet (top or
bottom)
10 x 26AWG
Shield
1
2
Push up
®
Install manual
1
Un screw
Mounting
plate
Part.no.: 9209735
