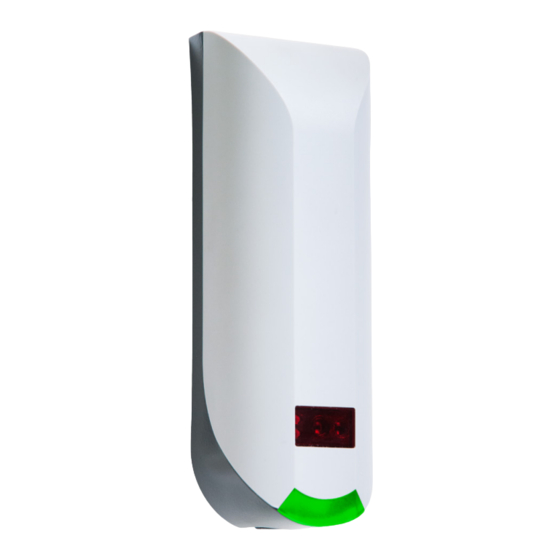

- Page 1 MACE MM (QR) installation guide 2016-08-18 | v1.5 | 5285852...
-
Page 2: Table Of Contents
3.2.2 USB _____________________________________________________ 7 3.2.3 WIEGAND ________________________________________________ 8 3.2.4 MAGSTRIPE ISO7811/2 ____________________________________ 9 LED CONTROL _________________________________________________ 10 TAMPER SWITCH _______________________________________________ 11 NEDAP ANTENNA INTERFACE _____________________________________ 11 4 READER CONFIGURATION ______________________________________________ 12 CONFIG SOFTWARE _____________________________________________ 12 OPTIONS ______________________________________________________ 13 4.2.1 USER MODE _____________________________________________ 13 4.2.2 SEND CONFIG ___________________________________________ 13... -
Page 3: Introduction
2016 and 2017. If you need assistance or require any option other then found in this guide, • please consult with your Nedap representative. There is a lot of variation in performance and characteristics of Bluetooth • and NFC communication across the wide range of phones that are available today. -
Page 4: Installation
To be sure of safety, do not modify or add anything to the MACE other than • mentioned in this installation guide or indicated by NEDAP N.V. MOUNTING INSTRUCTIONS The MACE can be mounted to any surface, including directly to metal. See the picture below for details about the dimensions. - Page 5 MACE | INSTALLATION GUIDE Installation Mount the base-plate on the required location. Ensure that it is placed correctly covering the cable entry hole. Properly fix the base- plate into its position using the 2 screws. When mounting on a stone or concrete wall drill 5mm holes for the plugs.
-
Page 6: Connections
GRY/PNK Tamper switch (common) Led_UL_IN, Led_NA_IN and RED/BLU Led_UL_IN* Beeper_IN are inputs that WHITE Led_NA_IN* are active LOW. PURPLE Nedap antenna interface. Connect to ANT. BLUE Beeper_IN* SHIELD Shield Note: Extending this connection POWER SUPPLY beyond the 5 meter pig tail The MACE requires DC power supply in the range from 12 –... -
Page 7: Usb
MACE | INSTALLATION GUIDE Connections 3.2.2 USB The MACE reader features an USB interface for service, installation and firmware upgrade purposes. The Mini-USB connector is located on the bottom of the device and can only be reached when the bottom screw is opened and the MACE is lifted away from the base-plate. -
Page 8: Wiegand
MACE | INSTALLATION GUIDE Connections 3.2.3 WIEGAND The Wiegand and Magstripe ISO7811/2 (clock & data) interface share the same connections. This means that only Wiegand or Magstripe can be used and not both simulaneously. Wiegand connections: Note GRAY Extending these PINK connections beyond the 5 BLACK... -
Page 9: Magstripe Iso7811/2
MACE | INSTALLATION GUIDE Connections 3.2.4 MAGSTRIPE ISO7811/2 The Magstripe ISO78122/2 (clock & data) and Wiegand interface share the same connections. This means that only Wiegand or Magstripe can be used and not both simulaneously. Magstripe connections: Note GRAY Extending these PINK connections beyond the 5 BLACK... -
Page 10: Led Control
MACE | INSTALLATION GUIDE Connections LED CONTROL The built-in high intensity LED provides visual feedback that the tag has been read or authorized. The LED and buzzer can be controlled by the access control system. Automatic mode: Default the MACE will automatically control the LED. During stand-by the LED will be BLUE and upon identification it will be GREEN. -
Page 11: Tamper Switch
Max. switching voltage +24 VDC NEDAP ANTENNA INTERFACE Note The Nedap antenna interface is used to connect the MACE to NEDAP AEOS access control hardware such as the AP1001. Instead of proximity antenna the MACE can be Extending this connection connected. -
Page 12: Reader Configuration
It’s always a good practice to save the configuration into a file for future reference or when requesting technical assistance from Nedap or its business partners. CONFIG SOFTWARE The MaceConfigTool software allow to configure all settings for the MACE reader. -
Page 13: Options
MACE | INSTALLATION GUIDE Reader configuration OPTIONS The options menu gives access to various Mace reader configuration options. 4.2.1 USER MODE Select user mode simple or avanced to adjust the user interface. 4.2.2 SEND CONFIG Send configuration to reader. This options will send all configuration settings to the reader and saves them into non-volatile memory of the reader. -
Page 14: Settings
*** Advanced user mode settings; Antenna modulation This setting is only used for the Nedap antenna interface. See chapter 3.5. The setting defines how often the id number is sent on the antenna interface. Default settings is 30 cycles, which corresponds to ± 1 sec. -
Page 15: Reader Settings
MACE | INSTALLATION GUIDE Reader configuration READER SETTINGS 4.4.1 BLE The Mace Bluetooth low energy (BLE) reader is a single mode Bluetooth Smart reader that complies with the Bluetooth Core specification 4.1. The Bluetooth reader implements the peripheral role. Enable Enable the MACE BLE module. -
Page 16: Nfc
MACE | INSTALLATION GUIDE Reader configuration 4.4.2 NFC Near Field Communication (NFC) is a wireless communication technique operating on 13 MHz. Read range is only few centimeters. NFC is currently not supported on Apple iOS. On Andriod at least version 4.4 (KitKat) is required. Enable Enable the MACE NFC reading. -
Page 17: Qr-Code
MACE | INSTALLATION GUIDE Reader configuration 4.4.3 QR-CODE The barcode scanner can be used to read MACE QR-codes or any other barcode. The MACE QR-codes are mainly used when BLE or NFC is not possible, but besides that it is a user friendly and comfortable method of identification. Custom barcodes should contain an id-number in hex notation. -
Page 18: Desfire
MACE | INSTALLATION GUIDE Reader configuration 4.4.4 DESFIRE The MACE Reader features also a universal smartcard reader. It also supports reading Desfire (EV1) cards. This can be used to read existing physical Desfire cards. *** Advanced user mode settings; Enable Enable to read custom Desfire cards. -
Page 19: Mifare
MACE | INSTALLATION GUIDE Reader configuration 4.4.5 MIFARE The MACE Reader features also a universal smartcard reader. It also supports reading Mifare Classic, Mifare Ultralight and Mifare Plus cards (SL3) cards. This can be used to read existing physical Mifare cards. *** Advanced user mode settings;... -
Page 20: Other Id Types
120/125 kHz. Enable the individual RFID card types as mentioned below. *** Advanced user mode settings; Nedap XS Enable reading Nedap XS cards (default enabled). These tags are programmed with a CF, DF or GF customer code. Optionally enable the customer code check. See chapter 4.3.1. -
Page 21: Communication Output
'00' RAW '08' MACE UID64 '10' MACE UUID128 '45' EM4200 '4E' Nedap XS '4F' Nedap RW80 '57' Wiegand ID number Select to output the id-number complete, left aligned or right aligned. When left or right aligned specify the id-length and offset in bits. -
Page 22: Wiegand/Magstripe
MACE | INSTALLATION GUIDE Reader configuration Example: MACE UID64 on BLE: '40050108B03BF925E6F04D34'<CR><LF> 4.5.2 WIEGAND/MAGSTRIPE The wiegand/magstripe communication output defines the format of the wiegand/magstripe message that is transmitted upon identification. Note that if the id-number is already programmed in the Wiegand or Magstripe format these settings are not used. - Page 23 MACE | INSTALLATION GUIDE Reader configuration Wiegand configuration example: The configuration shown below will generate a Wiegand 26-bit message with facility-code 10. The id-number uses the 16 least significant bits (right aligned). Mace UID64 B03BF925E6F04D34 id-number 0x4D34 = 19764. Figure 6: Example wiegand 26-bit configuration 23/30...
-
Page 24: Magstripe
MACE | INSTALLATION GUIDE Reader configuration Magstripe Select Magstripe to configure the magstripe message output format. Wiegand output message format: <0xB><prefix><id-number><suffix><0xF><LRC> Add start, stop-sentinel and LRC According to the Magstripe ISO7811/2 standard the messages should begin with a start-sentinel (0xB) and finish with an stop-sentinel (0xF) and LRC checksum. Add preamble and postamble clocks If enabled the Magstripe output will generate 16 preamble clock cycles before the message and and 16 postamble clock cycles afterwards. - Page 25 MACE | INSTALLATION GUIDE Reader configuration Magstripe configuration example: The configuration shown below will generate a Magstripe message. The id-number uses the 6 least significant hex digits (right aligned) and they are converted to 8 decimal digits. Mace UID64 B03BF925E6F04D34 id-number 0xF04D34 = 15.748.404. After adding the start, stop-sentinel and LRC this results in message: B15748404FB Figure 7: Example magstripe configuration...
-
Page 26: Atechnical Specifications
MACE | INSTALLATION GUIDE Technical Specifications TECHNICAL SPECIFICATIONS Technical information Mace reader MM (QR) Operating frequency Bluetooth low energy 2.402 – 2.480 GHz NFC & smartcards: 13.56 MHz Proximity cards: 120 kHz Dimensions 150 x 50 x 40 mm [ 5.9 x 2 x 1.6 inch ] Weight 0.5 kg [ 1.1 lbs ] Housing... -
Page 27: Bpart Numbers
MACE | INSTALLATION GUIDE Part Numbers PART NUMBERS Readers Part number Description 9565523 MACE MM 9565531 MACE MM QR 27/30... -
Page 28: Cfcc And Ised Declarations
MACE | INSTALLATION GUIDE FCC AND ISED DECLARATIONS FCC AND ISED DECLARATIONS FCC ID: CGDMACER1 and IC: 1444A-MACER1 FCC (15.19) and ISED Compliance statement This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 29: Ddisclaimer
MACE | INSTALLATION GUIDE Disclaimer DISCLAIMER This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no license under any patent or other right, nor does the publisher assume liability for any consequence of its use;... -
Page 30: Edocument Revision
MACE | INSTALLATION GUIDE Document revision DOCUMENT REVISION Version Date Comment 2016-08-18 Power supply specifications updated 2016-08-18 Added FCC and ISED declarations 2016-08-08 BLE note added when changing ranging profile 2016-07-15 Added simple and advanced user mode settings 2016-07-07 Added reader configuration chapter 1..0 2016-06-21 First preliminary release...
