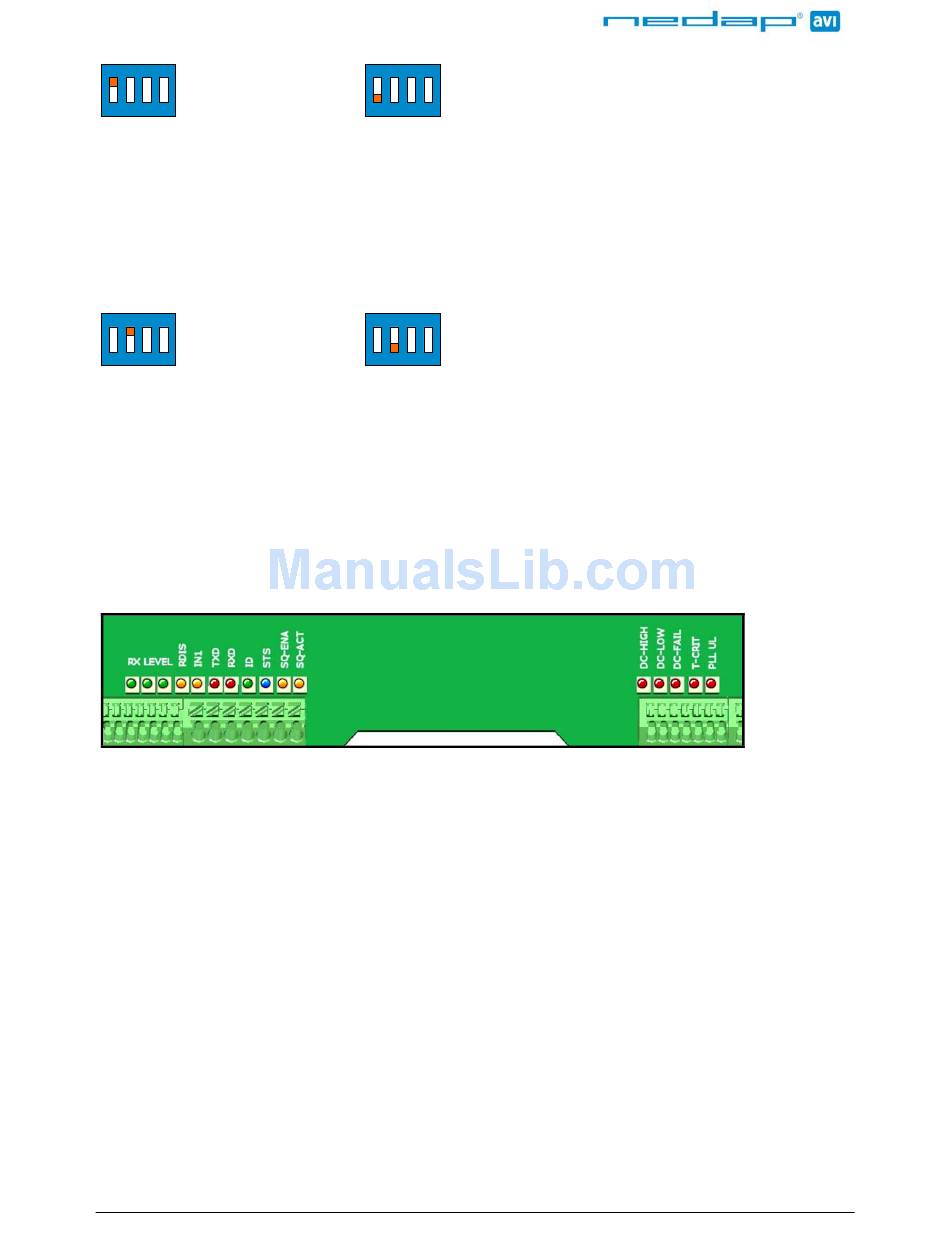

6.2 RS232 / RS422 Selection
On-board RS232 or RS422 interface selection.
ON
SW1
1 2 3 4
On-board RS232 interface enabled.
Note: The on-board RS232 and RS422 interfaces are both disabled when the USB connector is in use
or when the TCP/IP interface board is installed.
6.3 Unused DED SW1-3 and SW1-4
The switches SW1-3 and SW1-4 are reserved for future use. It is recommended to leave these
switches in the ON position.

Step 7 LED indications

A number of LED's indicate the current status of the TRANSIT Entry reader.
Table 1 describes the function of each LED.
TRANSIT Entry Quick Installation Guide
ON
SW1
1 2 3 4
Range beeper OFF
ON
SW1
1 2 3 4
On-board RS422 interface enabled.
