Summary of Contents for Extech Instruments RC100

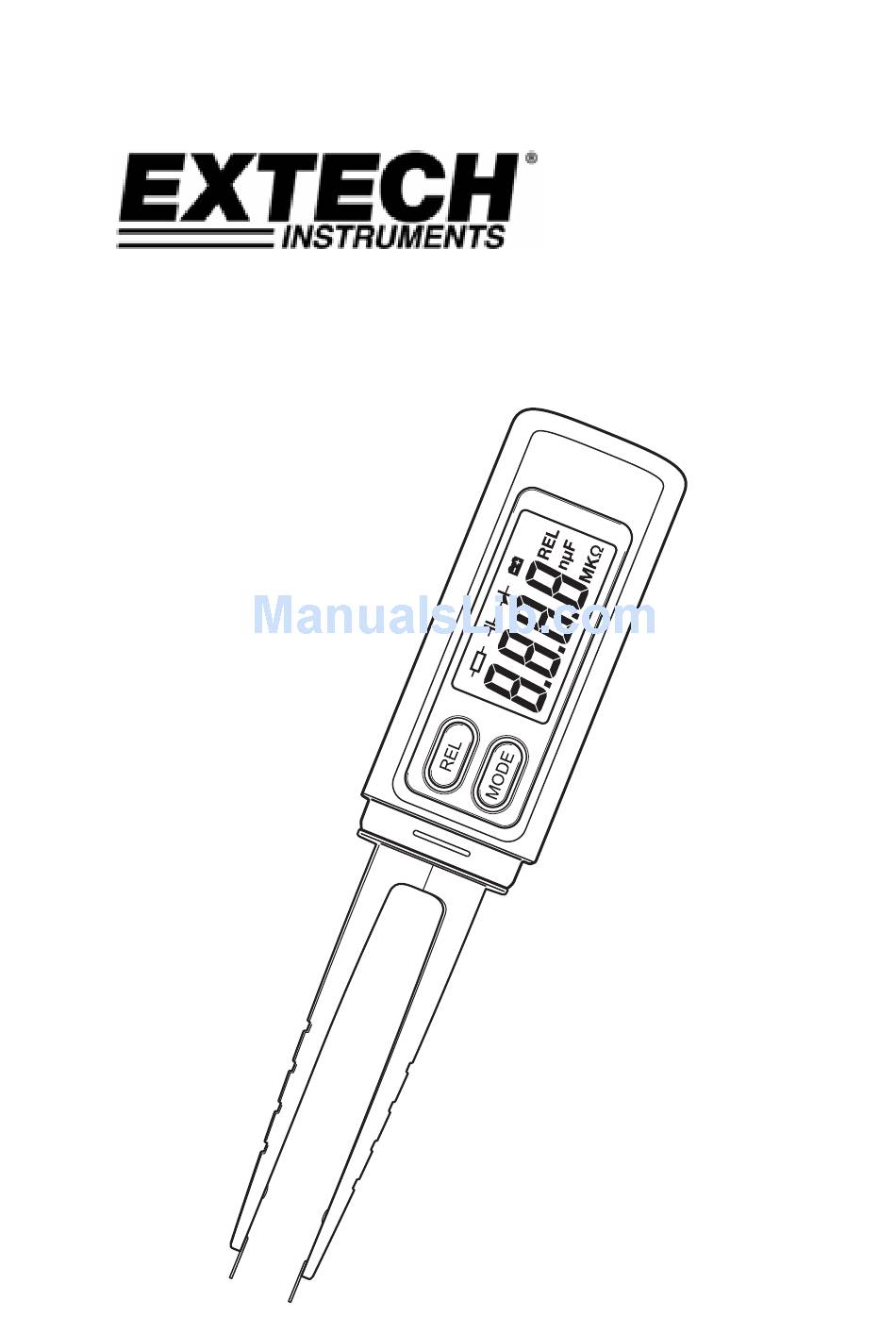

- Page 1 User's Guide R/C SMD Tweezers Model RC100...
-
Page 2: Precautions And Safety Measures
Introduction Congratulations on your purchase of the Extech RC100 SMD Tweezers. This device offers rapid and accurate capacitance and resistance measurements of chip components. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. -
Page 3: Product Description
www.burntec.com Product Description Cathode “-“ input (negative) Anode “+” input (positive) POWER and MODE key This key is used to power the meter and to select the measurement function. Press the key for >4 seconds to turn power off. REL key Press this key once to enter into the Relative mode, press again to return to the normal mode. -
Page 4: Operation
www.burntec.com Operation Resistance To avoid electrical shock or damage to the meter, disconnect circuit power and discharge all high-voltage capacitors before measuring resistance. Press the MODE key to select the mode. Connect the test tips to the object being tested and read the measured value on the display. -
Page 5: Specifications
www.burntec.com Diode measurement To avoid electrical shock or damage to the meter, disconnect circuit power and discharge all high-voltage capacitors before testing diodes. Press the MODE key to select the mode. Connect the + tip to the anode and the - tip to the cathode of the diode under test. - Page 6 www.burntec.com Range specifications ° * Accuracy: ±(% of reading + number of digits) at 18 ° ° ° to 28 C (64 F to 82 F) with relative humidity to 80%. Caution: Don't use this device if the working voltage is above 50V DC or 36 V AC rms. Resistance Range Resolution Accuracy...
-
Page 7: Maintenance
(AG13). 3. Replace the battery cover. Warranty EXTECH INSTRUMENTS CORPORATION warrants the basic instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the... -
Page 8: Calibration And Repair Services
Repair & Returns: Ext. 210; E-mail: repair@extech.com Product specifications subject to change without notice For the latest version of this User’s Guide and other up-to- the-minute product information, visit our website: www.extech.com Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451 RC100 V1.0 4/07...
