Edimax ES-5804PH User Manual

5 Port with 4 Port PoE
Fast Ethernet Switch
User's Manual

FCC Warning

This device has been tested and found to
comply with limits for a Class A digital device
and pursuant to Part 15 of FCC Rules.
These limits are designed to provide a
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This equipment
generates and radiates radio frequency
energy. If it's not installed and used in
accordance with the user's manual, it may
cause interference. In which case, users will
be required to correct interference at their
own expenses.

CE Warning

This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.

Introduction

This switch provides 5 10/100M ports. It was
designed for easy installation and high
performance in an environment where traffic
is on the network and the number of users
increases continuously.
It consists of 4 PSE/PoE ports. That can solve
the limitation of the power outlet location and
offer the system designer a flexible solution to
locate the network device everywhere.
The palm size was specifically designed for
small to medium workgroups. It can be
installed where space is limited; moreover, it
provides smooth network migration and easy
upgrade to network capacity.

Package Contents

Before you start to install this switch, please
verify your package that contains the following
items:
 One 5-port Switch with 4 PSE
 One User's Manual
 One Power Adapter
 One Power Cord
Note: If any of these items is found missing or
damaged, please contact your local supplier
for replacement.

Key Features

 5 Port 10/100M (Auto-negotiation) Switch
 4 PSE/PoE function ports
 IEEE 802.3 at
 Supporting the power Max. 30 W for each
PSE/PoE port
 Palm with metal case with external power
 Auto-detect full/half-duplex modes for any
port
 Dedicated full-duplex 200Mbps bandwidth
 Store-and-Forward switching methods
 IEEE 802.3x flow control for full-duplex and
back-pressure flow control for half-duplex
 Non-blocking full wire speed forwarding
 Auto-MDI/MDI-X function for any port

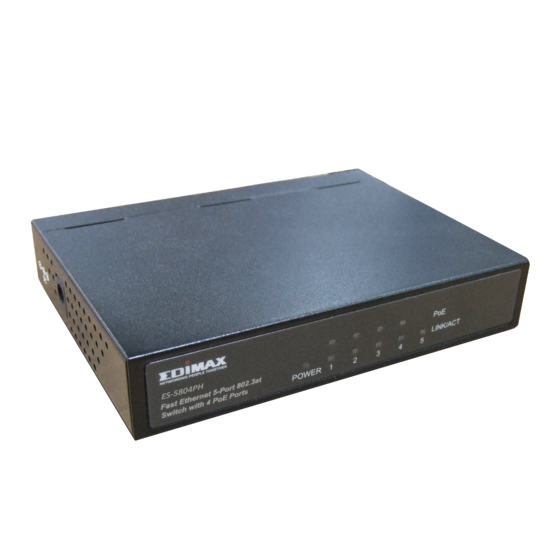

Front Panel (LEDs)

LED Indicator of 5-port PoE switch
LED Status Description
Power On Power is on.
Off Power is off.
LINK/ACT On Port is for connection.
Off No connection.
Blinking Data is transmitting or
receiving
PoE On Port is linked to Power
Device
Off No Power Device is
connected

Connections

Switch/Hub to this 5 Port with 4 Port
PoE Fast Ethernet Switch
This switch provides automatic crossover
detection functionality for any port.
simple and friendly to up-link to another switch
without crossover cable.
It is
