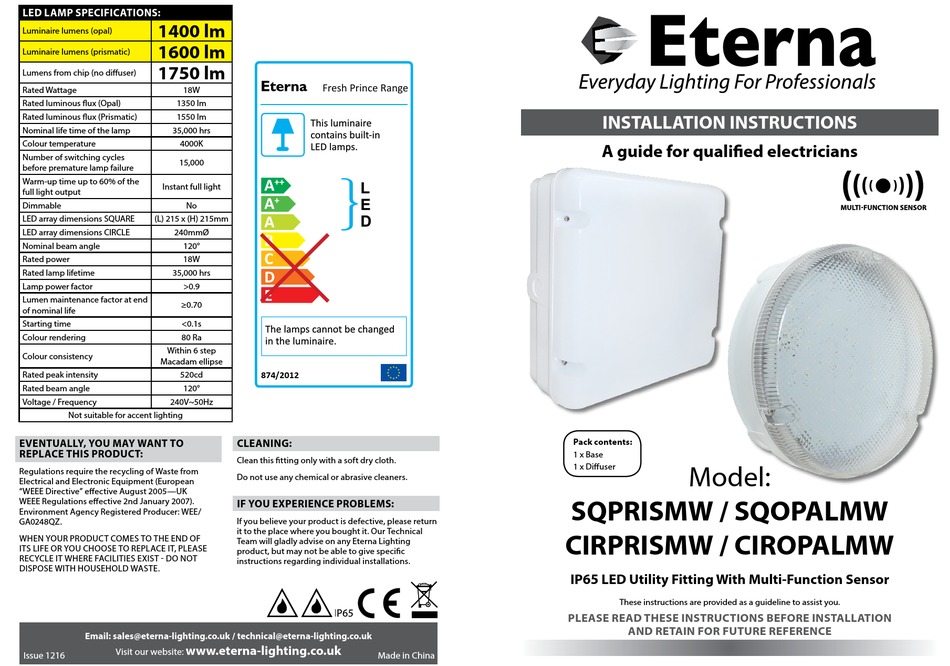

Eterna SQPRISMW Installation Instructions

LED LAMP SPECIFICATIONS:
1400 lm
Luminaire lumens (opal)
1600 lm
Luminaire lumens (prismatic)
1750 lm
Lumens from chip (no diffuser)
Rated Wattage 18W
Rated luminous flux (Opal) 1350 lm
Rated luminous flux (Prismatic) 1550 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 4000K
Number of switching cycles
15,000
before premature lamp failure
Warm-up time up to 60% of the
Instant full light
full light output
Dimmable No
LED array dimensions SQUARE (L) 215 x (H) 215mm
LED array dimensions CIRCLE 240mmØ
Nominal beam angle 120°
Rated power 18W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end
≥0.70
of nominal life
Starting time <0.1s
Colour rendering 80 Ra
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity 520cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 1216
MODELNO.
Fresh Prince Range
874/2012
CLEANING:
Clean this fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
Made in China
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Pack contents:
1 x Base
Model:
1 x Diffuser
SQPRISMW / SQOPALMW
CIRPRISMW / CIROPALMW

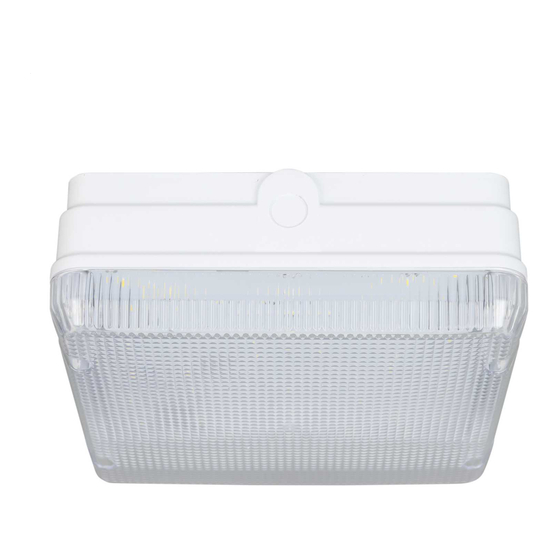

IP65 LED Utility Fitting With Multi-Function Sensor
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
