Summary of Contents for Keithley 1600A

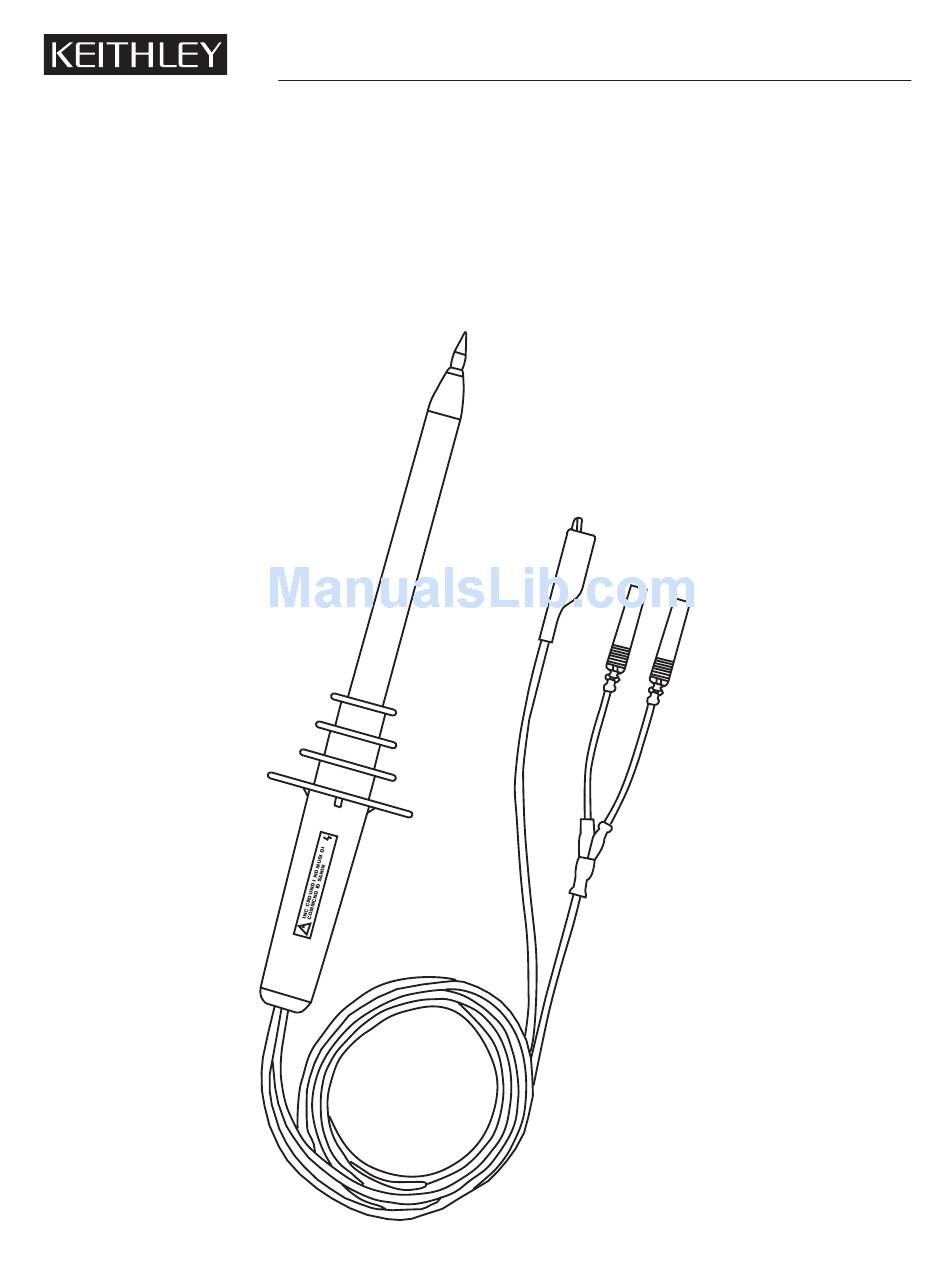

- Page 1 Model 1600A High Voltage Probe Keithley Instruments, Inc. User’s Guide 28775 Aurora Road Cleveland, Ohio 44139 (440) 248-0400 www.keithley.com PA-148 Rev. A / 09-05...
-
Page 2: Safety Precautions
WARNING This high voltage probe is designed to prevent accidental shock to the operator when properly used. This operating note must be read and fully understood prior to using the probe. Specifications Approx. 1000m Ω Input resistance: Division ratio: 1000:1 Maximum working voltage: 40KV DC or Peak AC, 28KV RMS AC Accuracy:... - Page 3 WARNING This ground connection is critical to the safe operation of the probe. Failure to make this connection when making high voltage measurements may result in personal injury or damage to the probe or voltmeter. This connection must always be made BEFORE the probe tip comes into contact with the high voltage and must not be removed until after the probe tip has been removed from the high voltage source.
