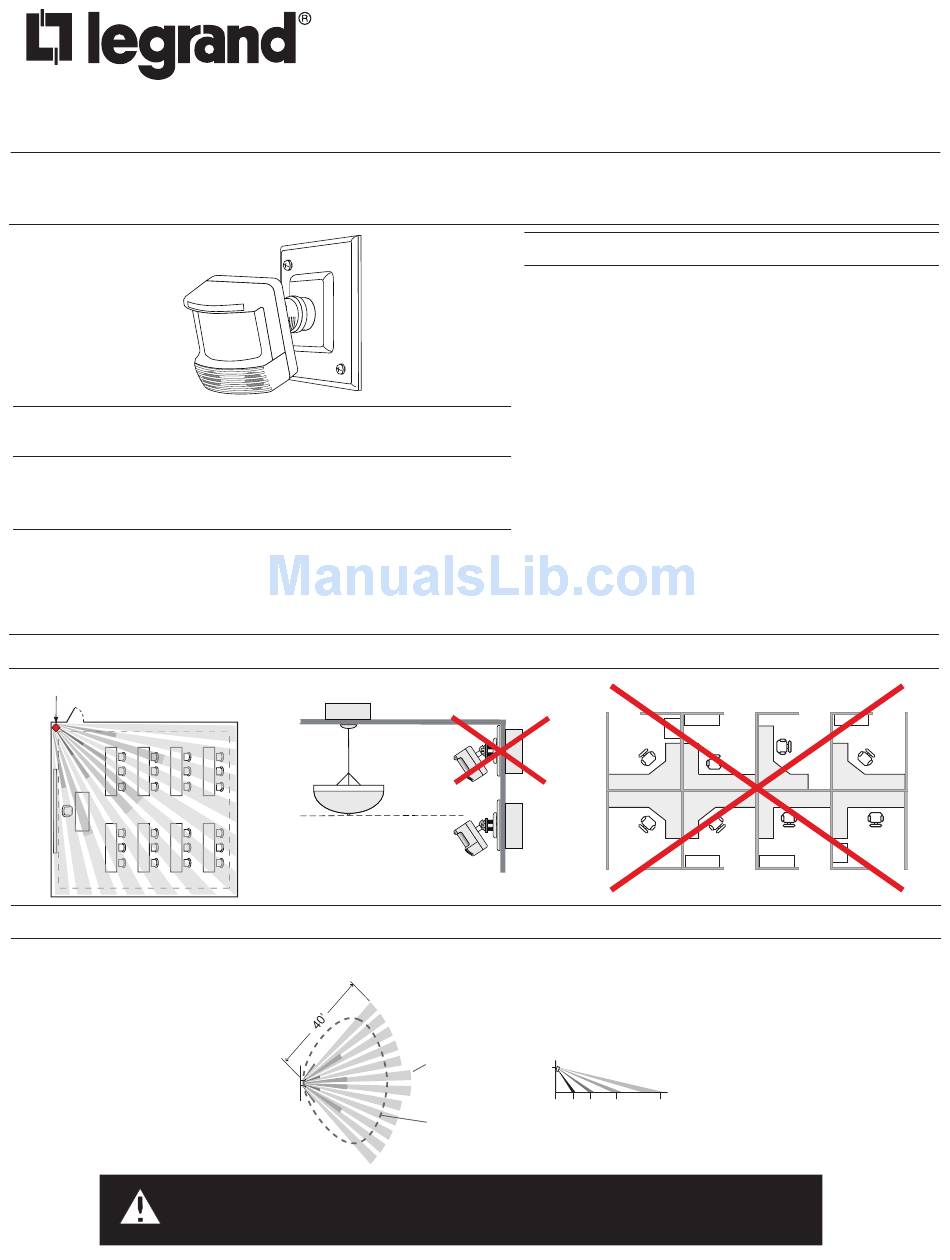

LEGRAND Wattstopper LMDX-100 Installation Instructions

No: 24598 – 09/16 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMDX-100
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
LMDX-100 -U is BAA and TAA compliant (Product produced in the U.S.)
This unit is pre-set for Plug n' Go™ operation, adjustment is
optional.
For full operational details, adjustment and more features of the product, see the
DLM System Installation Guide provided with Wattstopper room controllers, and
also available at www.legrand.us/wattstopper.
Installation shall be in accordance with all applicable regulations, local and
NEC codes. Wire connections shall be rated suitable for the wire size (lead and
building wiring) employed.
For Class 2 DLM devices and device wiring: To be connected to a Class 2 power
source only. Do not reclassify and install as Class 1, or Power and Lighting Wiring.
Sensor
Coverages shown are maximum and represent half-step walking motion.
CAUTION: TO CONNECT A COMPUTER TO THE DLM LOCAL NETWORK USE THE LMCI-100.
NEVER CONNECT THE DLM LOCAL NETWORK TO AN ETHERNET PORT – IT MAY
SENSOR PLACEMENT
30'
30'
COVERAGE PATTERN
Top view
DAMAGE COMPUTERS AND OTHER CONNECTED EQUIPMENT.
Wattstopper

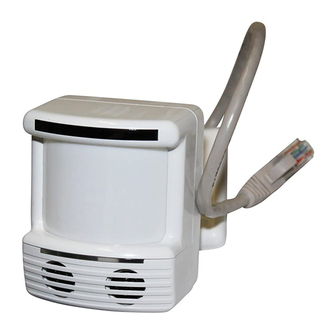

DLM Dual Technology Corner Mount Occupancy Sensor
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Voltage .............................................................................. 24VDC
Current Consumption ...........................................................20mA
Power Supply ................................Wattstopper Room Controllers
Connection to the DLM Local Network ........................ RJ-45 plug
DLM Local Network characteristics when using LMRC-11x/2xx
room controllers:
Low voltage power provided over Cat 5e cable (LMRJ);
max current 800mA. Supports up to 64 load addresses,
48 communicating devices including up to 4 LMRC-10x
series and/or LMPL-101 controllers.
Free topology up to 1,000' max.
Environment ................................................. For Indoor Use Only
Operating Temperature .................32° to 131°F (0° to 55°C)
Storage Temperature ...................23° to 176°F (-5° to 80°C)
Relative Humidity .......................5 to 95% (non condensing)
Patent Pending
Ceiling
Sensor
PIR
10'
coverage
45ft.
0 7' 15' 25'
Ultrasonic
Side view
coverage
28ft.
®

SPECIFICATIONS

45'
