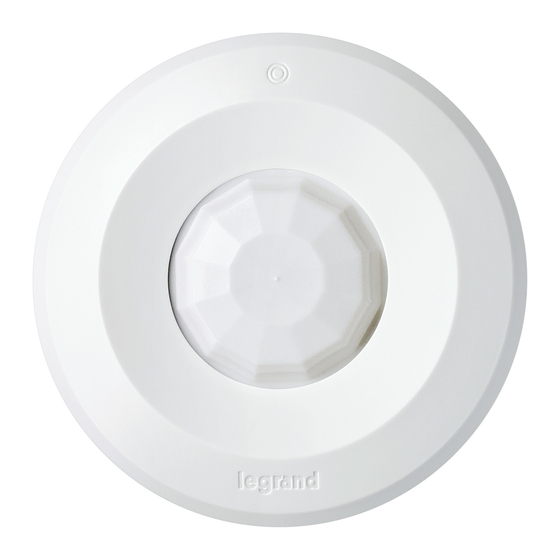

Dlm pir wireless ceiling mount occupancy sensor with ipv6/bluetooth low energy technology
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

No: 27368– 03/20 rev. 4
Catalog Numbers • Numéros de Catalogue • Números de Catálogo: LMPC-600, LMPC-600-1, LMPC-600-5
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Once paired to an LMRC-611 wireless room controller or
LMBC-650 wireless bridge, this unit is set for Plug n' Go
operation, adjustment via the DLM Configuration App
is recommended to meet the local energy code where
installed.
The DLM Wireless ceiling mount sensor is a wireless battery powered
PIR occupancy sensor intended for operation with wireless room
controllers or bridges. Once paired to a wireless room controller, it
detects and monitors the presence of motion to determine if lights
should be on or off.
Sensor
SENSOR PLACEMENT
25'
25'
Wattstopper
DLM PIR Wireless Ceiling Mount Occupancy Sensor
with IPv6/Bluetooth
®
Low Energy Technology
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Power Supply .......................... Battery powered, CR123A Lithium Ion, 3 VDC
Connection to DLM Network ............Wireless via LMRC-611 room controllers
...................................................................................... or LMBC-650
Lens Types
LMPC-600 .............................................Wide Angle/Extended Range
LMPC-600-1 ....................................................................High Density
LMPC-600-5 ..............................................High Bay/Extended Height
Connection to DLM Network ............Wireless via LMRC-611 room controllers
Wireless Radio ........................................ Single, Concurrent 802.15.4 and
....................................................Bluetooth Low Energy, 2.4GHz
Wireless Communication
IPv6 Mesh (6LoWPAN) Range ........................................... up to 60 ft.
Bluetooth low energy Range .............................................. up to 30 ft.
60 ft. max. between LMPC-600 and room controller or bridge
Wireless Encryption ..........................................AES-128 bit symmetric key
Environment ............................................................... For Indoor Use Only
Operating Temperature ...............................32° to 104°F (0° to 40°C)
Storage Temperature .................................23° to 140°F (-5° to 60°C)
Relative Humidity .....................................5 to 95% (non condensing)
Plenum Rating ............................................................................... UL2043
Compliance/Regulatory
FCC, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
Patent Pending
®
SPECIFICATIONS
Pendant
fixture
Sensor
6'
Mount sensor at least 6' away from air supply.
Avoid obstacles that block sensor's line-of-sight.
Strong air
supply
