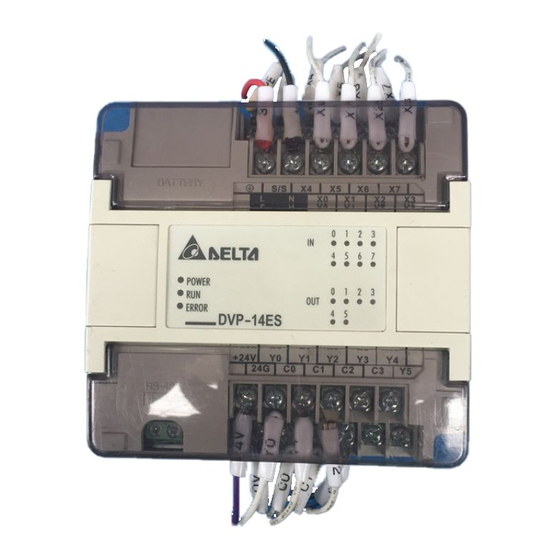

Delta DVP14ES00R2 Instruction Sheet

http://www.delta.com.tw/industrialautomation/
Programmable Logic
DVP-ES/EX
1 WARNING
This Installation Sheet only provides descriptions for electrical specifications, function specifications,
installation & wiring, troubleshooting and peripherals. Other detail infromation about programming and
instructions, please see PLC Application Manual. For more information about the optional peripherals,
please refer to their individual instruction sheet or user manuals.
This is an OPEN TYPE PLC. The PLC should be kept in an enclosure away from airborne dust, high
humidity, electric shock risk and vibration. Also, it should be equipped with protective methods such as
some special tools or keys to open the enclosure, so as to avoid the hazard to users and the damage to
the PLC. The power must be OFF before any maintenance.
Never connect the AC main circuit power supply to any of the input/output terminals, as it will damage the
PLC. Check all the wiring prior to power up. To avoid any electromagnetic noise, make sure the PLC is
properly grounded . Do NOT touch terminals when power on.
2 INTRODUCTION
2.1. Model Name Explanation and Peripherals
Thank you very much for purchasing Delta's DVP-ES/EX Series PLC. DVP-ES/EX Series provide the main
processing units and extension units. The processing units offer 14~60 points and the extension units offer 8~32
points. The maximum input and output can be extended up to 128 points respectively. Also, it can be used on
various applications according to input and output points, power supply, digital input and output modules.
Nameplate Explanation
32ES00R
PLC Model
Input Power Supply Spec.
100~240Vac 50/60Hz 35VA MAX
Output Module Spec.
2.0A 240Vac 50/60Hz RES LOAD
Barcode and Serial Number
MCU Version
VX.XX 32ES00R2T5140004
Model/Serial Number Explanation
DVP 2
2 : Advanced Type
Product Series
Points (Input + Output)
R : Relay
Models T : Transistor
N : No Output Module
E : Main Processing Unit (MPU)
X : Extension Unit
00 :
AC Input
Model Type
H TYPE
S : Standard M : Digital Input
X : A/D, D/A Functions
N : Digital Output
C : Non-extended
P : Digital Input/Output
Peripherals
◎ DVP-HPP Series: Handheld Programmable Panel
◎ WPLSoft: DVP-PLC Programming Software Tool (Windows based software)
◎ DVPACAB115: 1.5M Cable (HPP PLC, provided in DVP-HPP Series)
◎ DVPACAB215: 1.5M Cable (PC PLC)
◎ DVPACAB230: 3.0M Cable (PC PLC)
◎ DVPACAB315: 1.5M Cable (HPP PC)
◎ DVPACAB403: 30cm Cable (Main processing unit Extension unit, or Extension unit
signal extension cable)
2.2. Product Profile and Outline
1. DIN rail clip
2. DIN rail (35mm)
3. Direct mounting holes
4. Communication Ports Cover (RS-232C) 12. Input / Output terminal cover
5. Extension Port indicators
6. Input / Output terminals
7. Input / Output terminals
8. Input / Output indicators
2006-07-04
2.3. DVP-ES/EX Series Models
◎ ES Standard Main Processing Units (MPU-00)
Model Name
5011634301-YIE1
DVP14ES00R2
DVP24ES00R2
DVP32ES00R2
DVP40ES00R2
DVP60ES00R2
DVP14ES00T2
Controller
DVP24ES00T2
DVP32ES00T2
Instruction Sheet
DVP40ES00T2
DVP60ES00T2
◎ ES Standard Main Processing Units (MPU-01,11)
Model Name
DVP14ES01R2
DVP24ES01R2
DVP24ES11R2
DVP32ES01R2
DVP14ES01T2
DVP24ES01T2
DVP32ES01T2
◎ EX Special Function Main Processing Units (MPU-00, MPU-11)
Model Name
DVP20EX00R2
DVP20EX00T2
DVP20EX11R2
◎ Digital I/O Extension Unit for DVP-ES/EX Series- 00
Model Name
DVP24XN00R
DVP24XP00R
DVP32XP00R
DVP24XN00T
DVP24XP00T
DVP32XP00T
2 T 5 14 0004
◎ Digital I/O Extension Unit for DVP-ES/EX Series- 01 (L TYPE)
Production series
Production week
Model Name
Production year (2005)
DVP16XM01N
Production plant (Taoyuan)
DVP16XN01R
Serial number of version
DVP24XN01R
Production Model
DVP24XP01R
DVP32XP01R
DVP16XN01T
DVP24XN01T
DVP24XP01T
DVP32XP01T
◎ Digital I/O Extension Unit for DVP-ES/EX Series-11 (H TYPE)
01 : 11 :
DC Input DC Input
Model Name
L TYPE H TYPE
DVP08XM11N
DVP16XM11N
DVP08XN11R
DVP16XN11R
DVP24XN11R
DVP08XP11R
DVP24XP11R
DVP32XP11R
DVP08XN11T
DVP16XN11T
Extension I/O
DVP24XN11T
DVP08XP11T
DVP24XP11T
DVP32XP11T
9. Input / Output
10. Status indicators: POWER, RUN, and
3
ERROR
11. Input / Output terminal cover
3.1. Function Specifications
Items
13. Input / Output terminal nameplate
panel Control Method
14. Input / Output terminal nameplate
I/O Processing Method
panel
15. RS-485 communication port
Execution Speed
Program Language
Input Unit Output Unit
Power Profile Profile Reference
Point Type Point Type
8 6
16 8
Relay
16 16
24 16
100~ DC Sink
36 24
240 or
8 6
VAC Source
16 8
16 16 Transistor
24 16
36 24
Input Unit Output Unit
Power Profile
Point Type Point Type
8 6
16 8
Relay
16 8
DC Sink
24
or
16 16
VDC
Source
8 6
16 8 Transistor
16 16
Input Unit Output Unit
Power
Point Type Point Type
DI AI DI AI DO AO DO AO
8 4 6 2 Relay
100~
-20mA~20
240
DC Sink mA 0~20mA
VAC
or
8 4 or or 6 2 Transistor
Source -10V ~ +10 0～10V
V
24
8 4 6 2 Relay
VDC
Input Unit Output Unit
Power Profile Reference
Point Type Point Type
0 24
Relay
16 8
DC
100~
16 16
Sink
240
or
0 24
VAC
Source
16 8 Transistor
16 16
Input Unit Output Unit
Power Profile Profile Reference
Point Type Point Type
16 0 None
0 16
0 24
Relay
DC
16 8
24 Sink
16 16
VDC or
0 16
Source
0 24
Transistor
16 8
16 16
Input Unit Output Unit
Profile Profile Reference
Power
Point Type Point Type
8 0
None
16 0
0 8
0 16
0 24
Relay
4 4
DC
24 16 Sink 8
VDC or
16 16
Source
0 8
0 16
0 24
Transistor
4 4
16 8
16 16
SPECIFICATIONS
Specifications
Stored program, cyclic scan system
Batch processing (when END instruction
I/O refresh instruction is available
is executed)
Application instructions
Basic commands (several us)
(10 ~ hundreds us)
Instruction, Ladder Logic, SFC Including Step instructions
Items
Program Capacity
Instructions
Initial Step Point
Step Relays
Zero Return Point
(Latched)
General Step Point
General
Auxiliary
Latched
Relays
Special
Timers Digital
General
Counters Latched
High Speed
General
Data Registers Latched
Special
Pointers P
Index Registers E / F
Decimal K
Constants
Hexadecimal H
Serial Communication
Protection Features
Profile Reference
Monitor / Debug
＊ Note: For more information about special relays and data registers, please refer to the Delta PLC Application Manual.
3.2. Electrical Specifications
DVP- DVP-
Model
14ES00 24ES00
Item
□ □
Power Supply
100~240VAC (-15%~10%), 50/60Hz ± 5%
Voltage
The PLC start to operate at power supply of 95~100VAC.
Operation
If the voltage of power supply drops to 70VAC, the PLC will stop.
Specification
Maximum power loss time is 10ms or less.
Fuse
Power
20 VA 25VA
Consumption
DC24V Supply
400mA 400mA
Current
Power
DC24V output short circuit
Protection
Voltage
1500VAC(Primary-secondary), 1500VAC(Primary-PE), 500VAC(Secondary-PE)
Withstand
Insulation
> 5 MΩ at 500VDC (Between all inputs / outputs and earth)
Resistance
ESD: 8KV Air Discharge
Noise Immunity
EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 250V
RS: 26MHz~1GHz, 10V/m
The diameter of grounding wire cannot be smaller than the wire diameter of terminals L and N (All DVP units
Grounding
should be grounded directly to the ground pole).
Operation: 0°C ~55°C (Temperature), 50~95% (Humidity), Pollution degree2; Storage: -25°C ~70°C
Environment
(Temperature), 5~95% (Humidity)
Vibration / Shock
Standard: IEC1131-2, IEC 68-2-6（TEST Fc）/ IEC1131-2 & IEC 68-2-27 (TEST Ea)
Resistance
Weight (g)
400 552
Input Point Type
Input Type DC (SINK or SOURCE)
Input Current 24VDC 5mA
Active Level Off→On above 16VDC
(Analog input resolution)
On→Off below 14.4VDC
Reaction Time
About 10ms (An adjustment range of 0~15ms
(Conversion Sampling Time) could be selected through D1020 and D1021)
Output Point Type
Current Specification
Voltage Specification
Maximum Load
Reaction Time
3.3. AD/DA Specifications
Analog Input (A/D)
Remarks Items
Voltage Input
Analog I/O Range
±10V
Digital Conversion
-512~+511
Range
Resolution
10 bits(1 =19.53125 mV) 10 bits (1
LSB
Input Impedance
> 112 KΩ
Specifications Remarks
3792 Steps Built-in EEPROM
32 basic sequential instructions
107 application instructions
(including STL / RET)
10 points S0~S9
10 points S10~S19
108 points S20~S127
512+232 points M0~M511+M768~M999
256 points M512~M767
280 points M1000~M1279
64 points T0~T63 (100 ms time base)
T64~T126 (10 ms time base, when
63 points
M1028 is ON)
1 points T127 (1 ms time base)
112 points C0~C111
16 points C112~C127
13 points 1 phase 20KHz, 2 phase 5KHz C235~C254 (all latched type)
408 points D0 ~ D407
192 points D408~D599
D1000~D1143、D1256~D1311
200 points
64 points P0~P63
2 points E(=D1028)，F(=D1029)
16 bit: -32768~+32767 32 bit: -2147483648~+2147483647
16 bit: 0000~FFFF 32 bit: 00000000~FFFFFFFF
2 Ports is provided. RS-232C: Program read/write communication port,
RS-485: General function communication port (controlled by RS instruction);
Special drive instructions for Delta AC drive are also supported.
Password, I/O examination, Execution time, Illegitimate instruction or operand
Program execution time display, Bit/Word, Device setting
DVP- DVP- DVP- DVP- DVP- DVP-
DVP- DVP-
32ES00 40ES00 60ES00 20EX00 14ES01 32ES01
24ES□□ 20EX11□
□ □ □ □ □ □
24VDC (-15%~10%)
Maximum power loss time is 5ms or less.
2 A / 250VAC 2 A / 250VAC
30VA 30VA 35VA 30 VA 5.5 W 6.5 W 8 W 8 W
400mA 400mA 400mA 400mA — — — —
DC24V input polarity
580 596 750 536 260 414 430 386
Input Point Electrical Specifications
Digital Input Analog Input (EX)
Voltage input: -10V~+10V, Input Resistance:
112KΩ
Current input: -20mA~+20mA, Input
Resistance: 250Ω
Voltage input: 10bit
Current input: 10 bit
5ms (Time could be adjusted through D1118)
Output Point Electrical Specifications
Relay-R Transistor-T
55°C 0.1A/1point, 50°C 0.15A/1 point
2A/1 point (5A/COM)
45°C 0.2A/1 point, 40°C 0.3A/1 point (2A/COM)
Below 250VAC, 30VDC 30VDC
75VA (Inductive)
9W/1 point
90 W (Resistive)
About 10 ms Off→On 20us On→Off 30us
Analog Output (D/A)
Current Input Voltage Output Current Output
±20 mA 0 ~ 10V 0 ~ 20 mA
-512~+511 0 ~ 255 0 ~ 255
=39.0625 μA) 8 bits(1 =39.0625 mV) 8 bits (1 =78.125 μA)
LSB LSB LSB
250Ω
－
