Technical information on this manual is property of XMART
▪
or partially without written approval of XMART.
XMART can introduce modifications in their products or manuals without further notice.
▪
XMART is not responsible of mistakes or missing information in this manual.
▪
XMART is not responsible for wrong use a third part can do of this information.
▪
Trademarks and logos in this manual are property of their owners.
▪
www.xmart-ups.com

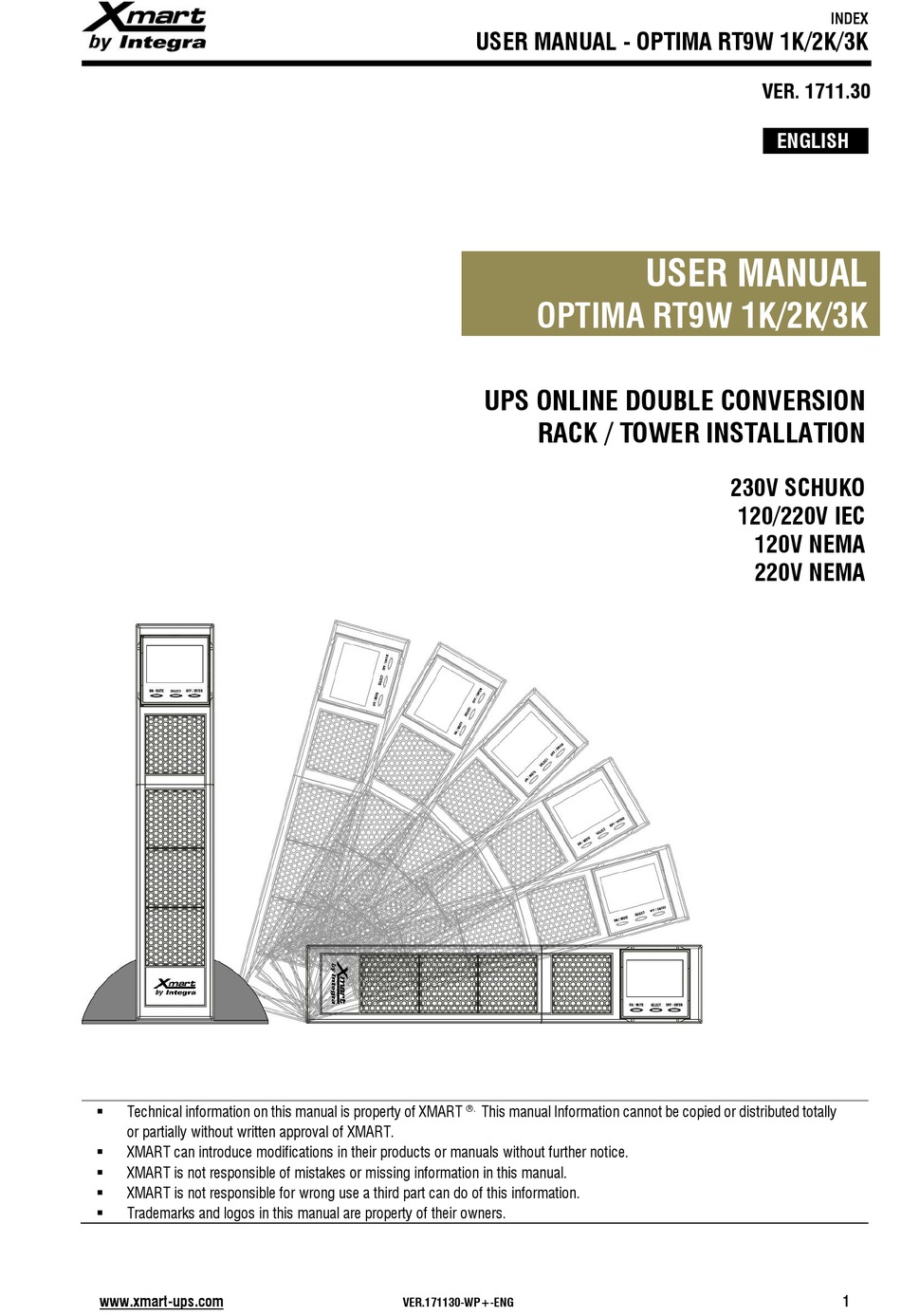

USER MANUAL - OPTIMA RT9W 1K/2K/3K
OPTIMA RT9W 1K/2K/3K
UPS ONLINE DOUBLE CONVERSION
RACK / TOWER INSTALLATION
This manual Information cannot be copied or distributed totally
.
VER.171130-WP+-ENG
VER. 1711.30
ENGLISH
USER MANUAL
230V SCHUKO
120/220V IEC
120V NEMA
220V NEMA
INDEX
1
Advertisement
Related Manuals for Xmart OPTIMA RT9W 1K
Summary of Contents for Xmart OPTIMA RT9W 1K
- Page 1 XMART is not responsible of mistakes or missing information in this manual. ▪ XMART is not responsible for wrong use a third part can do of this information. ▪ Trademarks and logos in this manual are property of their owners.
- Page 2 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS 2. PRODUCT DESCRIPTION 3. SAFETY, QUALITY AND PERFORMANCE STANDARDS 4. INSTALLATION 5. OPERATION MODES 6. OPERATION INTERFACE (KEYBOARD & LCD) 7. UPS CONFIGURATION 8. ERROR & ALARMS CODES 9.
- Page 3 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 1. GENERAL SAFETY INSTRUCTIONS WARNING: It is required to read and understand this manual. Follow all instructions given in this manual for starting up and operating this product. Only qualified technician must start-up, operate and maintain this product. Keep manuals as a guide for future consults.
- Page 4 It also could affect its performance and the compliance of regulations. XMART is not responsible of modifications made after manufacturing. WARNING: This is a category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user may be required to take additional measures (only for 220/230/240VAC systems).
- Page 5 Rack UPS must be installed using L-Shape type guides for supporting UPS weight. Usually this kind of supports is provided with rack cabinets. If not, UPS distributor can provide original XMART telescopic guides as optional accessory. Small black handles included with the UPS are only for locking purposes. UPS cannot be supported only by these handles.
- Page 6 RT9W 1K: 24VDC RT9W 2K: 48VDC RT9W 3K: 72VDC Place UPS module close to original XMART XBAT modules. Check all DC switches on XBAT are in OFF position. Connect UPS to first XBAT module by using original DC cable In case system has more than 1 XBAT, connect XBAT#1 to XBAT#2. Then XBAT# 2 to XBAT#3 and so on.
- Page 7 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 5. OPERATION MODES This is a True On Line Double Conversion UPS and it is designed to offer clean, bump-less and highest quality power to your computer related equipment protecting also your valuable data. Power delivered by UPS is 100% sine wave as main line.
- Page 8 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K A – In online mode, Input voltage indicates a valid AC input close to (232VAC). B – Output voltage is displayed in upper left ONLINE corner (B) C – Flowchart indicates AC input is used to recharge batteries but also feeds rectifier input.
- Page 9 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 6. OPERATOR INTERFACE: KEYBOARD & LCD FRONT PANEL: <ON / MUTE> UPS TURN-ON: Keep it pushed for 2 seconds. If button is released before required time UPS will not turn on. ALARM MUTE...
- Page 10 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K LCD DESCRIPTION LCD can be divided in 6 functional areas: OUTPUT INFORMATION: It displays: AC Input voltage, DC Battery voltage, Input frequency (in Hz) INPUT INFORMATION: It displays: AC output voltage, Output frequency (in Hz) ALARMS &...
- Page 11 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K FLOWCHART – UPS STATES & MODES This section displays graphically operation mode and state of the UPS: (1) : Valid AC Input detected (2) : Battery symbol (3) : Converters (Rectifier & Inverter)
- Page 12 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 7. UPS CONFIGURATION Configuration menu allows setting of functions and parameters of the UPS. Menu is activated by pressing < SELECT > during 5 seconds with UPS in STAND-BY or BYPASS mode (powered but without activation of ON button).
- Page 13 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K CF: ENABLE / DISABLE FREQUENCY CONVERTER FUNCTION: CF can be enable/disable by setting PAR. 03: CF = Enable NCF = Disable If CF is enable PAR 02 must be set to preferred frequency value: 50Hz or 60Hz...
- Page 14 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K LCD CODES AND TEXTS: TEXT DESCRIPTION Battery (Batería) Battery Replacement (ReemplazarBaterías) Frequency Converter Function (Función de Convertidor de Frecuencia) Charger (Cargador de Baterías) Escape (Salir) ON (Encendido) Enable (Habilitado) Disable (Des-habilitado) High Loss (Límite superior del rango) Low Loss (Límite inferior del rango)
- Page 15 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 8. ALARM & ERROR CODES IMPORTANT: All alarms and errors are informed on the LCD by dedicated codes and symbols. ALARMS: Are usually represented by blinking codes or symbols. Audible alarm beeps are also intermittent for ▪...
- Page 16 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K ERROR CODES Error states are produced when UPS detects a critical problem that avoids its normal operation in ONLINE mode. This condition is described by steady symbol and code on LCD. A continuous beep is also generated by the UPS.
- Page 17 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 9. TROUBLESHOOTING PROBLEMA CAUSA PROBABLE & SOLUCION Low Batteries Charge: Recharge Batteries during 4-6 h. Short runtime in Battery mode Old Batteries: Batteries must be replaced by new ones ALARMS PROBABLE CAUSE & SOLUCION High power consumption connected to UPS: Disconnect no critical equipment from UPS.
- Page 18 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 10. SOFTWARE Our monitoring software allows user to manage UPS and monitoring of all of its features. Main software features are: Configuring UPS parameters, Automatic shutdown for protected PCs (OS and files) when long blackouts force UPS to power-off, Scheduled battery tests, shutdown and start-up and Easy interface for monitoring UPS and Main service.
- Page 19 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K BATTERY REPLACEMENT: 2 BATTERIES, 24VDC MODELS (1KVA) 1: Remove old batteries 2: Connect 2 batteries in 3: Install new batteries in the 4: Close binder series binder BATTERY REPLACEMENT: 3 BATTERIES, 36VDC MODELS (1.5KVA)
-
Page 20: Installation
- In no event will XMART be liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental, or consequential damages. -
Page 21: Front & Rear Panel
INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 14. FRONT & REAR PANEL A.- LCD 4.- AC Input breaker/fuse B.- ON/MUTE 5.- RJ45 surge protected sockets (in/Out) C.- SELECT 6.- Not used D.- OFF/ENTER 7.- USB & RS232 ports 1.- Standard UPS outlets 8.- Intelligent SNMP port... - Page 22 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K www.xmart-ups.com VER.171130-WP+-ENG...
- Page 23 INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K www.xmart-ups.com VER.171130-WP+-ENG...
-
Page 24: Specifications
INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 15. SPECIFICATIONS (1/2) ONLINE RT9W UPS Capacity / Capacidad 1.000VA / 900W 2.000VA / 1.800W 3.000VA / 2.700W INPUT / ENTRADA Range / Rango - Vac (Model 120Vac) 90Vac-145Vac @ 100% load / 60Vac-145Vac @ 60% load... -
Page 25: Ver.171130-Wp+-Eng
INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K 15. SPECIFICATIONS (2/2) ONLINE RT9W UPS INDICATORS / INDICADORES UPS status, Load level, Battery, Input/Output voltage, Discharge timer, and Fault LCD / Pantalla de Cristal Liquido (LCD) Estado del UPS, Consumo, Baterías, Voltaje Entrada/Salida, Autonomía, Diagnostico... -
Page 26: Ver.171130-Wp+-Eng
INDEX USER MANUAL - OPTIMA RT9W 1K/2K/3K NOTAS www.xmart-ups.com VER.171130-WP+-ENG... - Page 28 USA: EUROPE: Latin America: 10540 NW 26th St, Ave. Can Bordoll 60, Nave 4. Zona Ind. San Vicente II, C/ F, A11 Doral, FL 33172. USA Sabadell 08202. Spain Maracay. Venezuela sales@xmart-ups.com sales@xmart-ups.com sales@xmart-ups.com...
