Easidew Plus Portable Hygrometer User's Manual
3. While holding the fitting
body steady, tighten the
nut one-quarter turn
NOTE: Connect the machined ferrule end before
connecting the tube adapter end
NOTE: Connect the machined ferrule end before
connecting the tube adapter end
4. Insert the tube adapter until it rests firmly on
the shoulder of the Swagelok
Finger-tighten the nut.
4. Insert the tube adapter until it rests firmly on
the shoulder of the Swagelok
Finger-tighten the nut.
5. Mark the nut at the 6 o'clock position. While holding
the fitting body steady, tighten the nut 1¼ turns to the
9 o'clock position.
5. Mark the nut at the 6 o'clock position. While holding
the fitting body steady, tighten the nut 1¼ turns to the
9 o'clock position.
Kahn Instruments
!
®
tube fitting body.
®
tube fitting body.
Swagelok

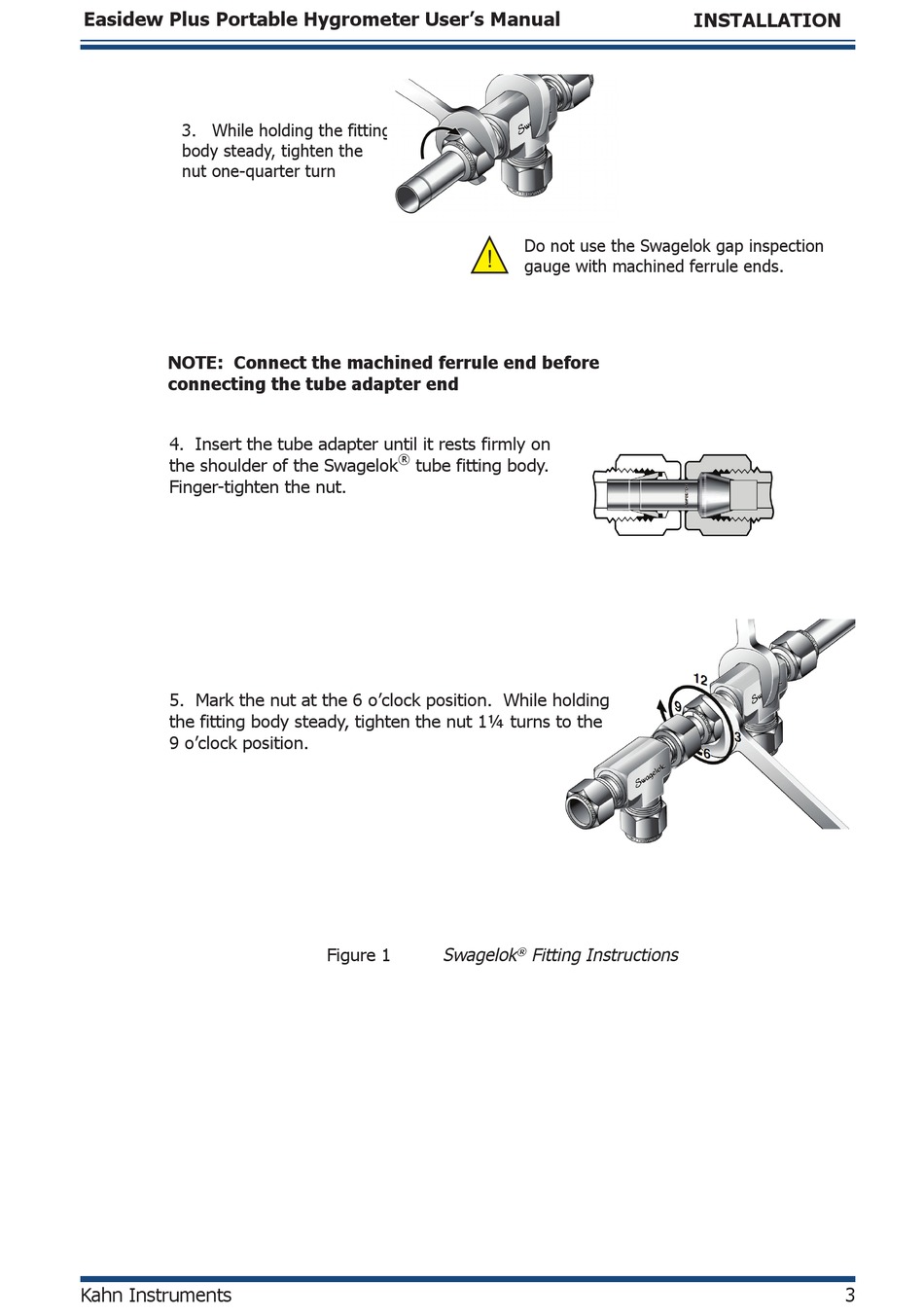

Figure 1
Do not use the Swagelok gap inspection
gauge with machined ferrule ends.
Fitting Instructions
®
INSTALLATION
3
