User instructions
picklePATT ES

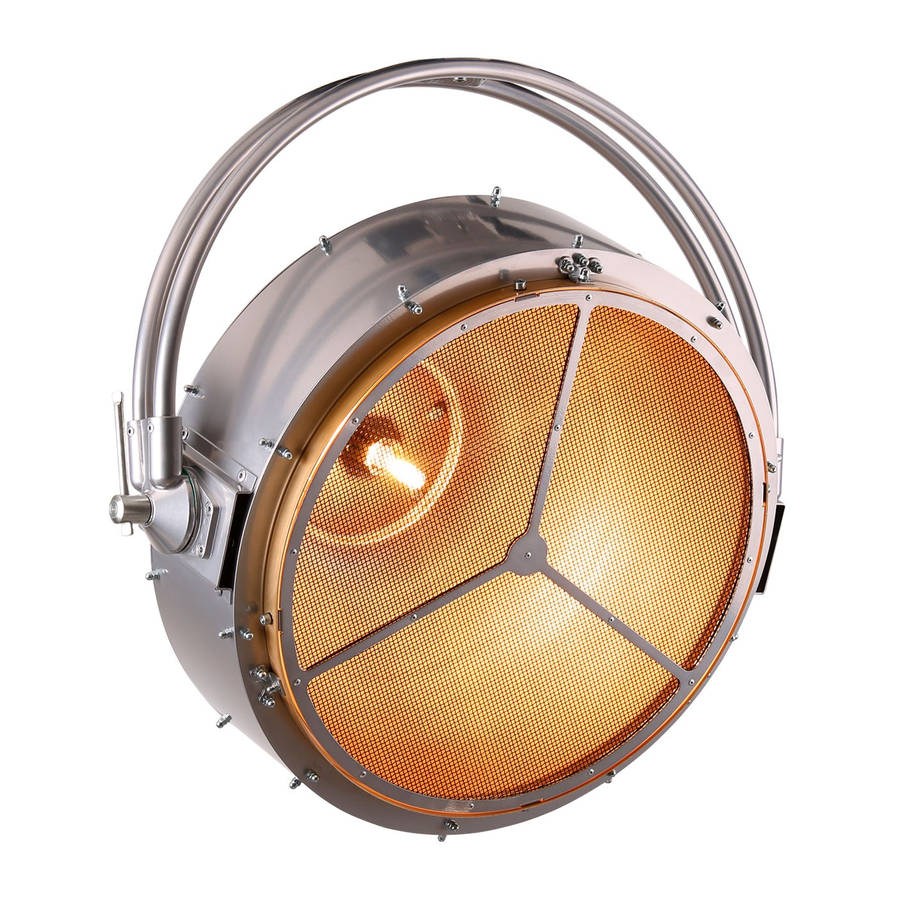

The picklePATT is a 100W lamp softlight housed in a sleek spun aluminium body which maximises its curves
to look as good on stage as the performers it illuminates.

Safety and operating instructions

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
During the operation the housing becomes very hot (up to 100°C). Allow the device to cool
approximately 30 minutes prior to manipulate with it.
Min. distance from flammable materials to all exterior surfaces of the luminaire is 0.5m
Make sure that the available voltage is not higher than stated on the device.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the device and the pow-
er-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it.
This device falls under protection class I and therefore must be earthed.
The electric connection, repairs and servicing must be carried out by a qualified employee.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
Do not touch the device's housing bare hands during its operation (housing becomes hot)!
For replacement use lamp of the same type and rating only.
Disconnect the device from mains before re-lamping or any maintenance/cleaning operations. Allow to cool
cca 30 minutes.
CAUTION ! EYE DAMAGES !
Avoid looking directly into the light source
This device was designed for indoor use only.
This device is for professional use only. It is not for household use.
