Connection - BONFIGLIOLI Vectron Syn10 S115 01 Operating Instructions Manual

SYN10 S 220 07/09 IP65 S – SYN10 T 400 05/07/09 IP65 S

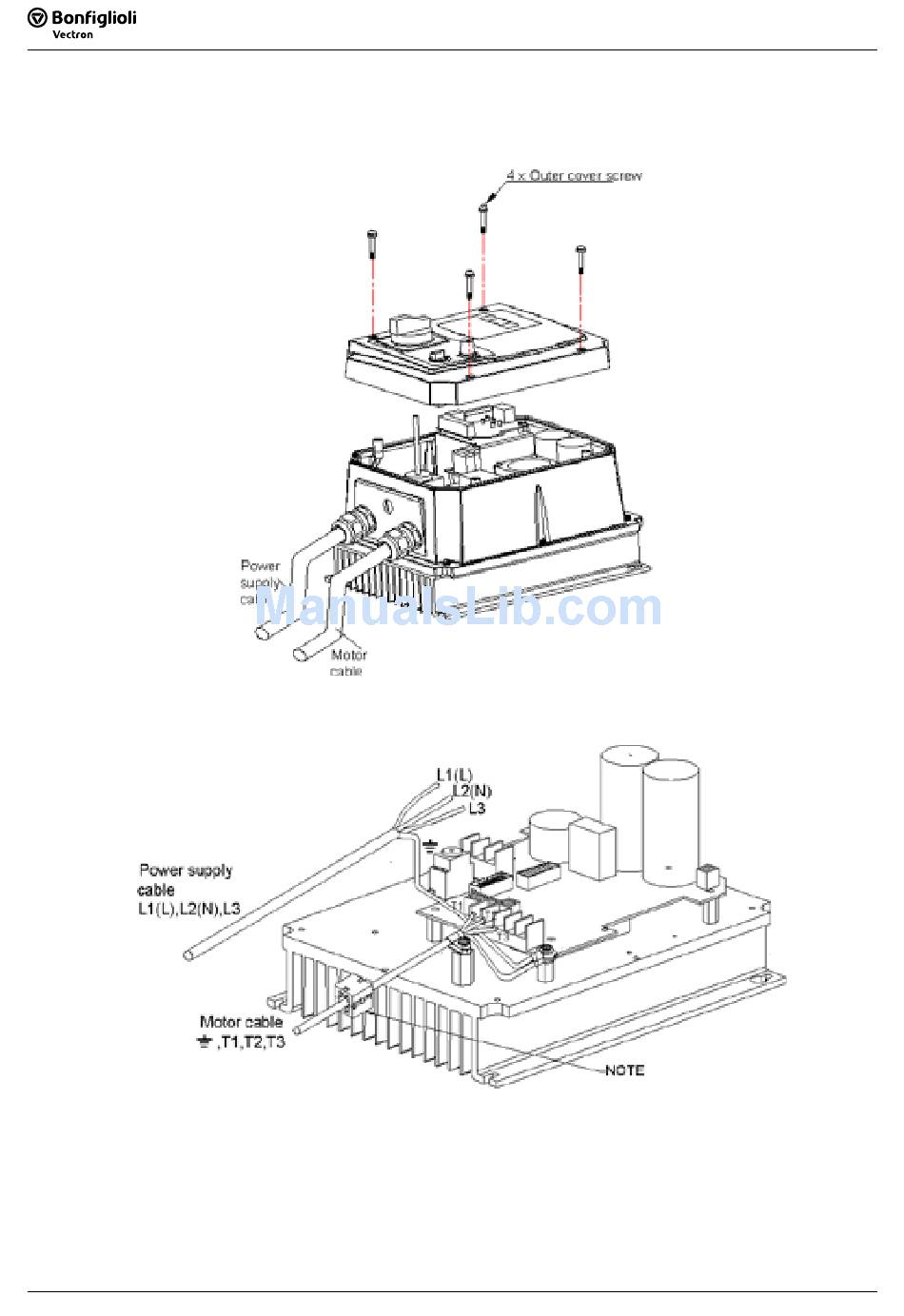

(WITH SWITCH TYPE) CONNECTIONS & EMC MOUNTING:

CONNECTION

MOUNTING
NOTE:
For ALL FILTER MODELS, additional items will be find inside the box including : [1]pc of EMC conformed waterproof
(IP65) ferrite core; [1]pc of metal fastener; [1]pc of MF Zin 5-C screw.
"CAUTION: , if application use require to meet EMC regulation, you MUST first constrain the motor cables, close the
ferrite core onto the motor cable outside the plastic enclosure as stated in the above diagram. Please also note the length of
the Motor cable CANNOT exceed 5M under EMC regulation"
