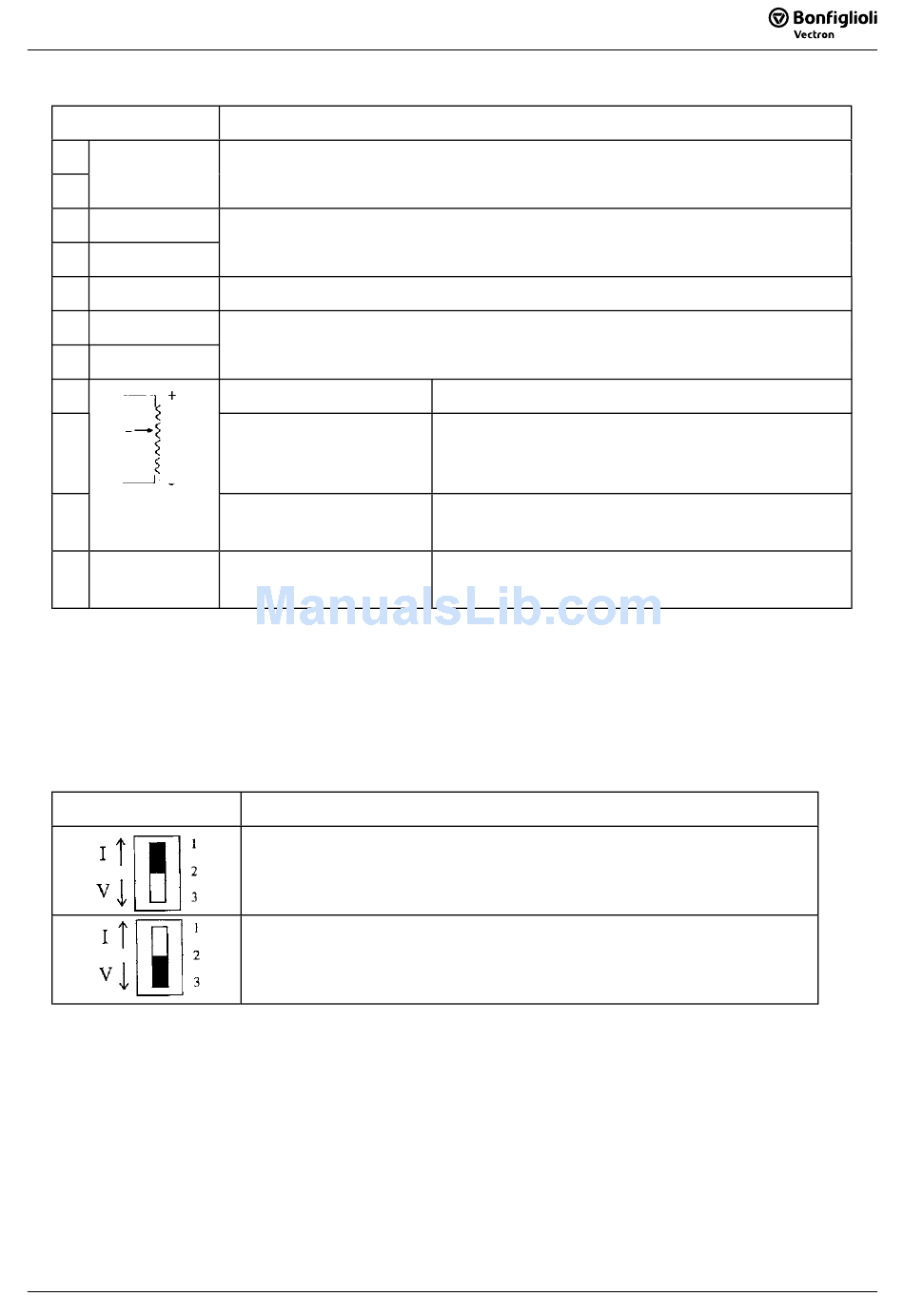

Control Circuitry Terminal Block (TM2) description

Terminal Symbol
1 TRIP
RELAY
2
3 FWD (FW)
4 REV (RE)
5 + 12V(12)
6 SP1(SP)
7 RESET(RS)
8
9
0V(FM -)
10
11 FM+
Tightening torque for TM2 is 0.57 Nm.
* Wire voltage rating must be a minimum of 300V
* Control wiring should not run in the same conduit or raceway with power or motor wiring
* Single Input and Output Terminals (TM2) Ratings are ALL Class 2

SW1 function description

SWITCH 1
Fault relay output terminal Multi function output terminal (refer to F_21)
Connection point rated capacity 250VAC/1A (30VDC / 1A)
Operation control terminals (refer to F_03)
Common point of terminal 3 / 4 / 6 / 7
Multifunction input terminals (refer to F_19)
+10V
Analog input wire
Wiper
Analog common point
Analog output positive
connection point
0~20mA analog signal (When F_11 is set to 1)
4~20mA analog signal (When F_11 is set to 2)
0~10 VDC analog signal (When F_11 is set to 1)
Function Description
Power terminal for potentiometer ( Pin 3 )
Analog frequency signal input terminal ( Pin 2 of
potentiometer or positive terminal of 0~10V / 4~20mA /
0~20mA)
Analog signal common point ( Pin 1 of potentiometer or
negative terminal of 0~10V / 4~20mA / 0~20mA )
Analog frequency signal output terminal
Output terminal signal is 0 ~ 10VDC/Fn6
External signal type
(default)
