Summary of Contents for MEGATRONIX KE 680

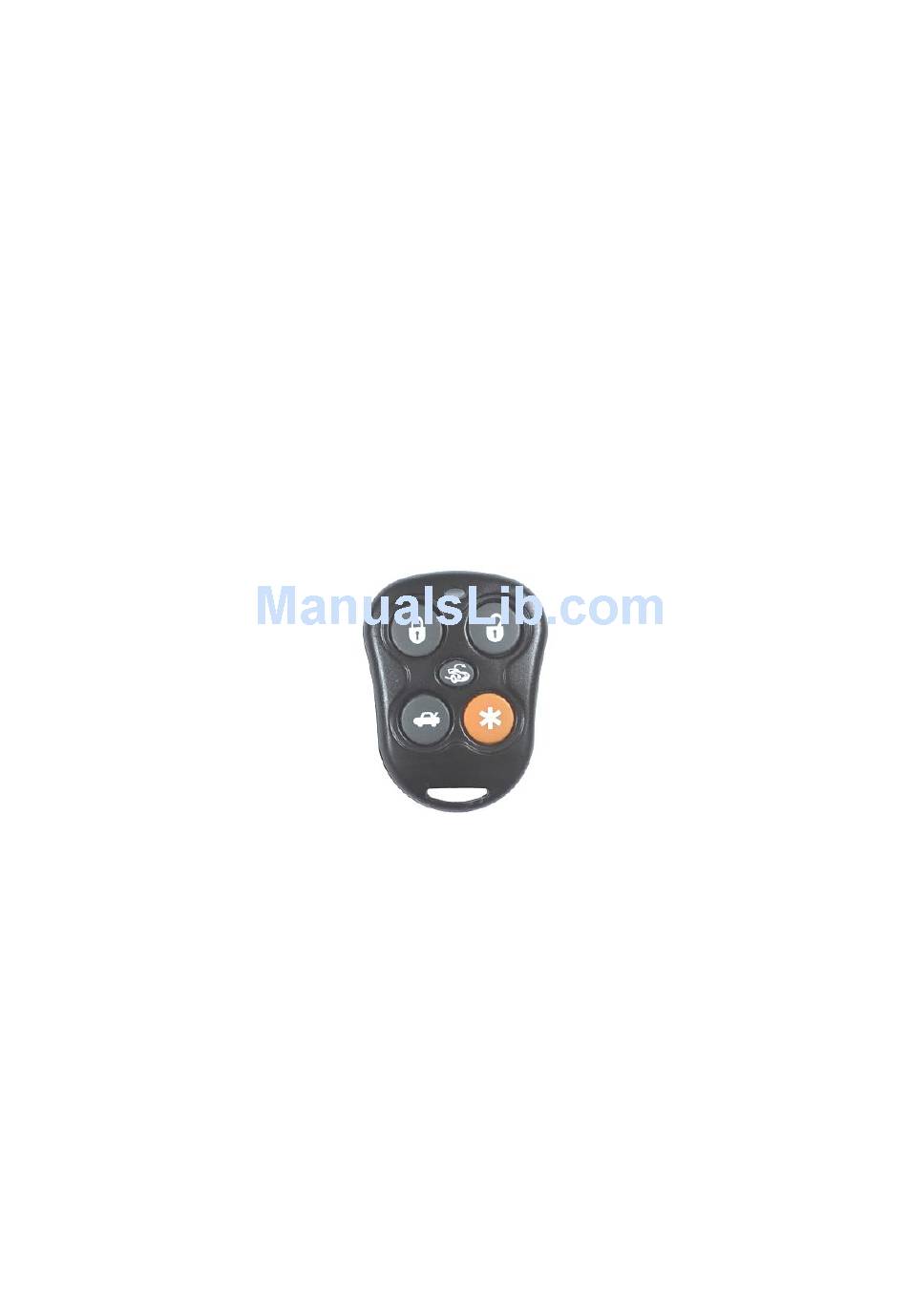

- Page 1 KE 680 DELUXE 4-CHANNEL KEYLESS ENTRY SYSTEM DOOR LOCK RELAYS ON-BOARD Installation And Operation Manual MEGATRONIX CHATSWORTH, CA U.S.A. KE680...
-
Page 2: Installation Diagram
INSTALLATION DIAGRAM H8 10 Pin H1: Main 5 Pin White Harness H1 5 Pin White H8: 10 Pin White Mini Connector White Transceiver H2 3 Pin H7 4 Pin Antenna Brown Black H3 2 Pin Valet Switch Blue H6 4 Pin Orange H4 6 Pin H4: 6 Pin Door Lock / Unlock... - Page 3 Keep wiring away from moving engine parts, exhaust pipes, and high-tension cable. Tape wires that pass through holes on the firewall to prevent frying electrical. Watch out for sharp edges that may damage wires and causes short circuit. CAUTION: Do not connect the wire harness to the control module until all wiring to vehicle is complete. H1.
- Page 4 b). When found, use voltmeter, connect one probe of the voltmeter to ground and connect the other end of the probe to the starter wire. It should receive "12 volts" only when the ignition key in the "START" position. c). After locating the correct wire, cut it in half, try to start the vehicle. The engine should not "crank over". d).
- Page 5 H4. 6 PIN DOOR LOCK HARNESS: INSTALL NEW DOOR LOCK MOTORS Blue/Red Wire: (87a) - Door Unlock Relay Green/ white Blue/White Wire: (30) - Door Unlock Relay Blue/ white Blue/Yellow Wire: (87) - Door Unlock Relay Blue/ red Green/Red Wire: (87a) - Door Lock Relay Green/ red Green/White Wire: (30) - Door Lock Relay Blue/ yellow...
-
Page 6: Features Programming
2 STEP DOOR UNLOCK WIRE CONNECTION FOR 2 STEP DOOR UNLOCK WIRE CONNECTION FOR GROUND SWITCHED DOOR LOCKS POSITIVE SWITCHED DOOR LOCKS +12V LT. Green / Black OEM Door Master Lock Switch OEM Door Master Lock Wire Switch LT. Green / Black Wire Unlock Lock... - Page 7 FEATURE “ ” PRORAMMING: 1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in the OFF position. 2. Push the Valet switch 4 times and hold it on the 4 push until two chirps with a long chirp is heard. Then release the valet switch.
- Page 8 3-a. Press and release the transmitter or F button 3 times, [3] LED flash, [3] siren/horn chirp to indicate you are in features “Channel 3 Timer Programming mode”. 3-b. Press and release the transmitter button 4 times, [4] LED flash, [4] siren/horn chirp to indicate you are in features “Channel 4 Timer Programming mode”.
- Page 9 Delete Password Pin Code (Override Without Password Pin Code): (Factory default setting) 1. Turn the Ignition switch ‘ON/OFF’ 3 times and stay in the OFF position. 2. Push the Valet switch 8 times and hold it on the 8 push until four chirps with a long chirp is heard. Then release the valet switch.
-
Page 10: Operation

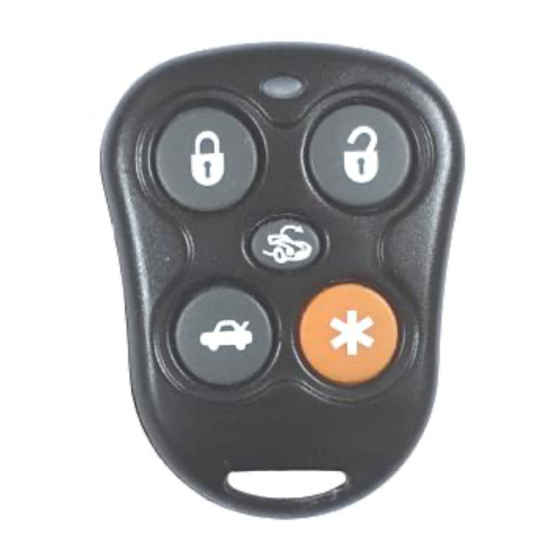

OPERATION: TRANSMITTER OPERATION: Transmitter Button System Function Remark Lock Doors and Arm System Silent Arming / Disarming Ignition in "off" position. Unlock Doors and Disarm System 2-Step Door Unlock and Disarm System Press twice within 3 seconds Trunk Release (Channel 3) Press and Hold for 2 seconds (2-second) Remote Control Entry/Exit Valet Mode... -
Page 11: Valet Mode
The Override function may be used if the remote transmitter is lost or inoperative. 1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.) 2. Within 10 seconds push and release the valet switch. The system will stop sounding and enter the disarm mode. You can now start and operate the vehicle normally. -
Page 12: Dome Light Convenience Delay & Supervision
M. DOME LIGHT CONVENIENCE DELAY & SUPERVISION The alarm has a unique feature that will turn on your vehicle dome light as following: 1. Upon disarming, the interior lights will remain on for 30 seconds. 2. If the vehicle is intruded, the interior light will flash for the same duration as the siren. Note: Turning ON the ignition switch or arming the alarm will turn off the dome light.
