- Page 1 MEGA 310 DELUXE 4-CHANNEL MOTORCYCLE ALARM SECURITY SYSTEM Installation And Operation Manual MEGATRONIX CALIFORNIA, U.S.A. MEGA 310...
-
Page 2: Wiring Diagram
INSTALLATION We recommend insulating all your soldered or crimped connections with heat shrink or electrical tape. We also recommend spraying silicone sealant on all your connections and plugs after they are connected and plugged in, spraying beforehand prevents good electrical connections. Keep wiring away from moving engine parts, exhaust pipes and high-tension cable. - Page 3 H1: MAIN 6 PIN WIRE HARNESS: Turn Indicator 1. White Wire: Turn Indicator Relay Output 10A Fuse 2. Red / White Wire: Turn Indicator Relay Power Input 3. White Wire: Turn Indicator Relay Output 4. Black Wire: Ground to Motorcycle Frame 5.
- Page 4 H2. MINI CONNECTOR WIRE HARNESS: H2/1. Orange wire – (-) 200mA Grounded Output When Armed – This wire will become grounded when the alarm is armed. The current capacity of this wire is 200mA. This wire can be use to turn on an optional sensor or to ready an optional accessory. H2/2.
- Page 5 PROGRAMMING A. PROGRAMMING TRANSMITTER: Note: This mode will only retain the last 4 remote transmitters programmed. If the transmitter memory is exceeded, the security system will start deleting transmitters from memory in chronological order. 1. Turn the Ignition 'switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds. 2.
-
Page 6: Password Pin Code Setup
Momentary output = The momentary output selection will output a negative signal from the Channel 4 output immediately when the channel 4 button is pressed and will continue until the button is release. Latched output = The latched output selection will output a negative signal as soon as the Channel 3 (4) button is pressed and will continue until the button is pressed again. -
Page 7: Return To Factory Default Setting
7. When you are satisfied with the setting, press the button once time to lock in the adjustment. Note: If 20 seconds of inactivity expire, or button on the transmitter is press during of above steps, the unit will exit the program mode and return to the disarmed mode. A 3 long chirps to confirm exit. Return To Factory Default Setting: 1. -
Page 8: Operation

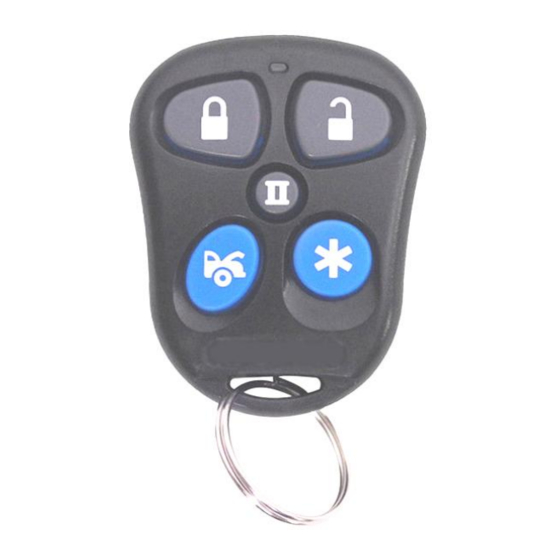

OPERATION: A. TRANSMITTER OPERATION: Transmitter Button System Function Remark Arm the System Press and release momentarily Press button within 3 seconds after Arming with Noiseless Mode arming Press button 2 times within 5 seconds Arming with Shock Sensor Bypass after arming Press the button first within 3 Arming with Pathway Illumination... -
Page 9: Active Arming
F. ACTIVE ARMING: 1. Press button on transmitter. 2. The siren will chirp once and the parking light will flash once indicating the system is armed. The LED will begin to flash and the engine starter will be disabled. SILENT ARMING: Press the button first, within 3 seconds press button on the transmitter will arm your security system, No chirp sound will be heard, arm confirmation will be through the motorcycles... - Page 10 I. DISARMING WITHOUT A TRANSMITTER OVERRIDE THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default Setting) The Override function may be used if the remote transmitter is lost or inoperative. 1. Turn the ignition switch to 'ON’ position. (Alarm will sound.) 2.
- Page 11 O. CHANNEL 3 TIMER CONTROL OUTPUT. Press and hold the button on transmitter for two seconds to remote control the channel 3 output. Channel 3 is user-programmable timer output. You may program the built-in timer to send a ground signal / latch / latch with ignition / 30 seconds/ 60 seconds/ 90 seconds timer output.
- Page 12 MEGA 310...
