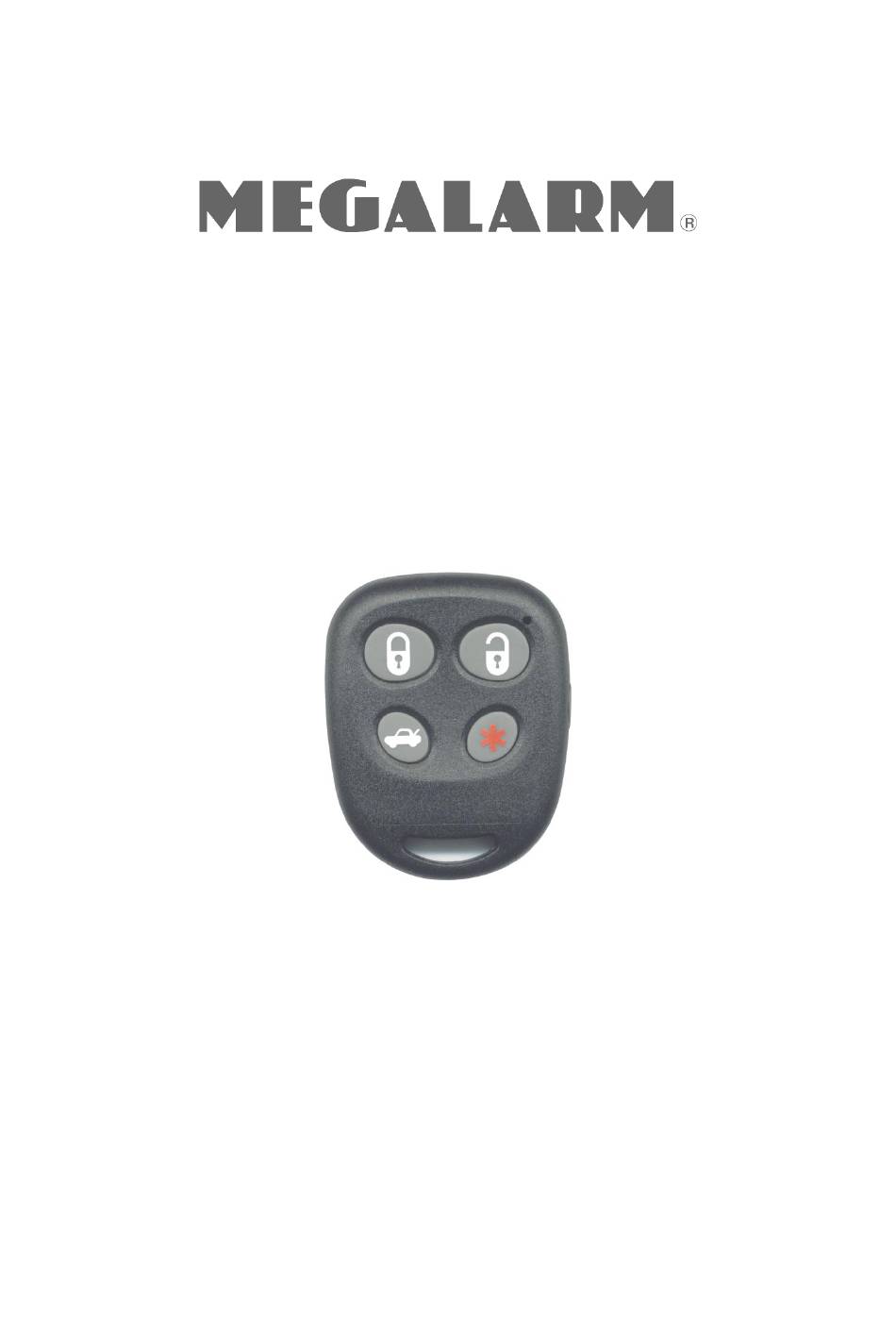

MEGA 3400
4-CHANNEL REMOTE ENGINE STARTER
AND CAR ALARM SECURITY SYSTEM
Installation Manual
MEGATRONIX
CALIFORNIA, U.S.A.
MEGA 3400 INSTALL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Megalarm MEGA 3400 and is the answer not in the manual?

Questions and answers

Summary of Contents for MEGATRONIX Megalarm MEGA 3400

  • Page 1 MEGA 3400 4-CHANNEL REMOTE ENGINE STARTER AND CAR ALARM SECURITY SYSTEM Installation Manual MEGATRONIX CALIFORNIA, U.S.A. MEGA 3400 INSTALL...
  • Page 2: Installer Warnings

    INTRODUCTION INSTALLER WARNINGS This Remote Starter with Alarm System is designed to be installed on fuel injected vehicles with an automatic transmission ONLY.  Never install this remote starter on a manual transmission vehicle.  This system must be installed and wired through a safety switch it will not start in any forward or reverse gear.
  • Page 3: Installation Diagram

    INSTALLATION DIAGRAM 10A Fuse 1. Red/White: Parking Light Relay Power input Indicator 2. White: Parking Light Relay Output 3. Black: Ground to Vehicle Frame Dual Zone Shock 4. Brown: Positive Output to Siren Sensor 3A Fuse 5 Pin White Connector 5.
  • Page 4 #H5 5 PIN WHITE CONNECTOR FOR OUTPUT CONNECTION 1. Orange Wire: (-) 500mA Grounded Output When Armed 2. Yellow Wire: (-) 200 mA Ignition 3 Control Output 3. White Wire: (-) 200 mA Programmable output Dome Light Control Output (Factory Default setting) Or Horn Output Or Factory Security Rearm Signal Output Ground Output During Start (Crank)
  • Page 5: H1: 6 Pin Heavy Gauge Wiring Connection

    WIRING Keep wiring away from moving engine parts, exhaust pipes and high-tension cable. Tape wires that pass through holes on the firewall to prevent fraying. Watches out sharp edges that may damage wires and causes short circuit. CAUTION: Do not connect the wire harness to the control module until all wiring to vehicle is complete. H1: 6 PIN HEAVY GAUGE WIRING CONNECTION: Remember that the system does to start a vehicle is duplicate the functions of the ignition key switch! Below, we will explain the three basic functions of the ignition switch.
  • Page 6 H2: 5 PIN WIRE HARNESS: H2/1. RED / WHITE WIRE –PARKING LIGHT RELAY INPUT -- The RED/WHITE wire is the input to the flashing parking light relay. The connection of the RED/WHITE wire will determine the output polarity of the flashing parking light relay. If the vehicle you are working on has +12volt switched parking lights, you don’t need connect this wire.
  • Page 7 3. Wrap a thin (28 - 30awg) wire tightly around ignition switch 6 to 8 times and secure it. 4. About 6"down line make another loop of approximately 2"diameter. 5. Place the key inside this loop and secure it to the loop. 6.
  • Page 8 wire. The correct wire will show nagative ground when the key is used to unlock the doors or trunk. This wire is usually found in the kick panel area in the wiring harness coming into the car body from the door. Start Status (Shock Sensor Bypass Control) Output –...
  • Page 9 remote start enable toggle switch to the OFF position. To enable the remote start, move the optional remote start enable toggle switch to the ON position. 2. If needed, This wire can connect to the PARK/NEUTRAL switch in the vehicle. (See the TESTING YOUR INSTALLATION GUIDE) IMPORTANT NOTE: Directly connect the BLACK/WHITE wire to the “GROUND”...
  • Page 10 VACUUM OPERATED CENTROL LOCKING 5-WIRE ALTERNATING DOOR LOCK Green Wire +12V Green W ire Master Door Door Switch Lock Switch Splice Cut the Existing 3 Pin Plug Unlock W ire +12V To Alarm 3 Pin Splice Plug To Compressor +12V Alarm Cut the Existing Lock W ire...
  • Page 11 PROGRAMMING A. PROGRAMMING THE REMOTE TRANSMITTER: Note: This mode will only retain the last 4 remote transmitters programmed. If the transmitter memory is exceeded, the security system will start deleting transmitters from memory in chronological order. 1. Turn the Ignition 'switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds. 2.
  • Page 12 Parking light “on” Parking light “on” for Pathway illumination feature “off” for 30- second upon 30- second upon an an unlock signal unlock signal & 10-second upon a lock signal. Exit : Turn Ignition to 'ON' position, or leave it for 15 seconds. A 3 long chirps & 3 parking light flashes to confirm exit.
  • Page 13 REMOTE START FEATURE PROGRAM MODE. START FEATURE “ ” PRORAMMING: 1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position. 2. Push the Valet switch 8 times and holding in on the 8 push until four chirps with a long chirp is hearing then release the valet switch.
  • Page 14 Start Timer: 0.8-second (2 chirps), 1.0-second (3 chirps), 1.2-second (4 chirps), 0.6-second 1.4-second (5 chirps), 1.6-second (6 chirps), 1.8-second (7 chirps), 2.0-second (8 chirps), 3.0-second (9 chirps), 4.0-second (10 chirps), Low check level Hi check level Start / Stop the system for TESTING & ADJUSTMENT Exit : Press the button on the transmitter.
  • Page 15: Return To Factory Default Setting

    button on the transmitter to set “Check Level” to LOW position. [1] LED flash, II. Press [1] chirp to confirm this setting III. Repeat the step1 – 2. 3. If the crank time is too long, (Engine is successfully running, while the starter is still cranking): a.
  • Page 16: Shutdown Diagnostics

    SHUTDOWN DIAGNOSTICS The unit has the ability to report the cause of the last shutdown of the remote start system. 1. Turn the Ignition 'switch to ‘ON position. 2. Press the button on the transmitter. 3. The LED will now report the last system shutdown by flashing for 3 cycles in the following grouped patterns: Shutdown Mode Flashes...
  • Page 17 The Park/Neutral ECM input is the preferred method of installation. This not only maintains the integrity of the factory circuit, it is also the easiest to install, providing the vehicle you are working on has this ECM input. The installation required for this application (shown below), indicates in the slight reconfiguration of the control switch wiring.
  • Page 18 Note: A second 4003 series diode may be required to maintain the integrity of the hood open, shut down circuit. If this is the case, it must be installed as shown in the diagram above. The anode (Non Stripped) side must be connected to the WHITE/ BLACK wire (H6/4) of the Remote Start Unit. The cathode (Striped) side must be connected to the hood pin switch.
  • Page 19 MEGA 3400 INSTALL...
  • Page 20 MEGA 3400 INSTALL...
