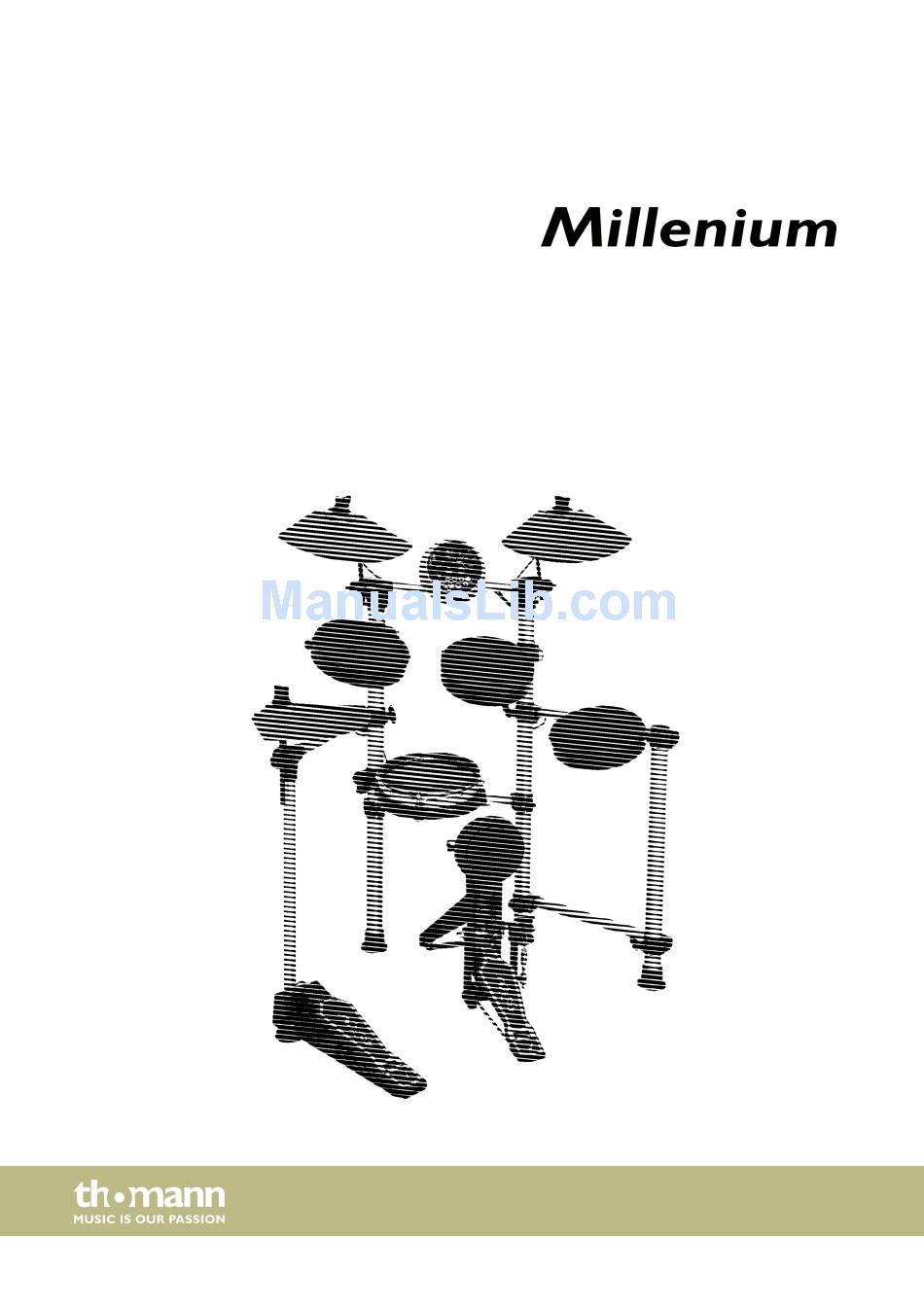

HD-100
e-drum set
user manual

Advertisement

Table of Contents
loading

Related Manuals for thomann Millenium HD-100

Summary of Contents for thomann Millenium HD-100

  • Page 1 HD-100 e-drum set user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.07.2015, ID: 212237...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................................. 4 Safety instructions.......................................... 5 Features..............................................6 Operating elements........................................7 Setting up the drum set......................................10 MIDI-out format..........................................14 Functions............................................16 Recording............................................23 Playback............................................. 26 Technical specifications......................................30 Voice list............................................. 31 Pattern list............................................34 Percussion settings........................................

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instruc‐ tions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.

  • Page 5: Safety Instructions

    Safety instructions Safety instructions Intended use Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.

  • Page 6: Features

    Features Features 100 drum and percussion sounds with high-grade resolution 10 preset kits and 5 programmable kits 40 built-in preset rhythms, one user pattern Integrated metronome with 4 selectable click sounds Bass pad Including foot pedal, double zone snare pad, 3x tom pads, ride pad, crash pad, hi-hat pads & hi-hat controller Headphones output &...

  • Page 7: Operating Elements

    Operating elements Operating elements Top panel 1 [VOLUME] Volume control for the headphones output. Turn it clockwise to increase the volume, turn it counterclockwise to decrease the volume. 2 [+/–] Use these buttons to increase or decrease the value of the currently selected parameter. 3 [TEMPO] For tempo adjustment.
  • Page 8 Operating elements 8 [PATTERN] For selecting the patterns and for choosing the MIDI output format. 9 [VOICE] Use this button to select the desired voice. 10 [KIT] Button for selecting a drum kit. 11 LED display Shows the parameters of the currently selected menu. 12 [VOLUME] To separately adjust the volume of the drum kit, the voice, the metronome and the pattern.
  • Page 9 Operating elements Rear panel 1 DC 9 V Plug in the cable of the mains adaptor here. 2 PHONES Here you can connect your headphones (not supplied). 3 OUTPUT You can connect an audio system or drum monitor to this stereo output. 4 MIX IN Connect external audio devices like MP3 or CD players to this input.

  • Page 10: Setting Up The Drum Set

    Setting up the drum set Setting up the drum set Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 11 Setting up the drum set HD-100...
  • Page 12 Setting up the drum set Connecting the power supply Make sure the device is switched OFF, then insert the power supply into a wall outlet and connect the adaptor cable to the DC IN socket on the rear panel of the device. To protect the speakers, amplifier and the drum module from damage rotate the volume knob to the left stop, before switching the power ON.
  • Page 13 Setting up the drum set Connecting headphones An optional set of stereo headphones (not supplied) can be connected to the PHONES socket located on the rear of the drum module. Listening to music with high sound pressure level may cause permanent damage to your hearing. For your own protec‐ tion we recommend to adjust the volume to a comfortable level! Connecting a MIDI / USB device You can connect a computer or other USB host devices that supports USB audio.

  • Page 14: Midi-Out Format

    MIDI-out format MIDI-out format One of the two different MIDI output formats can be selected for the drum module: the internal format (default setting) and the GM format. The internal format is used when the drum module works as a sound source (drum module must be connected to a computer or other module with USB host device by USB, and send midi data to another drum module.
  • Page 15 MIDI-out format In pattern selecting mode, press the [ PATTERN] button to enter MIDI output format choice mode. ð The LED display then shows the current MIDI output format ‘P-N’ (default setting, internal format) or ‘--N’ (GM format). Press the [+/–] buttons to select the other one. If the internal format (P-N) is selected, program change and note information (note ON/OFF) commands will be transmitted.

  • Page 16: Functions

    Functions Functions Switching the power ON After all connections have been completed, rotate the volume knob to the left stop (= minimum volume level) before switching the power on. Set the power switch to ‘ON’ position to switch the power on. The display then shows the ‘Kit number’ and the ‘KIT’ indicator lights up.
  • Page 17 Functions Selecting a drum kit The unit comes with 10 (001-010) preset drum kits and 5 user kits (011-015). Press the [KIT] button to enter KIT selecting mode. ð The LED display shows the current ‘Kit number’ and the ‘KIT’ indicator lights up. Press the [+/–] buttons to activate one of the drum kits (001-015).
  • Page 18 Functions Selecting a pad voice The drum module provides 108 built-in drum voices in total to choose from. Press the [VOICE] button to enter pad voice selecting mode. ð The LED displays the current pad voice number and the ‘VOICE’ indicator lights up. In pad voice selecting mode, press [+/–] buttons to choose the voice of the current pad or cymbal (1-108).
  • Page 19 Functions Saving a kit Press the [SAVE] button to enter KIT saving mode. ð The LED display shows the user KIT number to save, the ‘KIT’ indicator lights up and the user KIT number flashes. Press the [+/–] buttons to choose the user KIT (11-15) to save. ð...
  • Page 20 Functions Press the [PATTERN] button to enter pattern choice mode. ð The LED display then shows the current pattern number and the pattern indicator lights up. Press the [+/–] buttons to choose the current pattern number (1-41). Listening to a pattern Press the [START/STOP] button to play the pattern.
  • Page 21 Functions Adjusting the pattern volume In pattern choice mode, press the [VOLUME] button to enter pattern volume adjusting mode. ð The LED display shows the accompaniment volume value for the current pattern. Please note that the percussion part volume can not be adjusted, it can only be muted on/off by using the [DRUM OFF] button. The volume indicator lights Press the [+/–] buttons to adjust the pattern volume value (0-16).
  • Page 22 Functions Factory reset If you keep both [+] and [–] buttons pressed at the same time when turning the drum module on, it will be reset to the factory default settings. The following data will be replaced by the factory data: All users kits (include voice and volume settings) All recording data.

  • Page 23: Recording

    Recording Recording Enter the recording waiting mode Press and hold the [SAVE] button for about 2 seconds to enter user pattern recording waiting mode. In recording waiting mode the following parameter can be adjusted: The ‘pattern number’ for the accompaniment The ‘tempo’...
  • Page 24 Recording Press the [START/STOP] button or hit the pads to enter recording mode. ð The ‘REC’ indicator lights up and the LED display shows the recorded measures. First, an introductory beat will be counted down. The display then shows: ‘-4, -3, -2, -1’ . Stop recording When the recording memory is full, the recording automatically stops and the ‘REC’...
  • Page 25 Recording The LED display shows ‘FUL’ . Then press the [START/STOP] button to return to ‘41’ display. The recording capacity is about 5000 notes. Press the [START/STOP] button during recording to stop recording. ð The ‘REC’ indicator goes out. The device then returns to the pattern display ‘41’ . Quick recording After choosing the desired drum kit and adjusting the parameters well (includes tempo, click etc.), you can start quick recording.

  • Page 26: Playback

    Playback Playback Playback a user pattern Choose the pattern number ‘41’ . Press the [START/STOP] button to play the user pattern. ð If there is no recording data the LED display shows ‘N-P’ . The LED display does not show any measures. Please also note: The unit does not play the user pattern in cycle.
  • Page 27 Playback If the DRUM OFF function is activated, the drum sound of the currently playing pattern will be muted and the ‘DRUM OFF’ indi‐ cator lights up. This function is very convenient for user practise. Adjusting the pattern tempo If you want to adjust the pattern tempo: Press the [TEMPO] button.
  • Page 28 Playback During pattern playback the ‘CLICK’ indicator flashes automatically according to the pattern beat, but the metronome sound will not automatically be activated. Selecting a click sound If you want to select a click sound: Keep the [CLICK] button pressed. Then press the [+/–] buttons to select the desired metronome sound, i.e.
  • Page 29 Playback In click time signature selecting mode press the [VOLUME] button to adjust the click volume. ð The volume indicator lights up and the LED display shows the current click volume value. Press the [+/–] buttons to select a value between 0 - 16. To return from click volume selection to time signature selection press the [CLICK] button.

  • Page 30: Technical Specifications

    Technical specifications Technical specifications Drum pads: 3 tom pads 2 cymbal pads 1 snare pad (dual trigger) 1 hi-hat 1 hi-hat control pedal 1 kick pad Number of voices: Drum kits: 10 preset kits 5 user kits Patterns: 40 preset songs and 1 user pattern Display: 3-digit LED display Connections:...

  • Page 31: Voice List

    Voice list Voice list Name Name KICK RIDE Standard Kick 1 Classic Ride Standard Kick 2 Rock Ride Classic Kick 1 Brush Ride Classic Kick 2 TR606 Ride Rock Kick Camco Kick 1 CRASH Camco Kick 2 Classic Crash Acoustic Kick 1 Rock Crash 1 Acoustic Kick 2 Rock Crash 2...
  • Page 32 Voice list Name Name Conga 3 Timbale High Classic Tom 1 Timbale Low Classic Tom 2 Agogo High Classic Tom 3 Agogo Low Classic Tom 4 Cowbell 1 Classic Tom 5 Cowbell 2 Classic Tom 6 Cowbell 3 Rock Tom 1 Cowbell 4 Rock Tom 2 Cowbell 5...
  • Page 33 Voice list Name Name TR606 Tom 5 TR606 Tom 6 Preset kits and default user kits Name Name Standard TR606 Rock User kit1 (Standard) Funk User kit2 (Rock) Brush User kit3 (Pop) Jazz User kit4 (Funk) Table User kit5 (Brush) Latin Numbers 001~010 stand for preset kits, numbers 011~015 stand for user kits.

  • Page 34: Pattern List

    Pattern list Pattern list Pattern Pattern Fusion1 Fusion2 Latin Jazz1 Jazz1 Funk1 Guitar Bossa Latin Pop1 Break Beat 60‘s Rock World1 Big Band1 Funk3 Drum N‘Bass Latin Jazz3 Ballad Latin Pop2 Swing Reggae1 Pop1 World2 Funk2 Latin Latin Jazz2 Bossa Pop Funk1 Samba2 Latin Rock1...

  • Page 35: Percussion Settings

    Percussion settings Percussion settings Prg.- Standard Rock (PC1) Pop (PC2) Funk (PC3) Brush (PC4) Jazz (PC5) 606 (PC6) DJ (PC7) (PC0) High Q Slap Scratch Push - Scratch Pull Sticks Square Click Metronome Click Metronome Bell STD Kick 2 STD Kick 2 Rock Kick Pop Kick Funk Kick...
  • Page 36 Percussion settings Prg.- Standard Rock (PC1) Pop (PC2) Funk (PC3) Brush (PC4) Jazz (PC5) 606 (PC6) DJ (PC7) (PC0) Crash TR606 Crash Dj Mix 2 Cymbal 1 Cymbal 1 STD Hi Tom Rock Hi Tom Pop Hi Tom 1 Funk Hi Tom Brush Hi Tom Jazz Hi Tom TR606 Hi...
  • Page 37 Percussion settings Prg.- Standard Rock (PC1) Pop (PC2) Funk (PC3) Brush (PC4) Jazz (PC5) 606 (PC6) DJ (PC7) (PC0) Claves Hi Wood Block Low Wood Block Mute Cuica Open Cuica Mute Tri‐ angle Open Tri‐ angle Shaker Jingle Bell Belltree Castanets Mute Surdo Open Surdo...

  • Page 38: Midi Implementation Chart

    MIDI implementation chart MIDI implementation chart Function Transmitted Received Remarks Basic Channel Default ch 10 1-16 Changed Mode Default Messages Altered ******** ******** Note Number True voice 0~127 0~127 ******** 0~127 Velocity Note Note ON Yes (99H, V: 0~127) Note OFF Yes (99H, V: 0) After Touch Keys...
  • Page 39 MIDI implementation chart Function Transmitted Received Remarks Program Change System Exclusive System Common Song Position Song Select Tune System Clock Real Time Commands Aux Messages Local ON/OFF* ALL Notes OFF Active Sensing System Reset Table note 1 Reverb program vv = 00H to 07H (default 04H) –...

  • Page 40: Cleaning

    Cleaning Cleaning Components Clean the accessible parts of the device regularly. The frequency of cleaning depends on the operating environment: moist, smoky or particularly dirty environments may cause a higher accumulation of dirt on the components of the device. Use a dry soft cloth for cleaning. Remove stubborn stains with a slightly damp cloth.

  • Page 41: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 42 Notes e-drum set...
  • Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
