Instruction Manual Supplement

D104172X012

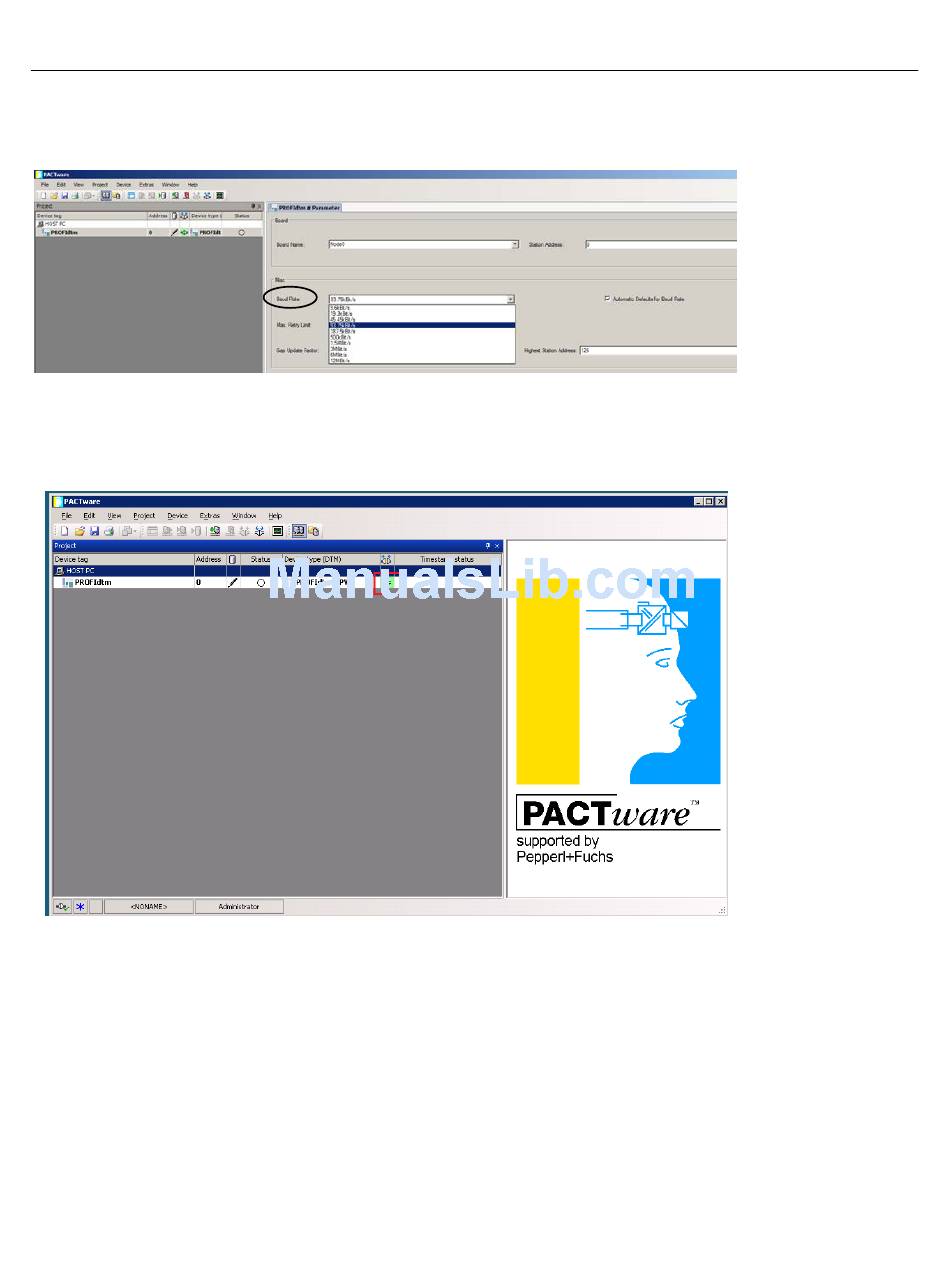

6. Select Parameter from the drop down menu (see previous page) and enter the Baud Rate. Enter 93.75 k Bit/s for the

P&F Coupler and 45.45 k Bit/s for the Siemens Coupler.

7. The PROFIBUS communication DTM is now connected, as confirmed by the green connection status icon (shown in

the figure below).

DVC6200p Digital Valve Controller

November 2017
