Introduction

®
The AXIMA 2000 or AXIMA 4000 multi-axis controller from Control Techniques provides
a fully integrated solution for servo control motors. It also provides a simple operator
interface, machine I/O and host communications in one unit. Housed in an industrial hardened
chassis, AXIMA 2000/4000 controller combines digital servo control and 41 optically
isolated I/O lines to create a powerful tool for solving motion control applications that require
coordinated control of up to four axes.

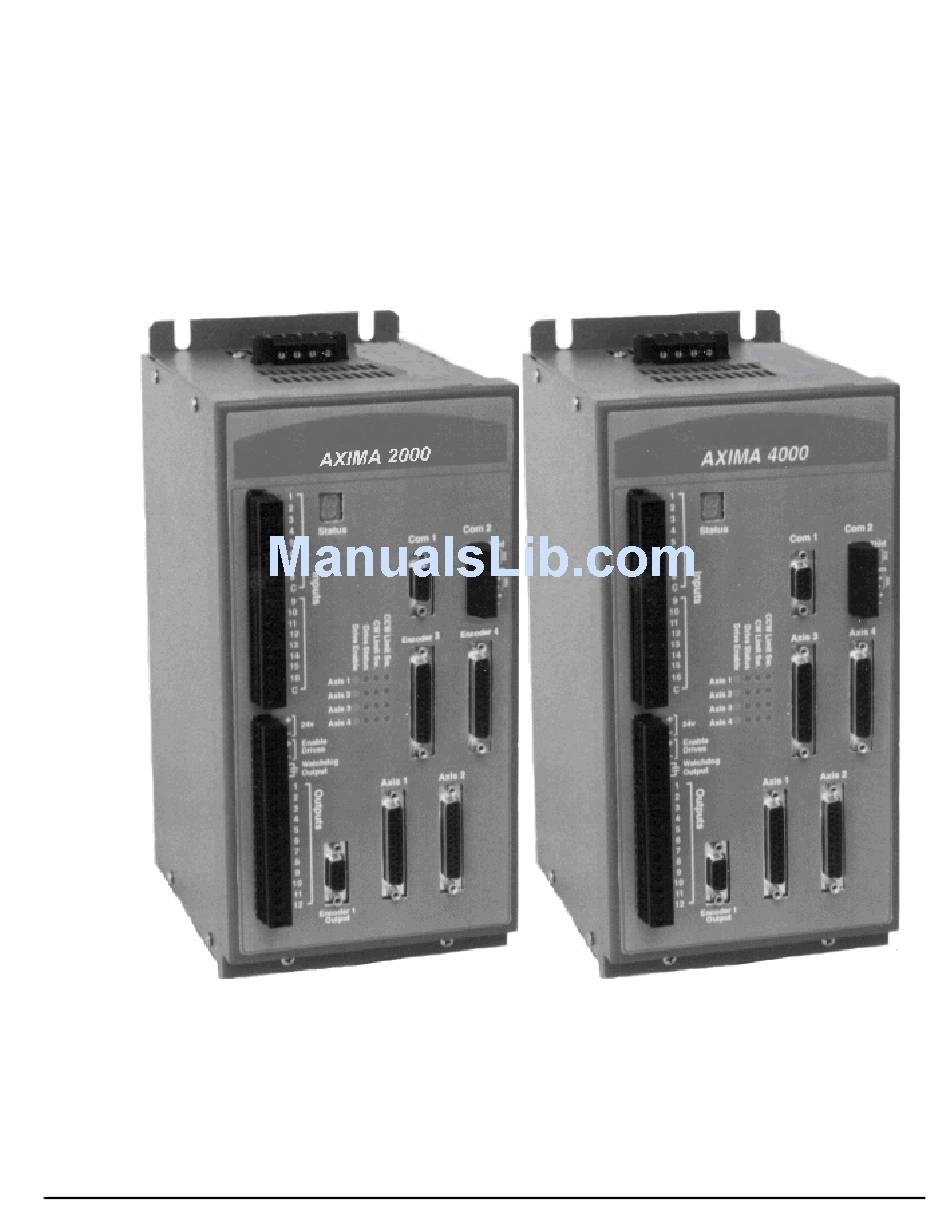

Figure 1: AXIMA 2000 and 4000 Multi-Axis Controllers
The AXIMA 2000/4000 controller uses a 32-bit floating point Digital Signal Processor
(DSP). The DSP gives the AXIMA 2000/4000 controller the processing power, flexibility and
functionality to handle the wide range of multi-axis applications found in plant automation
and industrial machinery.
