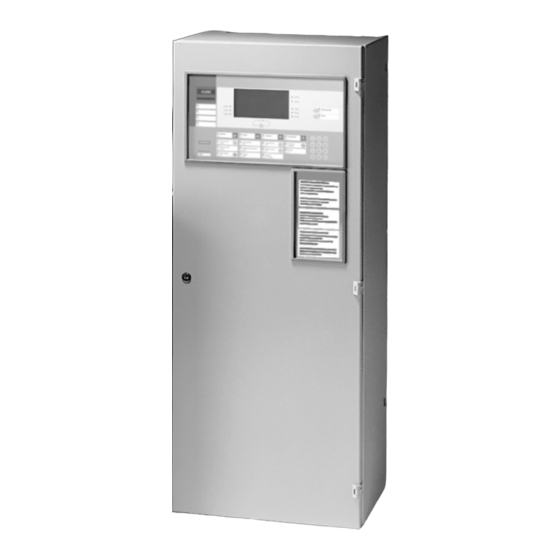

CS1140
Fire detection system
EP7F
Modular, microprocessor-controlled fire detection system
16 different station types freely combinable on a loop-wired system network
User-friendly comfort terminal for guided system operation
Most flexible parameterization possibilities for almost any application
Highest system availability through decentralized signal evaluation in control
units and detectors
Integrated emergency operation functionality
Number of detection points widely scalable up to >2000 detectors per panel
Processes the signals from widely varying detection systems such as:
– FD20 devices, series Sinteso
– interactive and wireless fire detectors, series DS1150
– AnalogPLUS fire detectors, series DS1130
– collective fire detectors, series DS1100
– addressable and collective fire detectors, legacy series MS9, MS7, MS6
Designed for optimum installation and commissioning efficiency
Large number of options to cover applications like I/Os, sounders, networking
to management system, VdS, extinguishing, pager system etc.
Additional indication and operation devices like LED indicators, synoptic
panels, text-oriented floor repeater terminals, fire brigade terminals
Remote access/maintenance possibility
TM
Building Technologies
AlgoRex
CPS Fire Safety

Advertisement

loading

  Related Manuals for Siemens CS1140

  Summary of Contents for Siemens CS1140

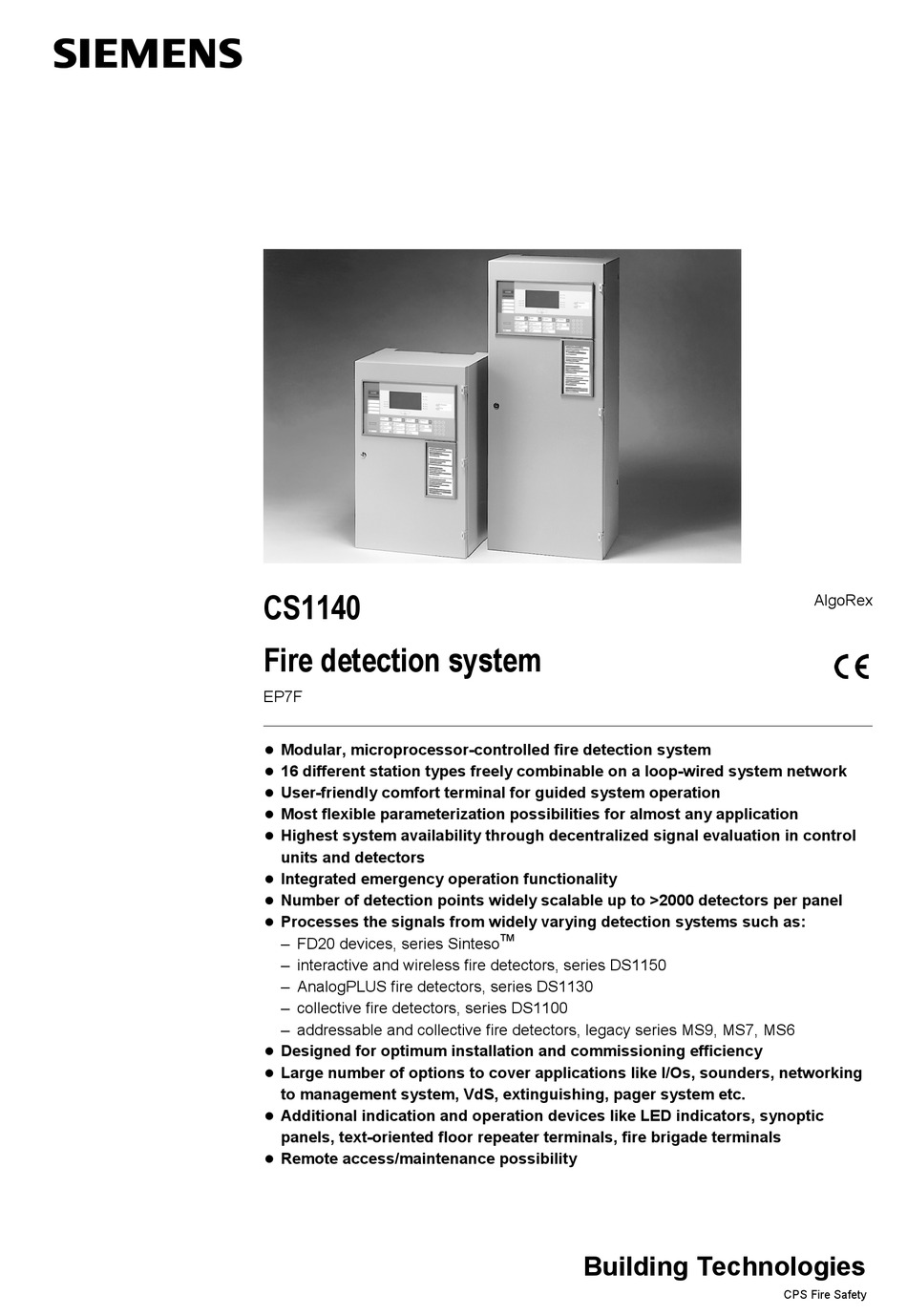

  • Page 1 CS1140 AlgoRex Fire detection system EP7F Modular, microprocessor-controlled fire detection system  16 different station types freely combinable on a loop-wired system network  User-friendly comfort terminal for guided system operation  Most flexible parameterization possibilities for almost any application ...
  • Page 2: System Overview

    System overview CERLOOP/ Parallel indicators or Danger management system Control terminals CERBAN/ISO1745 synoptic/relay (DMS/LMS) Databus Parallel indicators or Gateway synoptic/relay Detector series C-Bus Databus FD20 SintesoTM FDnet Control panel CI11/CC11 FDOOT FDCI FDCL FDCIO FDSB/FDO/FDOOT 1...4 Detector series interaktiv DS1150 Alarm devices DOTE D-Bus...
  • Page 3 Function The control unit registers signals from automatic fire detectors, manual call points and input modules via detector bus or detection line and carries out decentralized control functions via output modules. Function characteristics Detector series The control unit processes the signals from interactive, addressable, collective detector series and FD20 Sinteso devices.
  • Page 4 Detector series Series FD20 Sinteso Fire detectors with evaluation algorithms of the latest generation signal processing with ASAtechnology . Time- and process-dependent detection behavior. Highest detection reliability due to unique detector properties. Highest immunity to deceptive phenomena, resistant to environmental and deceptive influences. Detectors are equipped with mois- ture protection by default.
  • Page 5 Expansion up to a complex fire detection system The structure of the C-Bus network permits the connection of several control panels and control terminals. These stations can be mounted in the same housing or in sepa- rate housings. The location is chosen according to where it is easiest for operation or installation.
  • Page 6: Operation

    Operation There are two different series of control terminals to choose from. Mixing of standard- and comfort terminals in the same system is possible. Control terminal B3Q661/681/686 Comfort terminal Designed for especially intuitive and user-friendly opera- – tion, using double-sized LC-Display, on-screen alarm handling guidance;...
  • Page 7 Types of comfort terminals B3Q661 (Standard) B3Q681 (Nordic) B3Q686 (CH) Types of standard terminals B3Q566 (Asia/Pacific) Auxiliary equipment Cover Information Fire department Operating unit Parallel indica- H23B010 module control panel 'Extinguishing' tors (24x2 LEDs) H23B040 (CH) B3Q321 B3Q440 B3R051 Building Technologies CPS Fire Safety 04.2014...
  • Page 8 Master/Slave Master/Slave Master/Slave no Loop line Short circuit proof T-tap Siemens Switzerland Ltd © 2014 Copyright by Siemens Schweiz AG Infrastructure & Cities Sector Technical specifications and availability subject to change without notice. Building Technologies Division International Headquarters CPS Fire Safety...
