Fire Alarm System
Salwico CS4000
Service & Maintenance manual
çConsilium

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Salwico CS4000 and is the answer not in the manual?

Questions and answers

Zelalem Alemu Beyene
February 19, 2025

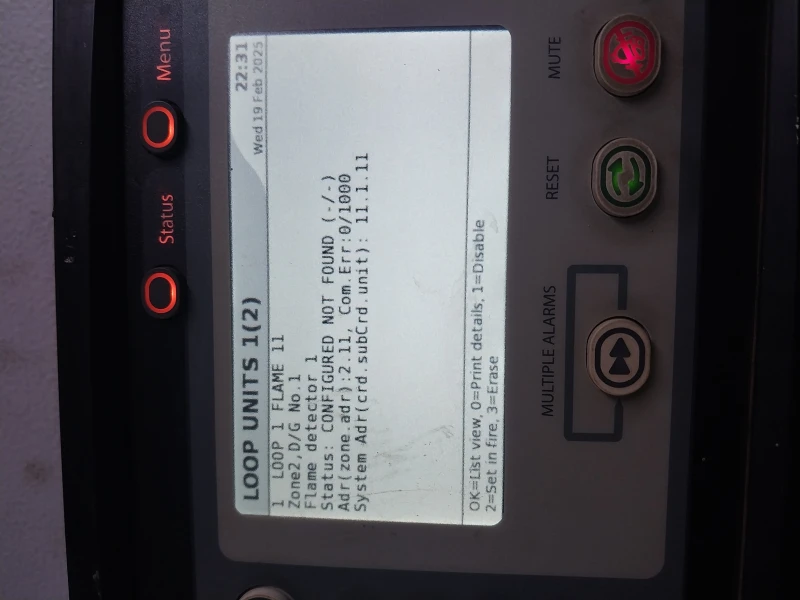

Flame Detector with lack dip switch configured not found. How to configure it on the the consilium Alarm Control Panel, please? See the message on the attached picture. Thank alot
