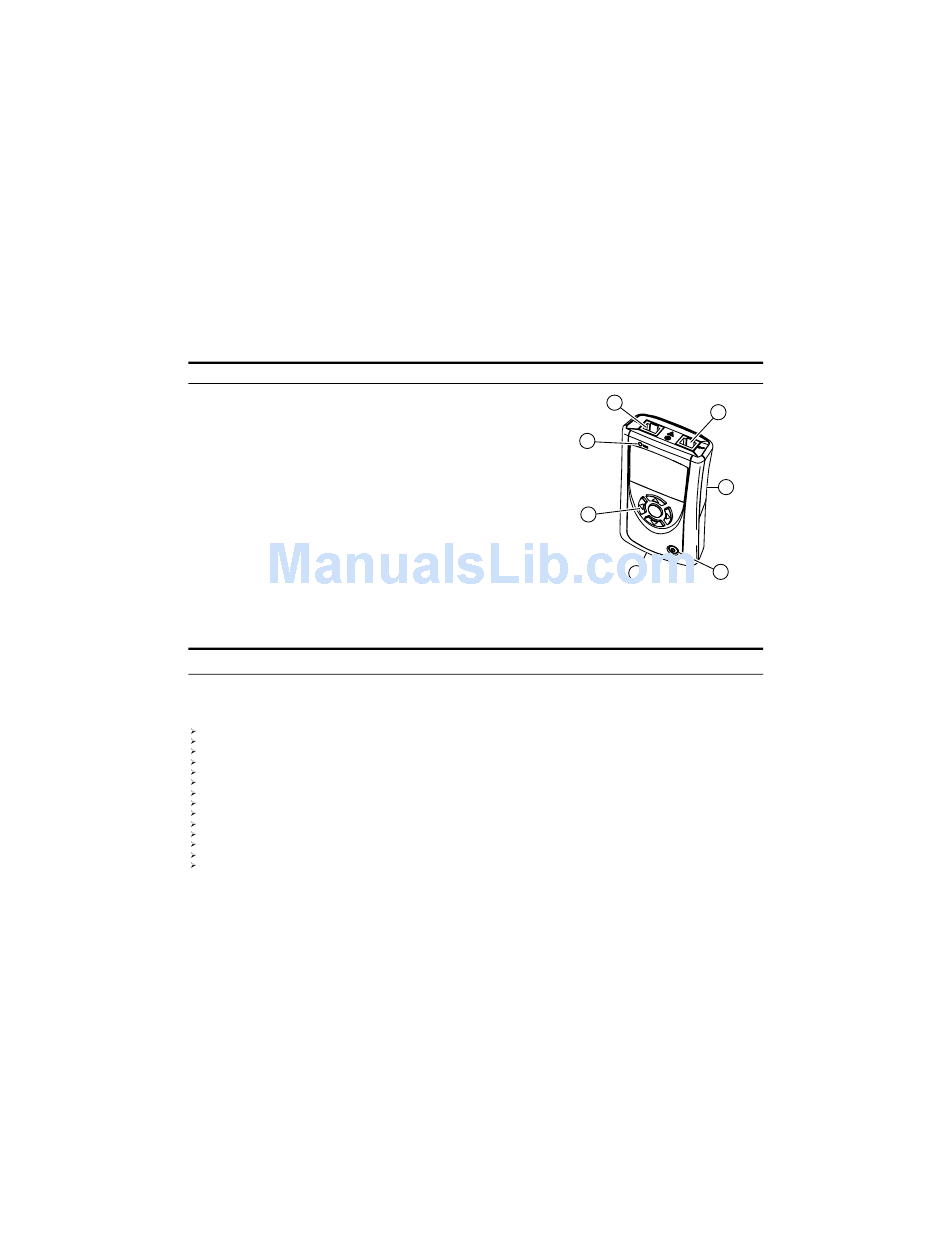

External Features - Connections, Buttons, and the LED

RJ-45 LAN port
1.
RJ-45 MAP port (cable testing)
2.
3. Power Button
Power off – press and hold
Backlight – press once briefly
USB port
4.
Selection buttons
5.
- Up/Down arrows navigate the selections and adjust values
- Left/Right arrows show additional information and choices
- Select center button to edit a selection or toggle a value
Link indicator LED
6.
Kensington lock (location on back of LinkRunner Pro)
7.
Note: To calibrate the wire map function, use a short patch cable and connect it
between the LAN (1) and MAP (2) port connectors on the top of the LinkRunner.
Press and hold the left arrow selection button and turn on the LinkRunner.
Count on LinkRunner Pro for Answers!
First connect an RJ-45 cable from the network hub or wall plate to the LinkRunner Pro LAN port. Check the following
list of questions and associated answers to see how LinkRunner Pro can help you get the job done.

Common Questions

Is this a good cable?
Where does this cable go?
Is this cable hooked up to anything?
Is this an active Ethernet port?
What speed/duplex is this device configured for?
Can I establish Gigabit link to the network?
Can I DHCP?
Can I see traffic from this connection?
Is the PC NIC OK?
Can I PING?
Do I have network connectivity?
What slot and port am I on?
Can I use it for throughput testing?
Can I connect to an 802.1X port?
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1
6
5
TM
- use open cable testing and a Wireview Office Locator
TM
- use toner function or Wireview Office Locator
- use Home screen
- use Home screen, check for Link and frame utilization
- use Home screen, check speed/duplex
- use Home screen, check for speed
- configure LinkRunner Pro for DHCP, check for link and PING
- use Home screen
- use Home screen, check for Link
- use PING screen
- use PING (Router, DNS, DHCP and custom list)
- use LLDP, CDP, EDP
- use Reflector screen
- use Configuration screen and LinkRunner Connect application
2
7
3
4
