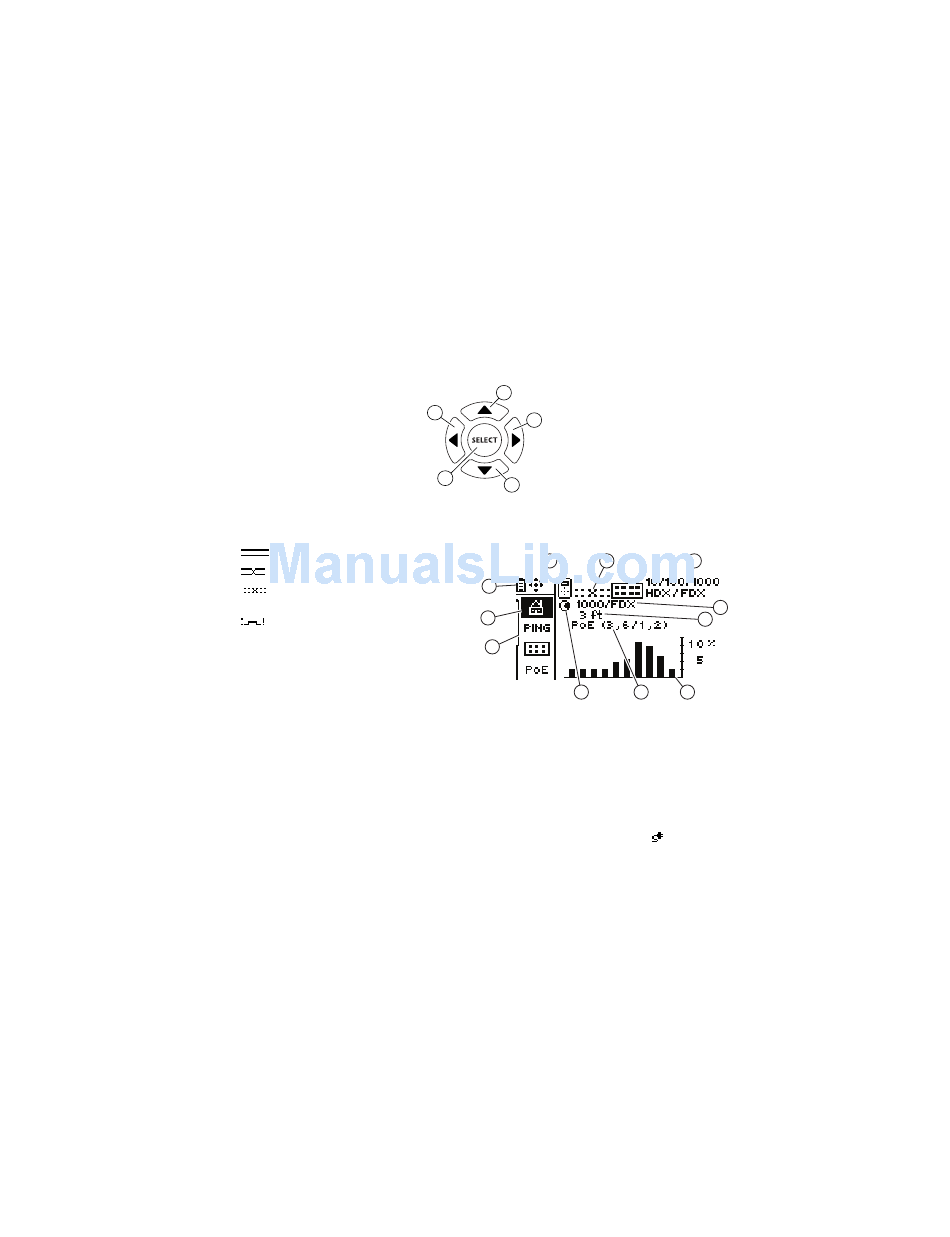

Is This An Active Ethernet Port? - Fluke LinkRunner Pro Quick Reference Manual

1. Scroll up thru the functions
2. Scroll right within a function
3. Scroll down thru the functions
4. Scroll left within a function
5. Select a function

Is this an active Ethernet port?

1. Cable/Link Status:
Straight patch
Crossover patch
Unknown patch (Auto-MDIX
port on hub or switch)
Link Level (displays when low)
2. Advertised speed/duplex
3. Actual link speed/duplex
4. Cable length from LinkRunner Pro to
cable end or device
5. Navigation arrows. Indicates which buttons are active.
6. Highlighted function is the active function. While a function is active, you can scroll to other functions.
Press the center button to select a new function.
7. Activity indicator.
8. Network Utilization. After 10% Utilization, scale changes to 100%.
9. PoE voltage present. Wire pairs with PoE voltage show in parentheses.
10. Scroll bar. Indicates relative position on the page.
11. Battery indicator. Shows voltage level as low, medium, or high. The AC adapter icon
the AC adapter (part of the optional LI-ion battery pack) is being used.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1
4
2
5
3
5 1
11
6
10
7
2
3
4
9 8
will be displayed if
