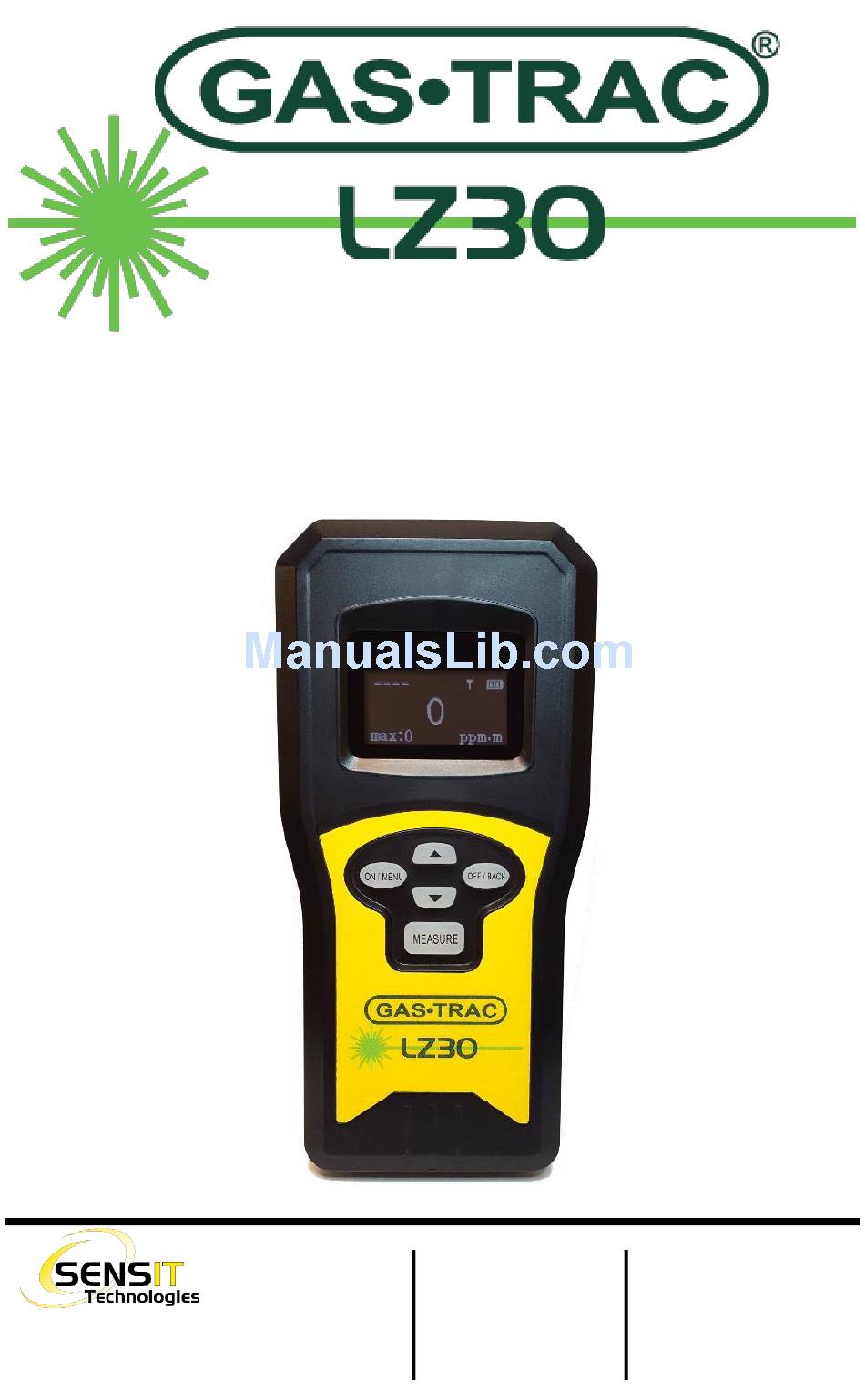

- Page 1 NSTRUCTION ANUAL 851 Transport Drive Phone: 888 4SENSIT SENSIT Technologies Valparaiso, IN 46383-8432 888 473 6748 is in compliance with 219 465 2700 ISO 9001:2008 Fax: 219 465 2701 www.gasleaksensors.com...
-
Page 2: For Your Safety
WARNING : Follow the manual instructions and testing methods. WARNING : Continuously low calibration check results may indicate sensor end of life or failure. Consult SENSIT Technologies with any questions. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. -
Page 3: Laser Warning Label Location
FOR YOUR SAFETY CAUTION : Laser radiation. Avoid direct eye exposure. Class 3R laser product. ASER ARNING ABEL OCATION The laser warning label is located on the back of the instrument. Refer to the label pictured in the lower right for details. ASER PERTURES Page | 3... -
Page 4: Table Of Contents
CONTENTS For Your Safety ....................2 Laser Warning Label Location ................. 3 Contents ......................4 Parts And Accessories ..................6 Standard Accessories (Included) ................6 Accessories And Replacement Parts ..............6 General Description ..................7 Specifications ....................8 Product Features ................... 10 Beam Dimensions .................... - Page 5 User Menu ..................... 24 Calibration ......................25 Bluetooth ID ......................25 Set Alarm ....................... 25 Set Red Laser ....................... 26 Set Green Laser ....................26 Set Unit ........................27 Reset ........................28 Maintenance and Care .................. 29 Notes ......................30 Warranty ......................
-
Page 6: Parts And Accessories
PARTS AND ACCESSORIES TANDARD CCESSORIES NCLUDED 330-00049 D-ring 360-00040 Wrist Strap 750-00080 Instruction Manual 871-00064 Charging Kit (charging base + power supply) 872-00034 Hard Carrying Case 882-00150-SN Calibration/Bump Test Cell CCESSORIES EPLACEMENT ARTS 331-00155 Screw for D-ring 871-00062 Charging Base 871-00063 Charging Base Power Supply Page | 6... -
Page 7: General Description

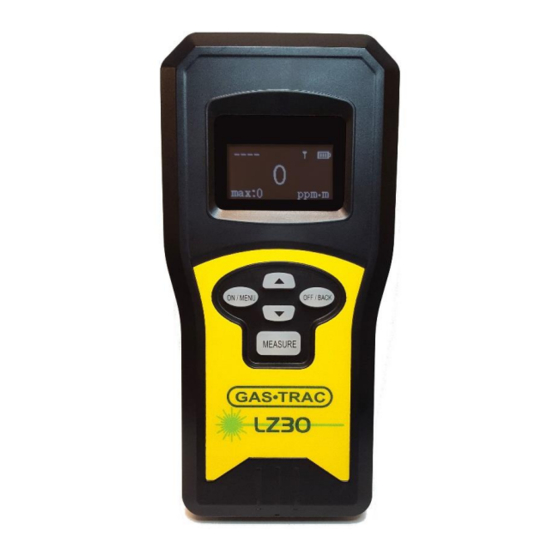

GENERAL DESCRIPTION The G •T LZ-30 is a methane selective, laser-based gas detector. The device is based on world-leading photonic technology and is designed using the effect that methane gas absorbs a certain laser wavelength, and the absorbing strength is related to the concentration of the methane. The device is a handheld gas detector, for the remote detection of methane and gases containing methane (natural gas and naturally occurring sources of methane). -
Page 8: Specifications
SPECIFICATIONS Tunable Diode Laser Absorption Spectroscopy Detection Technology: (TDLAS) Methane Detection Range: 0-50,000ppm•m in 1ppm•m increments 5ppm•m ≤15m (50ft)/10ppm•m ≤30m (100ft) Sensitivity: @ ≥ 300ppm•m ≤0.1 seconds Response Time: 0.5m to 30m (1.5’ to 100’) Detection Distance: Distance may vary slightly depending on reflection 0.2m to 30m (6”... - Page 9 SPECIFICATIONS Operational Temp: -20C to 50C (-4F to 122F) Storage Temp: -40C to 60C (-40F to 140F) ≤98% non-condensing Humidity: Enclosure: Designed to meet IP54 Intrinsic Safety: Designed to meet US and ATEX Weight: 300g (0.7lbs) 164mm (6.5”) x 78mm (3.0”) x 36mm (1.5”) Size: Power Source: Internal Lithium Ion, 2000mAh...
-
Page 10: Product Features
PRODUCT FEATURES •T LZ-30 instruments are constructed of durable flame-retardant polycarbonate plastic to withstand the rigors of field use. The housing contains a rechargeable Lithium Ion battery, which is charged by inserting the instrument into the charging base. Open-path TDLAS technology ensures that gas detection is instantaneous, accurate, and methane specific –... -
Page 11: Beam Dimensions
PRODUCT FEATURES IMENSIONS The G •T LZ-30 produces a conical beam of laser light, that starts from the front of the instrument and gradually spreads as the distance increases. At the maximum detection distance, 30m, this beam is 8” in diameter. This is depicted in the image below (not to scale). -
Page 12: Sensor Technology
SENSOR TECHNOLOGY ETECTION The G •T LZ-30 uses open path TDLAS (tunable diode laser absorption spectroscopy) technology. The laser generates a specific wavelength of light that is sent through the gas monitoring area, partially absorbed by any methane source, and reflected back to the instrument by the reflection surface. -
Page 13: Explanation Of Ppm•M
EXPLANATION OF PPM•M The G •T LZ-30 displays its readings in parts per million meter (PPM•M). This is a representation of the average gas concentration over 1 meter, or roughly 3.3 feet. The detection laser of the G •T LZ-30 measures the amount of light absorbed by a concentration of gas. -
Page 14: Battery Charging
BATTERY CHARGING The G •T LZ-30 has an internal, rechargeable lithium-ion battery pack, and includes a recharging base. This battery is not user replaceable. To recharge the internal battery, ensure that the charging base is plugged in and insert the instrument into the base, bottom first. Contacts on the bottom of the instrument touch spring loaded pins in the bottom of the charging base to make an electrical connection. -
Page 15: Operation And Use
OPERATION AND USE : When the G •T LZ-30 is powered on, the laser WARNING module(s) will be energized. MENU 1. Press and hold the button until the screen illuminates. The software version will be displayed during a brief warmup period (~15 seconds). - Page 16 OPERATION AND USE 6. Using the visible targeting laser, survey the area according to federal, state, municipal, and/or company procedures. Observe the readings on the display and any alarm conditions that should occur. In general, it is good practice to conduct investigations using an ‘S’ or ‘Z’ pattern to maximize the area that is scanned.
-
Page 17: Operation And Use Tips
OPERATION AND USE TIPS Factors such as line of sight, wind, and sunlight conditions are not something that most operators have had to take into account in the past. This section gives a few tips and tricks for getting the most out of the G •T LZ-30. -
Page 18: Shape Of The Detection Beam And Line Of Sight
OPERATION AND USE TIPS HAPE OF THE ETECTION EAM AND INE OF IGHT Since the G •T LZ-30 uses a point of light for targeting, it can be easy to forget that the actual detection path is in the shape of a cone, which starts from a point (the instrument) and gets wider on the path to the target. - Page 19 OPERATION AND USE TIPS HAPE OF THE ETECTION EAM AND INE OF IGHT Another thing to consider is that the size of the beam can affect the reading that the instrument gives, depending on the size of the plume. Consider the picture to the right: the green colored beam is roughly the same size as the plume of gas, which means that the instrument will be...
-
Page 20: Wind Conditions And Plume Size
OPERATION AND USE TIPS ONDITIONS AND LUME Since the path of the laser has to pass through the methane plume for detection, wind conditions can greatly affect how the instrument operates. Because of this, especially when scanning a large area, it makes sense to have a plan of attack. -
Page 21: Locating Targeting Laser
OPERATION AND USE TIPS OCATING ARGETING ASER With bright sunlight, the targeting laser may be difficult for some to see. This is unfortunately a downside of any technology of this nature. There are a few things that can help with this. One thing that might help in this scenario is to begin tracking the laser from a location where you can see it clearly. -
Page 22: Calibration Check (Bump Test)
CALIBRATION CHECK (BUMP TEST) : The built-in calibration cell in the carrying case must be used for WARNING bump testing. The calibration gas in the cell is certified for 3 years (labeled on the cell), after which it is considered to be expired. Cells can be sent into SENSIT Technologies to be refilled and recertified. -
Page 23: Calibration
Advance Cal.” on the display and can take up to 5 minutes to complete. If the advanced calibration fails, a “Service Required” message will be displayed. Any instrument that cannot be successfully calibrated should be taken out of service. Please contact SENSIT Technologies for further assistance. Page | 23... -
Page 24: User Menu
USER MENU The user menu gives the user access to the calibration menu and various settings, including the alarm point and turning the indication lasers on or off. MENU To access the user menu, press and release the button from the CALIBRATION work display. -
Page 25: Calibration
USER MENU ALIBRATION WARNING : Using calibration kits other than recommended by SENSIT Technologies may cause inaccurate readings. Repairs are required if the instrument fails to calibrate. Consult the factory for details. Calibrate the instrument using the built-in calibration cell in the carrying case. See the calibration section in this manual for instructions on how calibrate the instrument. -
Page 26: Set Red Laser
USER MENU ASER Password protected. Toggles whether the distance measurement (red) laser is on or off during measurement. Unlike the green laser, turning this off will turn off the distance DOWN ARROW measurement. Use the buttons to change between MEASURE . -
Page 27: Set Unit
USER MENU Password protected. Changes the display unit used during measurement (PPM•M / %LEL•M / %VOL•M). Use the DOWN ARROW buttons to adjust. Press and MEASURE release the button to save the setting and return to the work display. This setting affects the units used both for display and for the alarm point. MENU To discard any changes you have made, press and release the BACK... -
Page 28: Reset
USER MENU LARM Password protected. Allows the user to choose between having a “2 tier” or “3 tier” alarm system. By default, and when this setting is , there will only be two stages to the alarm: 50% and 100% of the threshold. When the setting is , there will be three stages to the alarm: 20%, 50%, and 100% of the threshold. -
Page 29: Maintenance And Care
Do not point the instrument at the sun, as this could damage the optics or the laser modules. Only use the wall transformer supplied by SENSIT Technologies for use with the charging base. Using other transformers may damage the base or the instrument. -
Page 30: Notes
NOTES Page | 30... - Page 31 NOTES Page | 31...
-
Page 32: Warranty
Service Dept. for warranty or repair. This warranty gives you specific legal rights and you may have other rights which vary from state to state. SENSIT Technologies 851 Transport Drive Valparaiso, IN 46383...
