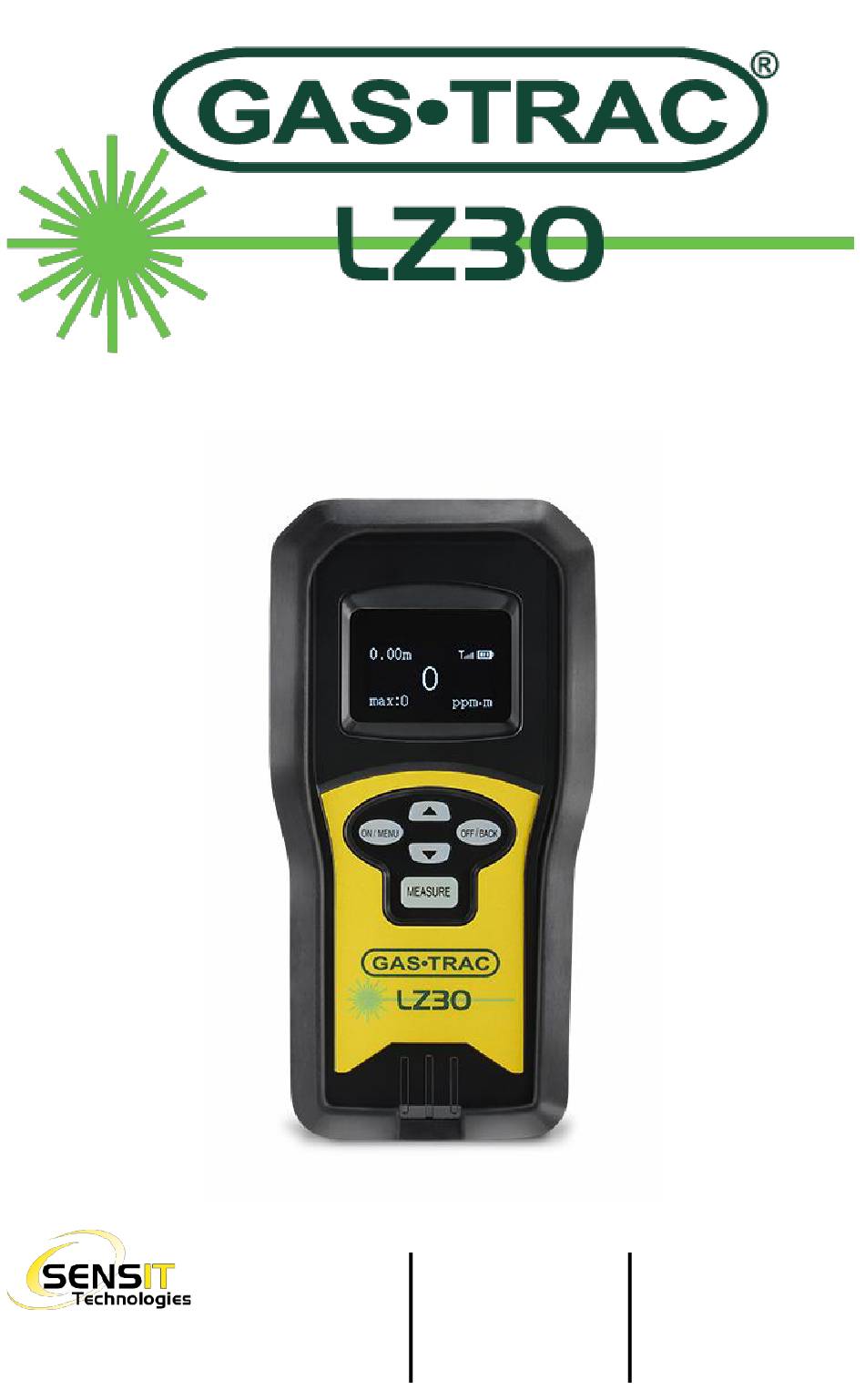

- Page 1 NSTRUCTION ANUAL 851 Transport Drive Phone: 888 4SENSIT SENSIT Technologies Valparaiso, IN 46383-8432 888 473 6748 is in compliance with 219 465 2700 ISO 9001:2008 Fax: 219 465 2701 www.gasleaksensors.com...
-
Page 2: For Your Safety
WARNING Follow the manual instructions and testing methods. WARNING Continuously low calibration check results may indicate sensor end of life or failure. Consult SENSIT Technologies with any questions. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. -
Page 3: Laser Warning Label Location
FOR YOUR SAFETY CAUTION Laser radiation. Avoid direct eye exposure. Class 3R laser product. ASER ARNING ABEL OCATION The laser warning label is located on the back of the instrument. Refer to the label pictured in the lower right for details. LASER APERTURES... -
Page 4: Table Of Contents
CONTENTS For Your Safety ....................2 Laser Warning Label Location ................. 3 Contents ......................4 Parts And Accessories ..................6 Standard Accessories (Included) ................6 Accessories And Replacement Parts ..............6 General Description ..................7 Specifications ....................8 Product Features ................... 10 Beam Dimensions .................... - Page 5 Set Red Laser ....................... 27 Set Green Laser ....................27 Set Unit ........................27 Distance Units ....................... 28 3 Tier Alarm ......................28 Language ......................29 Reset ........................29 Smart-Link Live Setup (Firmware 4.1 or newer) ........... 30 Maintenance and Care .................. 32 Notes ......................
-
Page 6: Parts And Accessories
PARTS AND ACCESSORIES TANDARD CCESSORIES NCLUDED 330-00049 D-ring 331-00155 D-ring screw 360-00040 Wrist Strap 750-00080 Instruction Manual (English) French German Italian Polish Spanish 870-00098 Shock Protective Boot 871-00074 Charging Kit (charging base + power supply, for units with shock protective boot) 872-00035 Hard Carrying Case (for units with shock protective boot) 882-00150-SN... -
Page 7: General Description
GENERAL DESCRIPTION GAS•TRAC LZ-30 is a methane selective, laser-based gas detector. The device is based on world-leading photonic technology and is designed using the effect that methane gas absorbs a certain laser wavelength, and the absorbing strength is related to the concentration of the methane. The device is a handheld gas detector, for the remote detection of methane and gases containing methane (natural gas and naturally occurring sources of methane). -
Page 8: Specifications
SPECIFICATIONS Tunable Diode Laser Absorption Spectroscopy Detection Technology: (TDLAS) Methane Detection Range: 0-50,000ppm•m in 1ppm•m increments 5ppm•m ≤15m (50ft)/10ppm•m ≤30m (100ft) Sensitivity: @ ≥ 300ppm•m ≤0.1 seconds Response Time: 0.5m to 30m (1.5’ to 100’) Detection Distance: Distance may vary slightly depending on reflection 0.2m to 30m (6”... - Page 9 SPECIFICATIONS Operational Temp: -20C to 50C (-4F to 122F) Storage Temp: -40C to 60C (-40F to 140F) ≤98% non-condensing Humidity: Enclosure: Designed to meet IP54 Intrinsic Safety: Designed to meet US and ATEX Weight: 300g (0.7lbs) 164mm (6.5”) x 78mm (3.0”) x 36mm (1.5”) Size: Power Source: Internal Lithium Ion, 2000mAh...
-
Page 10: Product Features
PRODUCT FEATURES GAS•TRAC LZ-30 instruments are constructed of durable flame-retardant polycarbonate plastic to withstand the rigors of field use. The housing contains a rechargeable Lithium Ion battery, which is charged by inserting the instrument into the charging base. Open-path TDLAS technology ensures that gas detection is instantaneous, accurate, and methane specific –... -
Page 11: Beam Dimensions
PRODUCT FEATURES IMENSIONS GAS•TRAC LZ-30 produces a conical beam of laser light, that starts from the front of the instrument and gradually spreads as the distance increases. At the maximum detection distance, 30m, this beam is 8” in diameter. This is depicted in the image below (not to scale). -
Page 12: Smart-Link Live (Paid Option)
SENSIT Technologies to obtain licensing for your instrument. Then, search “Smart-Link Live” on the Google Play store, select the app, and hit “Install”. The app is free to install but will not work with your instrument unless you obtain licensing from SENSIT Technologies, after the 30 day free trial. -
Page 13: Sensor Technology
SENSOR TECHNOLOGY ETECTION GAS•TRAC LZ-30 uses open path TDLAS (tunable diode laser absorption spectroscopy) technology. The laser generates a specific wavelength of light that is sent through the gas monitoring area, partially absorbed by any methane source, and reflected back to the instrument by the reflection surface. The higher the methane concentration, the larger the absorption will be, resulting in a higher reading. -
Page 14: Explanation Of Ppm•M
EXPLANATION OF PPM•M GAS•TRAC LZ-30 displays its readings in parts per million meter (ppm•m). This is a representation of the average gas concentration over 1 meter, or roughly 3.3 feet. GAS•TRAC LZ-30 The detection laser of the measures the amount of light absorbed by a concentration of gas. -
Page 15: Battery Charging
BATTERY CHARGING GAS•TRAC LZ-30 has an internal, rechargeable lithium-ion battery pack, and includes a recharging base. This battery is not user replaceable. To recharge the internal battery, ensure that the charging base is plugged in and insert the instrument into the base, bottom first. Contacts on the bottom of the instrument touch spring loaded pins in the bottom of the charging base to make an electrical connection. -
Page 16: Operation And Use
OPERATION AND USE WARNING GAS•TRAC LZ-30 When the is powered on, the laser module(s) will be energized. ON/MENU 1. Press and hold the button until the screen illuminates. The software version will be displayed during a brief warmup period (~15 seconds). 2. - Page 17 OPERATION AND USE 6. Using the visible targeting laser, survey the area according to federal, state, municipal, and/or company procedures. Observe the readings on the display and any alarm conditions that should occur. In general, it is good practice to conduct investigations using an ‘S’ or ‘Z’ pattern to maximize the area that is scanned.
-
Page 18: Operation And Use Tips
OPERATION AND USE TIPS Factors such as line of sight, wind, and sunlight conditions are not something that most operators have had to take into account in the past. This section GAS•TRAC LZ-30 gives a few tips and tricks for getting the most out of the NOTE : Federal, state, municipal, and/or company procedures supersede what is outlined in this section. -
Page 19: Shape Of The Detection Beam And Line Of Sight
OPERATION AND USE TIPS HAPE OF THE ETECTION EAM AND INE OF IGHT GAS•TRAC LZ-30 Due to the using a point of light for targeting, it can be easy to forget that the actual detection path is in the shape of a cone, which starts from a point (the instrument) and gets wider on the path to the target. -
Page 20: Shape Of The Detection Beam And Line Of Sight
OPERATION AND USE TIPS HAPE OF THE ETECTION EAM AND INE OF IGHT Another thing to consider is that the size of the beam can affect the reading that the instrument gives, depending on the size of the plume. Consider the picture to the right: the green colored beam is roughly the same size as the plume of gas, which means that the instrument will be... -
Page 21: Wind Conditions And Plume Size
OPERATION AND USE TIPS ONDITIONS AND LUME Since the path of the laser has to pass through the methane plume for detection, wind conditions can greatly affect how the instrument operates. Because of this, especially when scanning a large area, it makes sense to have a plan of attack. -
Page 22: Locating Targeting Laser
OPERATION AND USE TIPS OCATING ARGETING ASER With bright sunlight, the targeting laser may be difficult for some to see. This is unfortunately a downside of any technology of this nature. There are a few things that can help with this. One thing that might help in this scenario is to begin tracking the laser from a location where you can see it clearly. -
Page 23: Calibration Check (Bump Test)
The calibration gas in the cell is certified for 3 years (labeled on the cell), after which it is considered to be expired. Cells can be sent into SENSIT Technologies to be refilled and recertified. GAS•TRAC LZ-30... -
Page 24: Calibration
3 years (labeled on the cell), after which it is considered to be expired. Cells can be sent into SENSIT Technologies to be refilled and recertified. Calibration is the process of setting the reading of the instrument equal to the value of the certified calibration gas inside the calibration cell. -
Page 25: User Menu
USER MENU The user menu gives the user access to the calibration menu and various settings, including the alarm point and turning the indication lasers on or off. ON/MENU To access the user menu, press and release the button from the CALIBRATION work display. -
Page 26: Calibration
USER MENU ALIBRATION WARNING : Using calibration kits other than recommended by SENSIT Technologies may cause inaccurate readings. Repairs are required if the instrument fails to calibrate. Consult the factory for details. Calibrate the instrument using the built-in calibration cell in the carrying case. See the calibration section in this manual for instructions on how calibrate the instrument. -
Page 27: Set Red Laser
USER MENU ASER Password protected. This menu toggles whether the distance measurement (red) laser is on or off during measurement. Unlike the green laser, turning this off will turn off the DOWN ARROW distance measurement. Use the buttons to change MEASURE between . -
Page 28: Distance Units
USER MENU ISTANCE NITS Password protected. This menu changes the distance unit used displayed measurement between DOWN either meters or feet ( ). Use the arrow buttons to adjust. button to save the setting. “OK” will be MEASURE Press and release the MENU displayed. -
Page 29: Language
USER MENU ANGUAGE Password protected. This menu changes the display language shown (English, Polish, Italian, DOWN ARROW French, Spanish, or Dutch). Use the buttons to MEASURE change the language. Press and release the button to save the setting. “OK” will be displayed. Press and release the ON/MENU button to OFF/BACK... -
Page 30: Smart-Link Live Setup (Firmware 4.1 Or Newer)
SMART-LINK LIVE SETUP (FIRMWARE 4.1 OR NEWER) GAS•TRAC LZ-30 SMART-LINK LIVE To connect a to the app, follow the instructions below. NOTE: To be compatible with Smart-Link Live, the LZ-30 must have firmware version 4.1 or newer (displayed on startup). 1. - Page 31 4. Hit the “Pair” button to connect to your instrument. Enter the instrument serial number in the box that pops-up (back label of instrument) and hit “OK”. 5. The app will search for your location (to enable GPS readings) and will then be ready to use.
-
Page 32: Maintenance And Care
Do not point the instrument at the sun, as this could damage the optics or the laser modules. Only use the wall transformer supplied by SENSIT Technologies for use with the charging base. Using other transformers may damage the base... -
Page 33: Notes
NOTES... - Page 34 NOTES...
-
Page 35: Requirements Under Weee Regulations
Sensit Technologies LLC has met its national obligations to the EU WEEE Directive. Sensit Technologies LLC has also elected to join WEEE Compliance Schemes in some countries to help manage customer returns at end-of-life. If you have purchased. -
Page 36: Warranty
Service Dept. for warranty or repair. This warranty gives you specific legal rights and you may have other rights which vary from state to state. SENSIT Technologies 851 Transport Drive Valparaiso, IN 46383...
