SENSIT Technologies GASTRAC LZ30 Instruction Manual
Methane gas detector
Hide thumbs
Also See for GASTRAC LZ30:
- Instruction manual (36 pages) ,
- Quick start instructions (2 pages) ,
- Instruction manual (28 pages)
Related Manuals for SENSIT Technologies GASTRAC LZ30
Summary of Contents for SENSIT Technologies GASTRAC LZ30

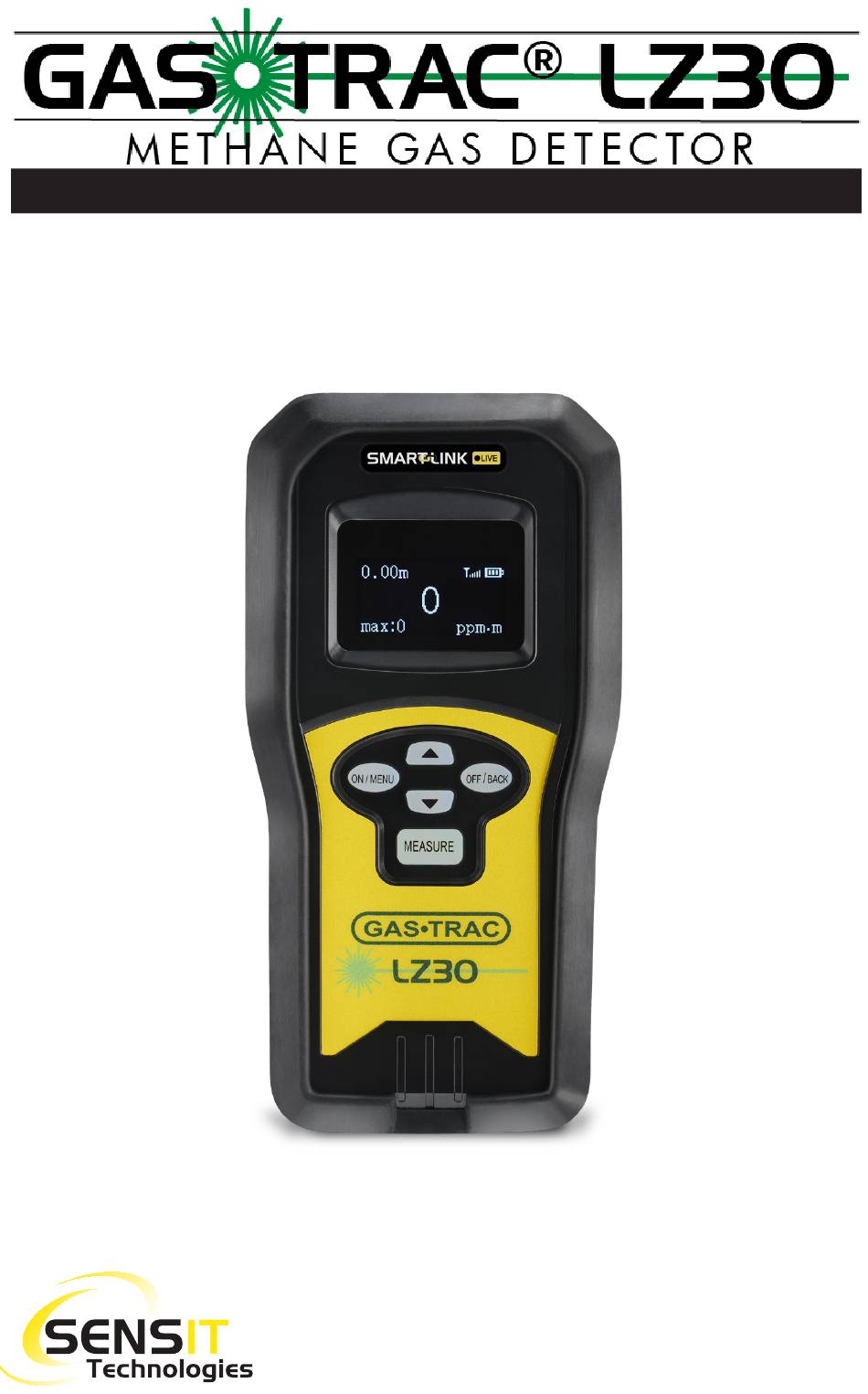

- Page 1 INSTRUCTIONAL MANUAL Read and understand instructions before use. 851 Transport Drive • Valparaiso, IN 46383 (USA) Phone: 219.465.2700 • www.gasleaksensors.com...
-
Page 2: Table Of Contents
CONTENTS FOR YOUR SAFETY ............3 PARTS AND ACCESSORIES ..........5 STANDARD ACCESSORIES (INCLUDED) ............5 ACCESSORIES AND REPLACEMENT PARTS ..........5 GENERAL DESCRIPTION ............. 6 SPECIFICATIONS ............... 7 PRODUCT FEATURES ............9 PRODUCT FEATURES ............10 BEAM DIMENSIONS ................. 10 SMART-LINK LIVE (PAID OPTION) ........ -
Page 3: For Your Safety
: Follow the manual instructions and testing methods. CAUTION ⚠ Continuously low calibration check results may indicate sensor end of life or failure. Consult SENSIT Technologies with any questions. CAUTION ⚠ Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. - Page 4 The laser warning label is located on the back of the instrument. Refer to the label pictured in the lower right for details. LASER APERTURES Warning label indicating the GasTrac LZ30 contains a class 3R laser and to avoid direct eye exposure with the laser. This symbol indicates the location of the laser aperture.
-
Page 5: Parts And Accessories
PARTS AND ACCESSORIES STANDARD ACCESSORIES (INCLUDED) 330-00049 D-ring 331-00155 D-ring screw 360-00040 Wrist Strap 750-00080 Instruction Manual (English) 750-00080-01 French 750-00080-02 German 750-00080-03 Italian 750-00080-04 Polish 750-00080-05 Spanish 870-00098 Shock Protective Boot 871-00074 Charging Kit (charging base + power supply, for units with shock protective boot) 872-00035 Hard Carrying Case (for units with shock protective boot) -
Page 6: General Description
GENERAL DESCRIPTION is a methane selective, laser-based gas detector. The device is based on world- GAS•TRAC LZ-30 leading photonic technology and is designed using the effect that methane gas absorbs a certain laser wavelength, and the absorbing strength is related to the concentration of the methane. The device is a handheld gas detector, for the remote detection of methane and gases containing methane (natural gas and naturally occurring sources of methane). -
Page 7: Specifications
SPECIFICATIONS Tunable Diode Laser Absorption Spectroscopy (TDLAS) DETECTION TECHNOLOGY 0-50,000ppm•m in 1ppm•m increments METHANE DETECTION RANGE 5ppm•m ≤15m (50ft)/10ppm•m ≤30m (100ft) @ ≥ SENSITIVITY 300ppm•m ≤0.1 seconds RESPONSE TIME 0.5m to 30m (1.5’ to 100’) Distance may vary slightly DETECTION DISTANCE depending on reflection 0.2m to 30m (6”... - Page 8 SPECIFICATIONS -20C to 50C (-4F to 122F) OPERATIONAL TEMP -40C to 60C (-40F to 140F) STORAGE TEMP ≤98% non-condensing HUMIDITY (Indoor/Outdoor use) ENVIRONMENTAL CONDITIONS Altitude (<=2000 meters) Pollution Degree (pollution degree 4) IP64 INGRESS PROTECTION IEC/UL/CSA 61010-1 INTRINSIC SAFETY 300g (0.7lbs) WEIGHT H-6.5 x W-3.1 x D-1.4 in (164.5 x 78.8 x 35.1 mm) SIZE...
-
Page 9: Product Features
PRODUCT FEATURES instruments are constructed of durable flame-retardant polycarbonate plastic to GAS•TRAC LZ-30 withstand the rigors of field use. The housing contains a rechargeable Lithium Ion battery, which is charged by inserting the instrument into the charging base. Open-path TDLAS technology ensures that gas detection is instantaneous, accurate, and methane specific –... -
Page 10: Product Features
PRODUCT FEATURES BEAM DIMENSIONS produces a conical beam of laser light, that starts from the front of the instrument GAS•TRAC LZ-30 and gradually spreads as the distance increases. At the maximum detection distance, 30m, this beam is 8” in diameter. This is depicted in the image below (not to scale). -
Page 11: Smart-Link Live (Paid Option)
SMART-LINK LIVE (PAID OPTION) TRY IT FREE FOR 30 DAYS offers an app (currently Android only) called that can be SENSIT Technologies SMART-LINK LIVE used in conjunction with the GAS•TRAC LZ-30 . This app allows the user to continuously capture live readings from the LZ-30, along with date/time stamps and GPS coordinates. -
Page 12: Sensor Technology
SENSOR TECHNOLOGY GAS DETECTION GAS•TRAC LZ-30 uses open path TDLAS (tunable diode laser absorption spectroscopy) technology. The laser generates a specific wavelength of light that is sent through the gas monitoring area, partially absorbed by any methane source, and reflected back to the instrument by the reflection surface. The higher the methane concentration, the larger the absorption will be, resulting in a higher reading. -
Page 13: Explanation Of Ppm•M
EXPLANATION OF PPM•M displays its readings in parts per million meter (ppm•m). This is a representation GAS•TRAC LZ-30 of the average gas concentration over 1 meter, or roughly 3.3 feet. The detection laser of the GAS•TRAC LZ-30 measures the amount of light absorbed by a concentration of gas. -
Page 14: Operation And Use
OPERATION AND USE WARNING ⚠ : When the GAS•TRAC LZ-30 is powered on, the laser module(s) will be energized. 1. Press and hold the ON/MENU button until thescreen illu- minates. The software version willbe displayed during a brief warmup period(~15 seconds). 2. -
Page 15: Operation And Use Tips
OPERATION AND USE TIPS Factors such as line of sight, wind, and sunlight conditions are not something that most operators have had to take into account in the past. This section gives a few tips and tricks for getting the most out of the GAS•TRAC LZ-30 : Federal, state, municipal, and/or company procedures supersede what is outlined in this section. -
Page 16: Shape Of The Detection Beam And Line Of Sight
OPERATION AND USE TIPS SHAPE OF THE DETECTION BEAM AND LINE OF SIGHT Due to the using a point of light for targeting, it can be easy to forget that the actual GAS•TRAC LZ-30 detection path is in the shape of a cone, which starts from a point (the instrument) and gets wider on the path to the target. -
Page 17: Wind Conditions And Plume Size
OPERATION AND USE TIPS WIND CONDITIONS AND PLUME SIZE Since the path of the laser has to pass through the methane plume for detection, wind conditions can greatly affect how the instrument operates. Because of this, especially when scanning a large area, it makes sense to have a plan of attack. - Page 18 Additionally, the operator can use laser enhancement glasses. This can increase the contrast of the targeting laser, making it easier to see against certain backgrounds. Below is a view with and without these glasses.
-
Page 19: Calibration Check (Bump Test)
(labeled on the cell), after which it is considered to be expired. Cells can be sent into SENSIT Technologies to be refilled and recertified. Calibration is the process of setting the reading of the instrument equal to the value of the certified calibration gas inside the calibration cell. -
Page 20: User Menu
Please contact for further assistance. SENSIT Technologies USER MENU The user menu gives the user access to the calibration menu and various settings, including the alarm point and turning the indication lasers on or off. -
Page 21: Calibration
CALIBRATION WARNING ⚠ : Using calibration kits other than recommended by SENSIT Technologies may cause inaccurate readings. Repairs are required if the instrument fails to calibrate. Consult the factory for details. Calibrate the instrument using the built-in calibration cell in the carrying case. See the calibration section in this manual for instructions on how calibrate the instrument. -
Page 22: Set Unit
USER MENU SET UNIT Password protected. This menu changes the display unit used during measurement (PPM•M / %LEL•M / %VOL•M). This setting affects the units used both for display and for the alarm point. Use the UP and DOWN ARROW buttons to adjust. -
Page 23: Reset
USER MENU RESET Password protected. WARNING ⚠ : Use this function with caution and only if you are sure you want to restore default settings. WARNING ⚠ : Calibration must be performed after use of this function. This menu resets the settings to factory defaults. Use the button to toggle DOWN ARROW between... -
Page 24: Smart-Link Live Setup
SMART-LINK LIVE SETUP (FIRMWARE 4.1 OR NEWER) To connect a to the app, follow the instructions below. GAS•TRAC LZ-30 SMART-LINK LIVE NOTE: To be compatible with Smart-Link Live, the LZ-30 must have firmware version 4.1 or newer (displayed on startup). 1. -
Page 25: Maintenance And Care
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Only use the wall transformer supplied by for use with the charging base. Using SENSIT Technologies other transformers may damage the base or the instrument. -
Page 26: Notes
NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________... -
Page 27: Requirements Under Weee Regulations
Sensit Technologies LLC has met its national obligations to the EU WEEE Directive. Sensit Technologies LLC has also elected to join WEEE Compliance Schemes in some countries to help manage customer returns at end-of-life. -
Page 28: Warranty
Internal repair or maintenance must be completed by a authorized SENSIT Technologies technician. Violation will void warranty. Units must be returned postpaid, insured and to the attention of the Service Dept. for warranty or repair. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
