Installation Instructions
CERBERUS PYROTRONICS
Models ADB-3 and ADBI-60
Audible Bases
INTRODUCTION
Model ADB-3
The CERBERUS PYROTRONICS
standard Series 3 base combined with an audible device. All field wiring
terminates at a four position terminal block located on the back of the unit. The
ADB-3 is used only with Series 3 detectors and is powered directly from the
zone circuit. (Refer to Table 1 for compatible detector model numbers and the
related Installation Instructions.) The audible device sounds when the detector
alarms and stops sounding when the system is reset. (Refer to Figure 1, the
ADB-3 Wiring Diagram.) Only one device is guaranteed to activate per
zone. The ADB-3 is UL 268 listed and meets the UL audibility sound output of
85 decibels at 10 feet.
CAUTION:
CAUTION: Do not use looped wire under Terminal 5 of DB-3S base. Use a break
in the wire at the terminal to provide supervision of connection.
Model ADBI-60
The CERBERUS PYROTRONICS
of a standard Series 3 base combined with an audible device. All field wiring
terminates at two four-position terminal blocks located on the back of the unit.
The ADBI-60 is used with System XL3, System IXL (ICON-1), System MXL, or
System MXL-IQ detectors. (Refer to Table 1 for compatible detector model
numbers and the related Installation Instructions.) The ADBI-60 operates as
described below (Refer to Figures 2, 3, 4, 5, 6, 7, and 8).
Siemens Building Technologies, Inc.
8 Fernwood Road
Florham Park, New Jersey 07932
P/N 315-086238-5
The ADB-3 must not be used as the primary evacuation
system, but only as a supplemental device.

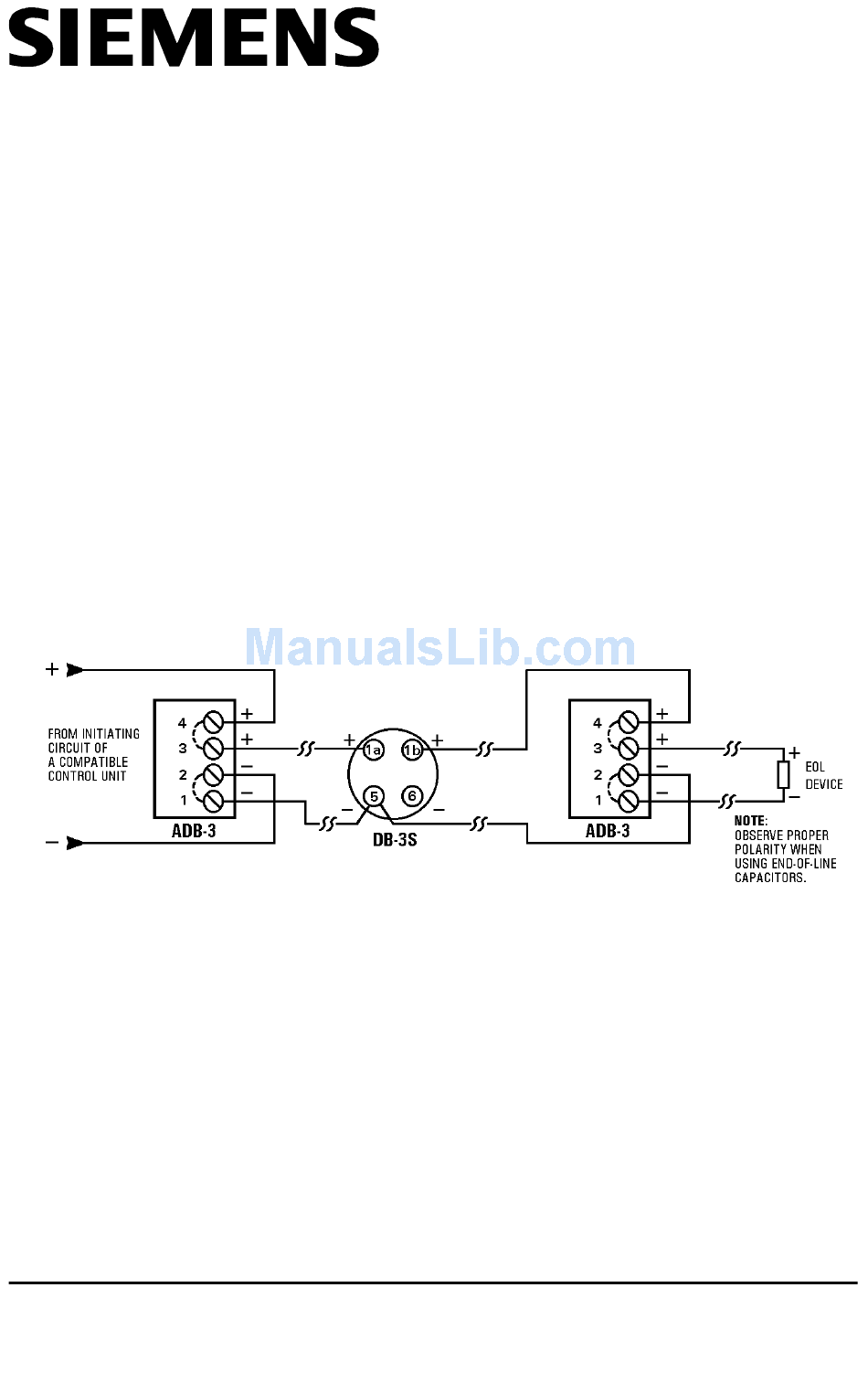

ADB-3 Installation/Wiring Diagram
TM
TM
Model ADB-3 Audible Base consists of a
Figure 1
TM
Model ADBI-60 Audible Base consists
Cerberus Division
Siemens Building Technologies, Ltd.
50 East Pearce Street
Richmond Hill, Ontario L4B 1B7 CN
Advertisement
Related Manuals for Siemens CERBERUS PYROTRONICS ADB-3
Summary of Contents for Siemens CERBERUS PYROTRONICS ADB-3
-
Page 1: Installation Instructions
System MXL-IQ detectors. (Refer to Table 1 for compatible detector model numbers and the related Installation Instructions.) The ADBI-60 operates as described below (Refer to Figures 2, 3, 4, 5, 6, 7, and 8). Siemens Building Technologies, Ltd. Siemens Building Technologies, Inc. 8 Fernwood Road... - Page 2 Figure 2 Installation/Wiring Diagram for ADBI-60 Audibles Powered by System XL3 Several different configurations can provide audible signal circuit power to the ADBI-60 at terminals 1 through 4, as shown in Figures 2, 3, 4, 5, 6, 7, and 8. During the supervisory state (no alarms), the polarity of the power to all ADBI-60s is in a reversed (off-normal) state, resulting in zero current flow to each base.
- Page 3 CAUTION: The ADBI-60 is used for primary building evacuation; NFPA 72 requires that the source of audible power be capable of operat- ing all primary evacuation audibles at the same time. ELECTRICAL RATINGS AND CONSTRAINTS Model ADB-3 Voltage Rating: On AC: 28-48 VDC peak, full wave On battery: 20-27 VDC Current: Supervisory –...
- Page 4 Figure 3 Installation/Wiring Diagram for ADBI-60 Audibles Powered by Auxiliary Power Supply with Battery Backup...
- Page 6 Figure 4 Installation/Wiring Diagram for ADBI-60 Audibles Powered by Auxiliary Power Supply (No Battery Backup)
- Page 8 Figure 5 Installation/Wiring Diagram for ADBI-60 Audibles Powered by System MXL/MXL-IQ Main Board Figure 6 Installation/Wiring Diagram for ADBI-60 Audibles Powered by System MXL/MXL-IQ CSM-4 Module...
- Page 9 Figure 7 Installation/Wiring Diagram for ADBI-60 Audibles Powered by IXL System 1. Set the CE-S address to 201 to follow the System alarm relay. 2. Only detectors attached to the ICON-1 can be used with the ADBI-60. 3. The ADBI-60 turns on when its associated detector goes into alarm.
-
Page 10: Detector Placement
4 and 6 inches from the ceiling. If questions arise regarding detector placement, it is extremely important that the drawings provided or approved by Siemens Building Technologies, Inc. or by its authorized distributors be followed! The detector placements shown on these drawings were chosen after a careful evaluation of all facets of protecting the area. -
Page 11: Detector Mounting
TABLE 1 DETECTOR INSTALLATION INSTRUCTIONS ADBI-60 Base [for MXL/MXL-IQ and IXL (ICON-1)] FP-11 w/DB-ADPT P/N 315-095921-3 FPT-11w/DB-ADPT P/N 315-095921-3 ID-60I P/N 315-090287-2 ID-60IA P/N 315-090287-2 ID-60IAH P/N 315-090287-2 ID-60IH P/N 315-090287-2 ID-60T P/N 315-090288-2 ILP-1 P/N 315-092594-3 ILP-2 P/N 315-095028-3 ILPT-1 P/N 315-092594-3 ILT-1... - Page 12 Mounting the Detector Base 1. Route all wires out from the outlet box. 2. When the alarm LED viewing is critical, position the LED mark on the base in the intended direction (Refer to Figure 9). 3. Make connections directly to the audible base terminals located on the back of the base.
