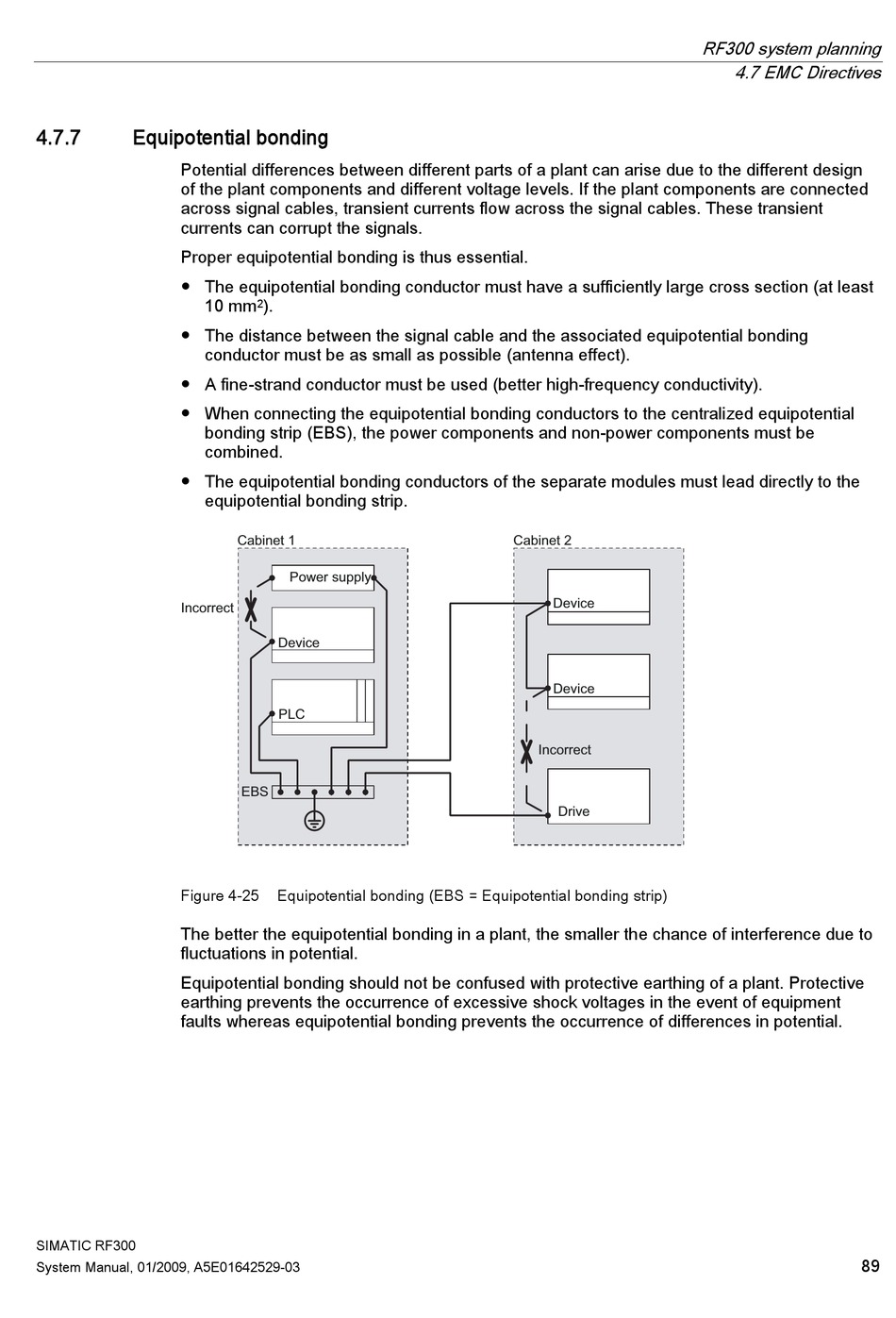

Equipotential bonding

Potential differences between different parts of a plant can arise due to the different design
of the plant components and different voltage levels. If the plant components are connected
across signal cables, transient currents flow across the signal cables. These transient
currents can corrupt the signals.
Proper equipotential bonding is thus essential.
● The equipotential bonding conductor must have a sufficiently large cross section (at least
● The distance between the signal cable and the associated equipotential bonding
● A fine-strand conductor must be used (better high-frequency conductivity).
● When connecting the equipotential bonding conductors to the centralized equipotential
● The equipotential bonding conductors of the separate modules must lead directly to the
Figure 4-25
The better the equipotential bonding in a plant, the smaller the chance of interference due to
fluctuations in potential.
Equipotential bonding should not be confused with protective earthing of a plant. Protective
earthing prevents the occurrence of excessive shock voltages in the event of equipment
faults whereas equipotential bonding prevents the occurrence of differences in potential.
SIMATIC RF300
System Manual, 01/2009, A5E01642529-03
10 mm
).
2
conductor must be as small as possible (antenna effect).
bonding strip (EBS), the power components and non-power components must be
combined.
equipotential bonding strip.
Equipotential bonding (EBS = Equipotential bonding strip)
RF300 system planning
4.7 EMC Directives
89
