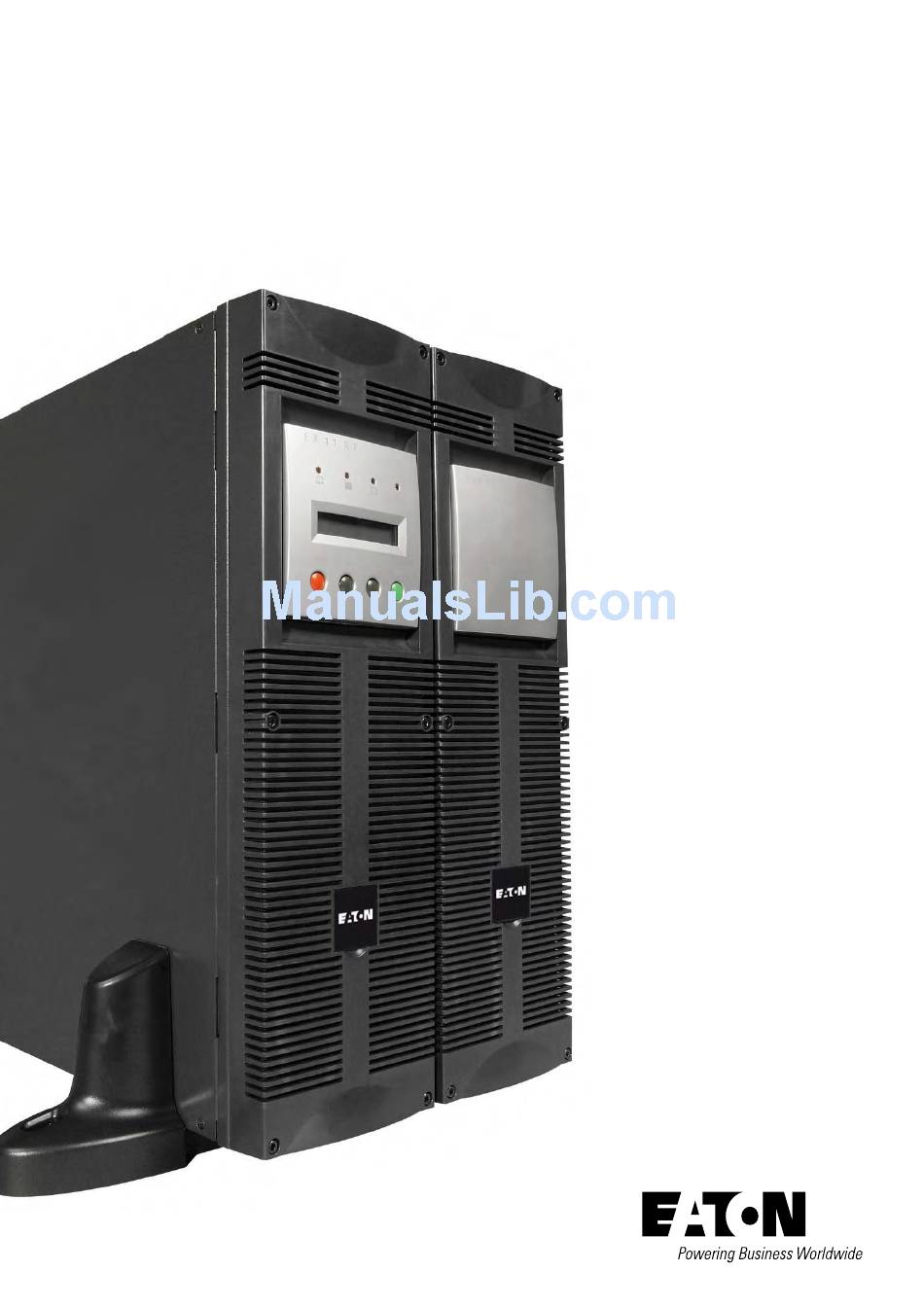

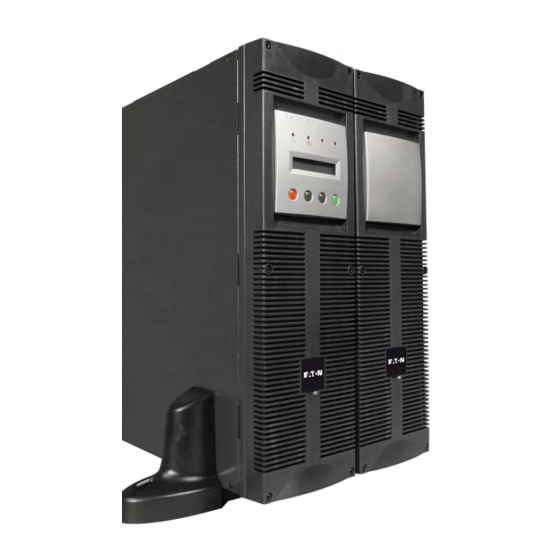

- Page 1 EX RT 5 3:1 EX RT 7 3:1 EX RT 11 3:1 Installation and user manual...
-
Page 2: Environmental Protection
If the device must be installed in overvoltage category III or IV environments, additional upstream overvoltage protection must be provided for. To discover the entire range of EATON products and the options available for the EX RT range, we invite you to visit our web site at www.eaton.com or contact your EATON representative. -
Page 3: Table Of Contents
Standard configurations ..................5 Tower configuration ....................5 Rack configuration ....................5 Rear panels ......................6 Power module EX RT 5/7/11 ..................6 Battery module EX RT EXB 7/11 ................6 Display and control panel ..................7 Options ......................7 Rack mounting kits .................... - Page 4 Contents Operation Initial start up ....................... 26 UPS personalisation ....................26 Accessing personalisation with front panel buttons ..........26 Access to the personalisation through external software ........27 Final start up sequence ..................27 Operating modes ....................28 Normal (double conversion) mode ................28 Eco mode ......................
-
Page 5: Presentation
(EX RT EXB 7/11) Power module (EX RT 5/7/11) Rack configuration Dimensions in mm/ Power module (EX RT 5/7/11) inches (H x W x D) EX RT 5 EX RT 7 EX RT 11 131 (3U) x 444 x 635... -
Page 6: Rear Panels
1. Presentation 1.2 Rear panels Power module EX RT 5/7/11 Slot for communication cards. Communication port by relays. Remote Emergency Power Off communication port (REPO). Connectors for automatic detection of battery module(s). RS232 communications port. Battery module connectors (to the UPS or to other battery modules). -
Page 7: Display And Control Panel
1. Presentation 1.3 Display and control panel Load protected LED. Operation on battery LED. E X 1 1 R T 3:1 Operation on bypass LED. Fault LED. Alphanumeric display. UPS OFF button. LOAD LEVEL Function buttons (scroll up / 4 kW / 5 kVA scroll down). -
Page 8: Transformer For Galvanic Isolation Or Earthing Arrangement Change
Example of EX RT transformer connected upstream for EX RT galvanic isolation Battery module (EX RT EXB) Power module (EX RT 5/7/11) Transformer module (EX RT) Normal AC input... -
Page 9: Battery Extensions For Ups Backup Times Up To 60 Minutes
EX RT offers a standard backup time of 5/9 minutes at full load. To increase backup time, it is possible to connect EX RT EXB 7/11 modules to the UPSs. Battery extensions for EX RT 5, EX RT 7 or EX RT 11 EX RT 5/7... -
Page 10: Modules Integration System
1. Presentation Modules integration system (Part number 68005) Modules integration system for extended backup time configurations to conveniently stack and secure up to 8 modules on the same cart (swivel Transformer module wheels with brakes, leveling feet, seismic side panels, plates to lock modules and screws included). -
Page 11: Installation
2. Installation 2.1 Unpacking and parts check Power module Battery module Two sets of tower stands. Tower stand expanders. RS232 communications cable. Battery cable. Product documentation. Battery communication cable. Telescopic rails for rack enclosure with Input/Output junction box (with 11 insulated ferrules). mounting hardware (optional, or standard Network Management card (optional, or standard in with Network Pack version). -
Page 12: Installation In Tower Configuration
2. Installation 2.2 Installation in tower configuration Use the tower stand template provided with the battery module. Follow steps 1 to 4 to adjust the tower stands for the upright position. Always keep 150 mm free space behind the UPS rear panel. The distance between the tower stands should be 450 mm. -
Page 13: Installation In Rack Configuration
2. Installation 2.3 Installation in rack configuration We recommend to mount the battery module first, then mount the power module above the battery Adjustment of the orientation of the logo and control panels Battery module rack mounting (optional rails required, part number: 68002) The battery module is very heavy. -
Page 14: Power Or Battery Module Rack Mounting (Optional Rail Required)
Follow steps 1 to 4 for rack mounting the UPS onto the rails. The rails and the necessary mounting hardware are supplied by EATON. Note for step 1: it is possible to adjust the position of both front mounting ears. - Page 15 2. Installation Rear bracket system (included with rail kits, part numbers 68001 and 68002) To be used if you need to move the rack enclosure with UPS already rack-mounted inside. Input/output junction box bracket system (included with power module rail kit, part number 68001) This bracket will maintain the Input/Output box at the rear of the rack enclosure when hot-swapping the power module.
-
Page 16: Communication Ports
The output contact port is used for basic signaling or for protection of IT systems like IBM iSeries (formerly AS400) and more. The slot is compatible with any EATON communication card (check www.eaton.com web site for the complete list of compatible cards). -
Page 17: Remote Power Off
2. Installation Remote Power Off Installation of a Remote power off function must be carried out in compliance with applicable regulations. In order to fully de-energize devices and EX RT with an RPO port, it is necessary : - To use a two-position switch (Normally Open or Closed contact should be held more than 1 second to be taken into account). -
Page 18: Installation Depending On The System Earthing Arrangement (Sea)
2. Installation 2.5 Installation depending on the system earthing arrangement (SEA) EX RT must be fed from a 3-phase source with neutral. UPS with common Normal and Bypass AC inputs Main low-voltage switchboard (MLVS) Bypass AC Normal AC load Changement de SLT entre amont et aval ou isolation galvanique requis Main Bypass AC low-voltage... -
Page 19: Ups With Separate Normal And Bypass Ac Inputs, Supplied By Separate Sources
2. Installation UPS with separate Normal and Bypass AC inputs, supplied by separate sources Bypass AC MLVS 1 load MLVS 2 Normal AC Bypass AC MLVS 1 load MLVS 2 Normal AC Change in SEA between upstream and downstream or galvanic isolation required Bypass AC MLVS 1 load... -
Page 20: Required Protective Devices And Cable Cross-Sections
2. Installation 2.6 Required protective devices and cable cross-sections Recommended upstream protection Separate AC inputs Common AC inputs power Upstream circuit-breaker Upstream circuit-breaker Upstream circuit-breaker rating Normal / Bypass AC sources Normal AC source Bypass AC source 5 kVA D curve - 40 A C curve - 32 A D curve - 40 A 7 kVA... -
Page 21: Connections Of Input/Output Power Cables
2. Installation 2.7 Connections of input/output power cables This type of connection must be carried out by qualified electrical personnel. Before carrying out any connection, check that the battery circuit breaker and that the upstream protection devices (Normal and Bypass AC sources) are open ("0"). EX RT UPS always comes from factory with Normal and Bypass AC inputs already connected together, using a bridge. -
Page 22: Ups With Separate Normal And Bypass Ac Sources
2. Installation UPS with separate Normal and Bypass AC sources 1 - Remove the terminal block cover (5 screws), 2 - Remove the bridge connected O ut pu between L2 and L1, 3 - Insert the Normal AC cable through ss In pu By pa ie r In pu... -
Page 23: Frequency Converter
2. Installation Frequency converter 1 - Remove the terminal block cover (5 screws), 2 - Remove the bridge connected between L2 and L1, O ut pu 3 - Insert the Normal AC cable through ss In pu By pa ie r In pu the cable gland, R ec tif 4 - Connect the 5 wires to the Normal... -
Page 24: Connection Of Battery Cables
2. Installation Connection of battery cables 1 - Check that the battery circuit breaker is OFF ("0" position), 2 - Connect the battery power cable to the connectors of the power and battery modules, 3 - Connect the battery detection cable to the connectors of the power and battery modules,... -
Page 25: Connection Of Cla Module
2. Installation Connection of CLA module BATTERY AC INPUT To battery AC Input Connect the battery cable (provided with the CLA module) between the power module and the CLA module. Connect the cable (provided with the CLA module) between the power module and the CLA module. Connect the battery: - cable cross-section (not provided): 10 mm², solid or stranded wire (maximum 13 mm²... -
Page 26: Operation
If specific settings are required, it is recommended to enter the UPS personnalisation mode at this stage. It is possible to enter this mode through the front panel buttons or the Personal Solution-Pac software for Windows included in the EATON Solution-Pac power management suite CD-ROM. Accessing personalisation with front panel buttons Press "scroll up"... -
Page 27: Access To The Personalisation Through External Software
(see section 1.4 "Battery extensions"). Battery deep discharge Enabled Disabled If disabled, lost of EATON protection warranty. Use EXIT key when set up is completed. These parameters are only adjustable if UPS is OFF. Access to the personalisation through external software Insert the Solution-Pac CD ROM in your CD drive. -
Page 28: Operating Modes
3. Operation 3.3 Operating modes Normal (double conversion) mode This is the standard operating mode, set by default in the factory. Two possible choices. 1 - Normal AC source available: is ON. LOAD LEVEL The load is protected by the UPS. 4 kW / 5 kVA Scroll up and scroll down... -
Page 29: Operation On Battery Power
3. Operation 3.4 Operation on battery power The load continues to be protected by the UPS when the Normal AC source is not available. Power is supplied by the battery. Transfer to battery power is ON. is ON. The audio alarm beeps every 10 seconds. The load is supplied by the battery. -
Page 30: Shut Down
3. Operation 3.6 Shut down 1 - Press the OFF button more than 3 seconds. The load is no longer protected by the UPS. It is powered via the bypass AC source. If the UPS is set in frequency converter mode, the load will not be powered. -
Page 31: Maintenance
4.1 Troubleshooting If any of LEDs is on, there is an operating anomaly or an alarm. Use "scroll up" or "scroll down" function button to reset the audible alarm. Troubleshooting not requiring EATON after-sales support: Indication Signification Correction AC source is not connected... -
Page 32: Hot-Swapping The Power Module
4. Maintenance 4.2 Hot-swapping the power module This operation can be performed without interrupting the load. Disconnecting the power module Stop the UPS with the OFF button (press more than 3 seconds). Check if UPS is on bypass AC source: is on (If led is not on, do not turn the manual bypass and call the after sales support department). -
Page 33: Reconnecting The Power Module
4. Maintenance Reconnecting the power module Secure the Input/Output junction box using the three screws. Reconnect the battery cables to the power module. Switch the battery circuit breaker(s) to the "I" position. Switch the Normal AC source circuit-breaker to the "I" position. -
Page 34: Training Center
4. Maintenance 4.4 Training Center To allow you to use EATON products effectively and carry out basic maintenance, we offer a complete range of technical training courses in English and French. For further information, please visit our website: www.eaton.com Page 34 - 34007724EN/AD... -
Page 35: Appendices
5. Appendices 5.1 Technical specifications Electrical characteristics I/T network and industrial operating modes Mode Industrial mode I/T network mode Overload, and Bypass Same as I/T network mode, but the UPS Load is transfered to Bypass AC AC source in tolerance. does not return to normal mode if overload source. - Page 36 (s) t (s) I (A) Intput fuses of Intput fuses of EX RT 11: 30 A EX RT 5: 25 A EX RT 7: 25 A I (A) Output fuses of Output fuses of EX RT 11: 100 A...
- Page 37 1.25 1.02 0.5s 120s Short-circuit current provided by the UPS in Normal or Batterie mode EX RT 5 : 110 A for 80 ms. EX RT 7 : 110 A for 80 ms. EX RT 11 : 150 A for 80 ms.
-
Page 38: Thermal Characteristics
Recharge time to recover 90% of the rated backup time after discharge at full load: Configuration for Configuration for Configuration for 2 hours backup time 4 hours backup time 8 hours backup time EX RT 5 5 hours 12 hours 20 hours EX RT 7 5 hours 12 hours...
