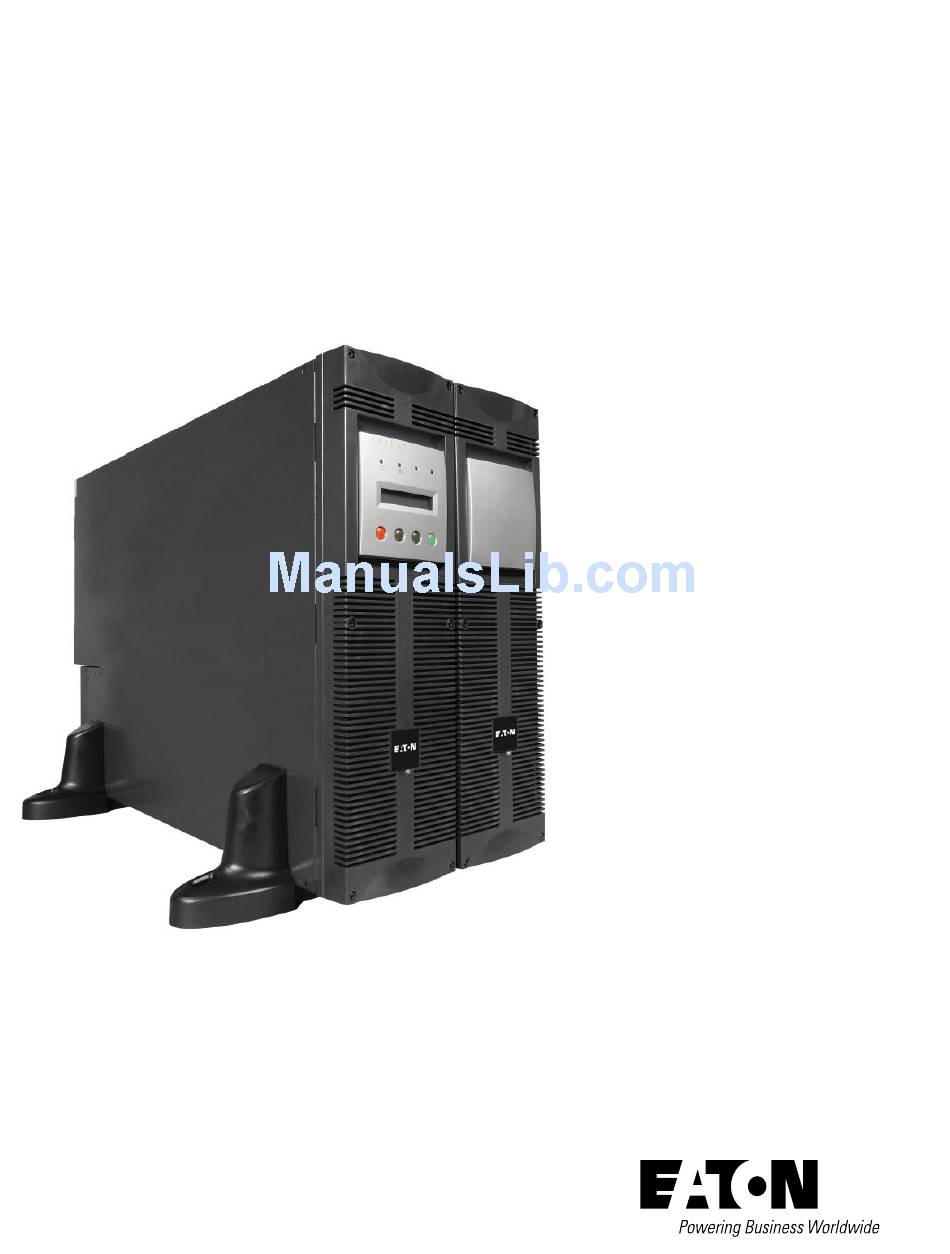

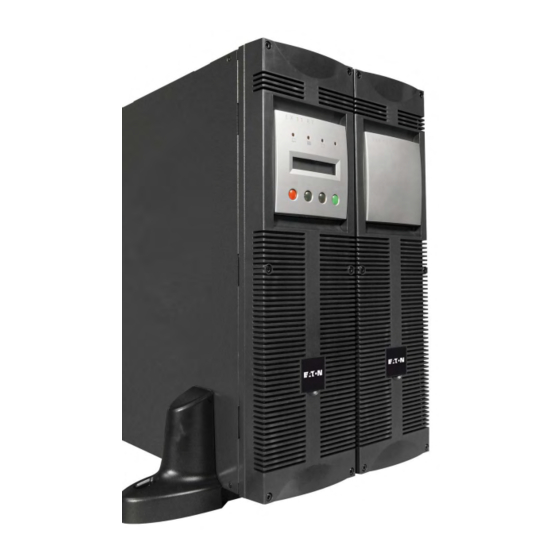

  • Page 1 . e a t o n . c o m EX RT 5/7/11 Systems Quick Start...

  • Page 3: Warranty And Product Registration

    EX RT User Manual CD ROM w w w . e a t o n . c o m EX RT 5/7/11 Systems Quick Start Rail Kit w w w . e a t o n . c o m...

  • Page 4: Step 2 Tower Configuration

    STEP 2 Tower Configuration Tower Configuration of Standard System E X B Battery Module Power Module Battery Power Module Module (up to 6) Tower Configuration with Optional Transformer Module Transformer Power Module Module Battery E X B Module Battery Module E X B (up to 6) Power Module...

  • Page 5: Step 3 Rack Kit

    STEP 3 Rack kit Power Module Rail Kit (PN 86001) Contents Front Rear Mounting Support Brackets Brackets Telescopic Rails I/O Box Brackets Battery/Transformer/CLA Module Rail Kit (PN 86002) Contents Front Rear Mounting Support Brackets Brackets Telescopic Rails 86-86000-01 B01 - Page 5...

  • Page 6: Rack Installation

    Prepare the front panel logo and LCD display for rack Layout of Modules in Rack Configuration orientation, of all modules (including transformer module, CLA charger, if equipped). 1. EX RT Transformer (Top, EX RT 5/7/11) nsf orm er EX RT Tra E X 1 1 R T 2.

  • Page 7: Step 3 Rack Configuration

    STEP 3 Rack Configuration (continued) Installation of Power Module I/O Box Bracket (this step only applies to power module) Install I/O Box Bracket to keep the I/O Box stationary while hot swapping the power module. 2. Secure large bracket to rails at 1.
  • Page 8 STEP 4 Input/Output Box and Brackets Installation Power Module I/O Box Installation I/O Box Preparation CAUTION: Always connect the earth ground wire first. Outer circle is for I/O BOX Plastic Coupling Inner circle is for Metal Coupling Terminal Block Cover OF F 1.

  • Page 9: Step 5 Systems Connections

    Bypass AC Source Output EX RT EXB 5/7/11 200/208/220/ 200/208/220/ 200/208/220/ 230/240/250Vac 230/240/250Vac 230/240/250Vac Power Module EX RT 5/7/11 Transformer Module EX RT Follow connection diagrams for appropriate input/output Terminal block capacity max. voltages. 4 AWG for 11kVA, 6 AWG for 5/7kVA...

  • Page 10: Step 6 Initial Start-Up Procedures

    The load is powered via the bypass AC source, but not protected by the UPS. Batteries are recharging, an eight-hour recharge period is necessary to get full backup time. Bypass LED is ON. Battery Module EX RT EXB 5/7/11 Power Module EX RT 5/7/11 Transformer Module EX RT Transformer Circuit Breaker Manual Bypass Switch...
  • Page 11 86-86000-01 B01 - Page 11...
