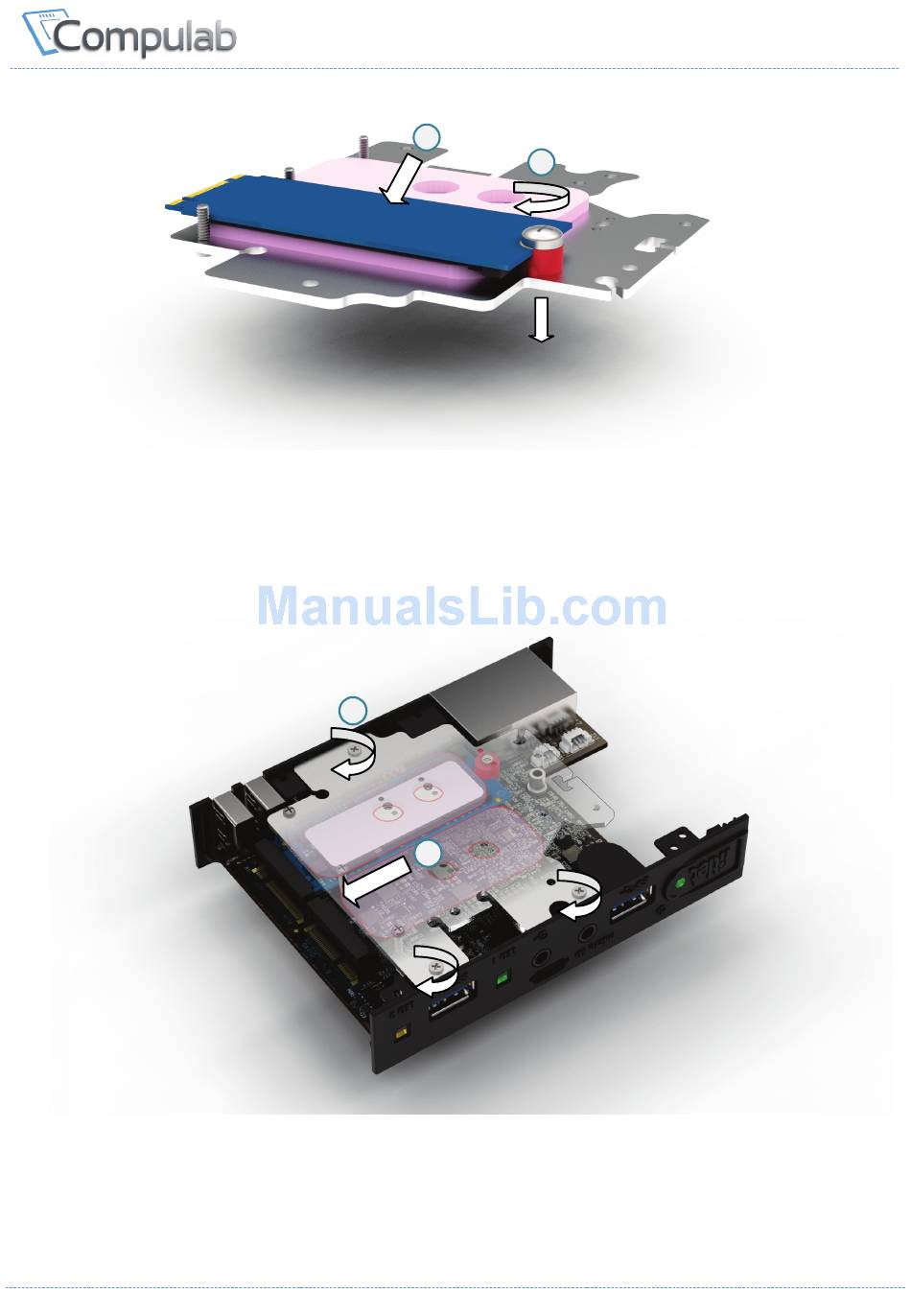

4. Place edge of M.2 SSD against the fastening screw and press the SSD firmly against the
thermal pad until its connector edge is seated between the alignment screws.
Once positioned correctly the connector edge should stick out above the edge of the M.2
cooling plate.
5. Tighten the fastening screw.
6. Turn over the M.2 cooling plate and push the M.2 SSD into its socket at the underside of the
motherboard.
7. Push down the M.2 cooling plate and tighten the 3 panel screws
